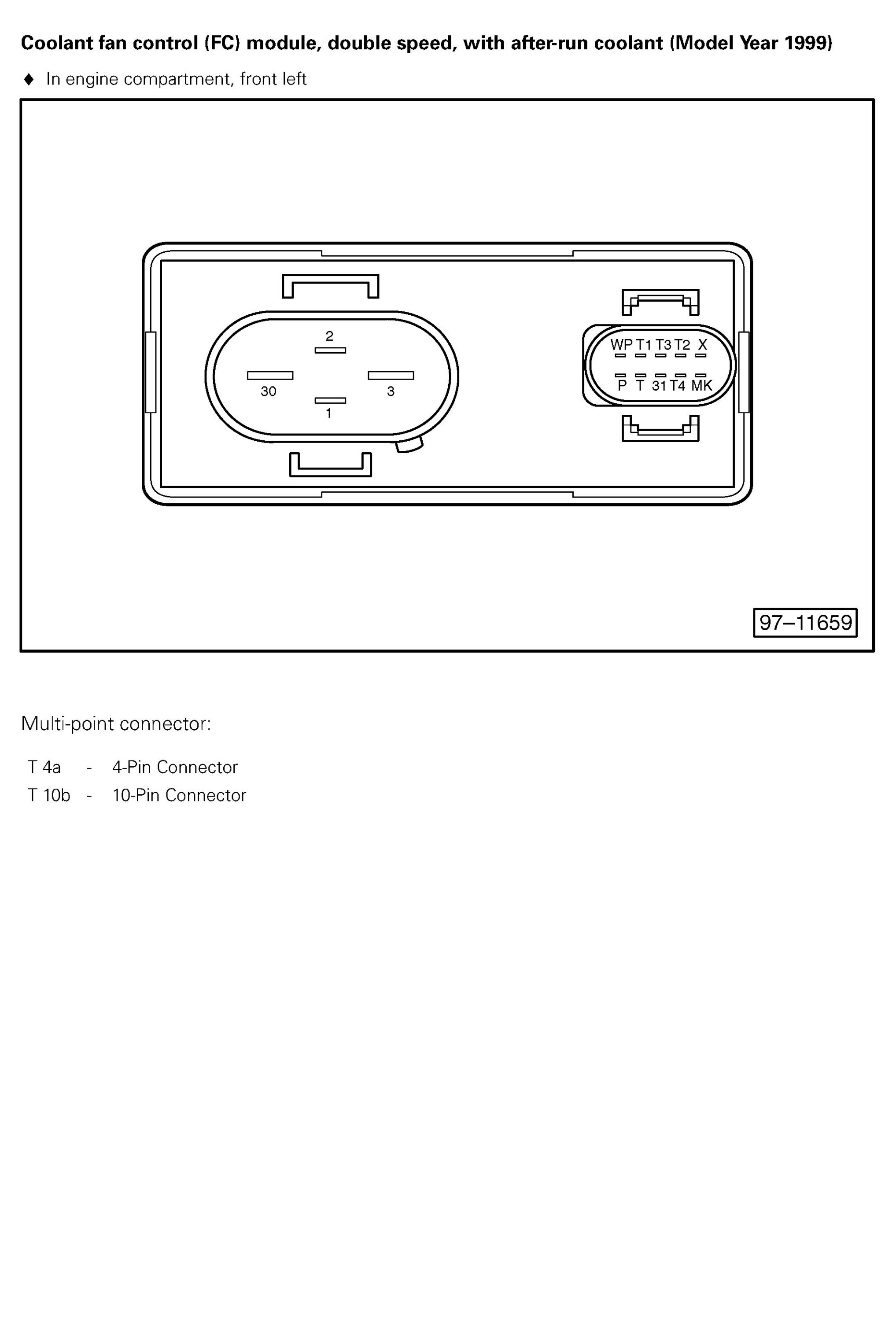

Coolant Fan Control (FC) Module, Double Speed, W/After-run Coolant (Model Year 1999):

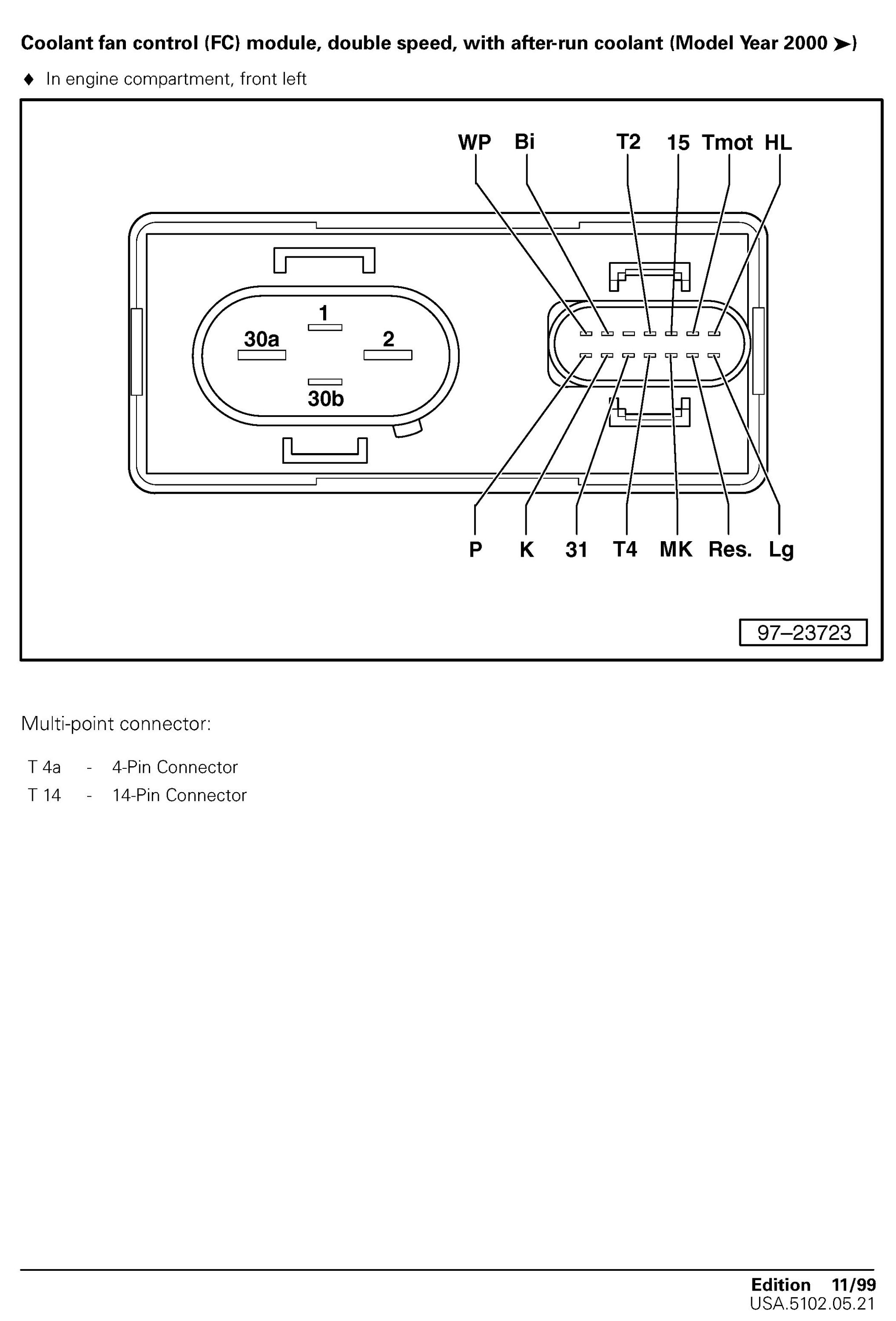

Coolant Fan Control (FC) Module, Double Speed, W/After-run Coolant (Model Year 2000->):

Control Modules - Connector Pin-out
