Diagnostic Trouble Code (DTC), memory
All functions which could previously be performed with V.A.G 1551 can also be performed with the new tester VAS 5051.

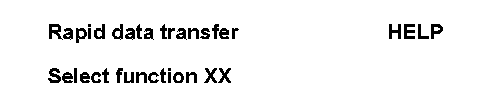

Indicated on display:
- Press keys -0- and -2-; 02 enters the "Check DTC memory" function.
Indicated on display
- Confirm entry with Q key.
The number of stored DTCs or "No DTCs recognized" appears in the display.
- Press (arrow) key.
The stored DTCs are displayed and printed out one after the other.
- With DTC information print-out eliminate malfunctions according to DTC table.

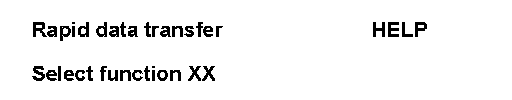

As with "No DTC recognized", the program returns to the start position after pressing the (arrow) key:
Indicated on display
- End output (Function 06).
- Switch off ignition and disconnect tester at DLC.
Work sequence if a DTC has been detected:
1 Repair according to DTC table
2 Check DTC memory (Function 02)
3 Erase DTC memory (Function 05)
4 End output (Function 06)
5 Perform a test drive
6 Check DTC memory again
