Display Group Overview

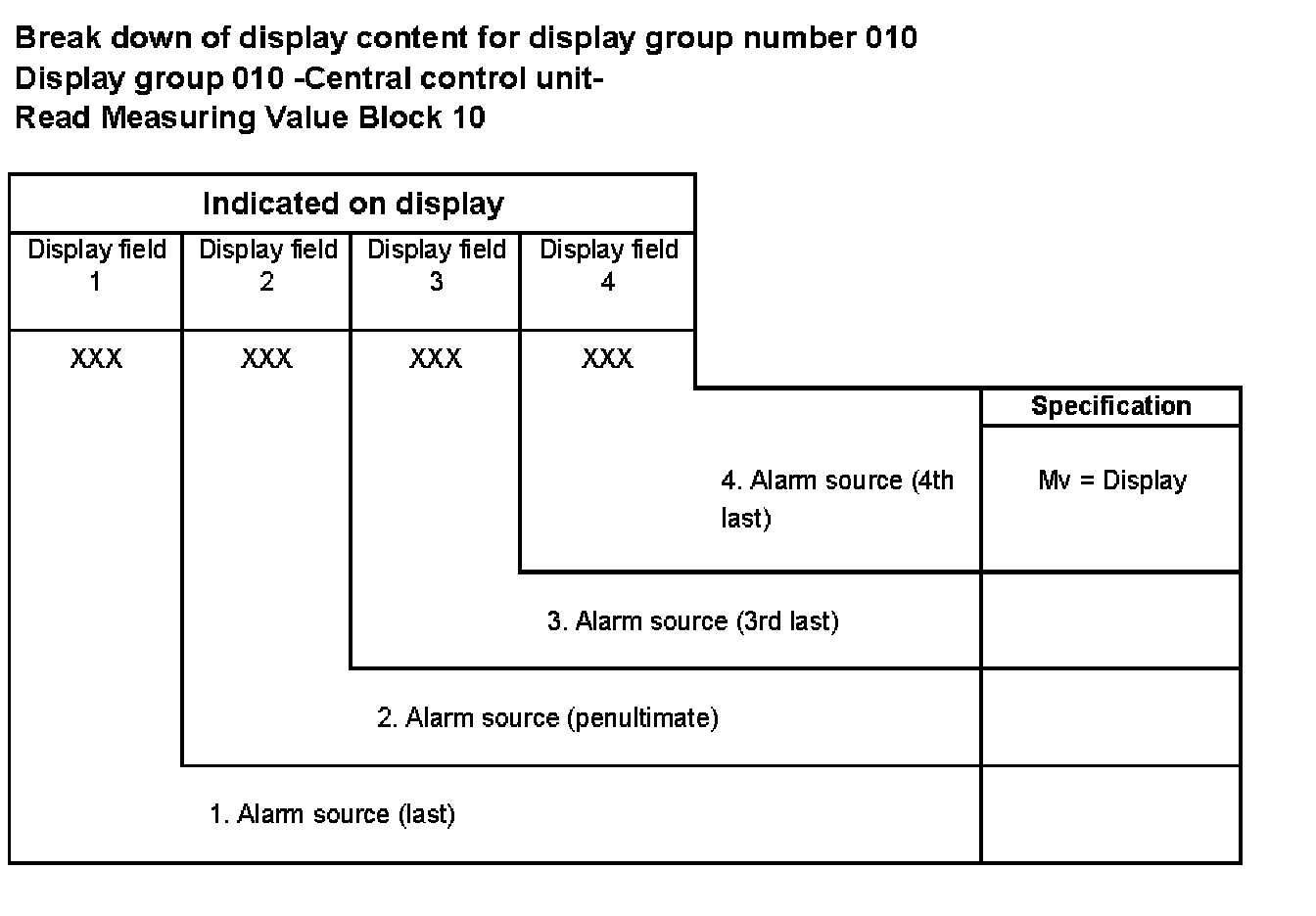

Break down of display content for display group number 010


Display Group 010:






Evaluating display group number 010

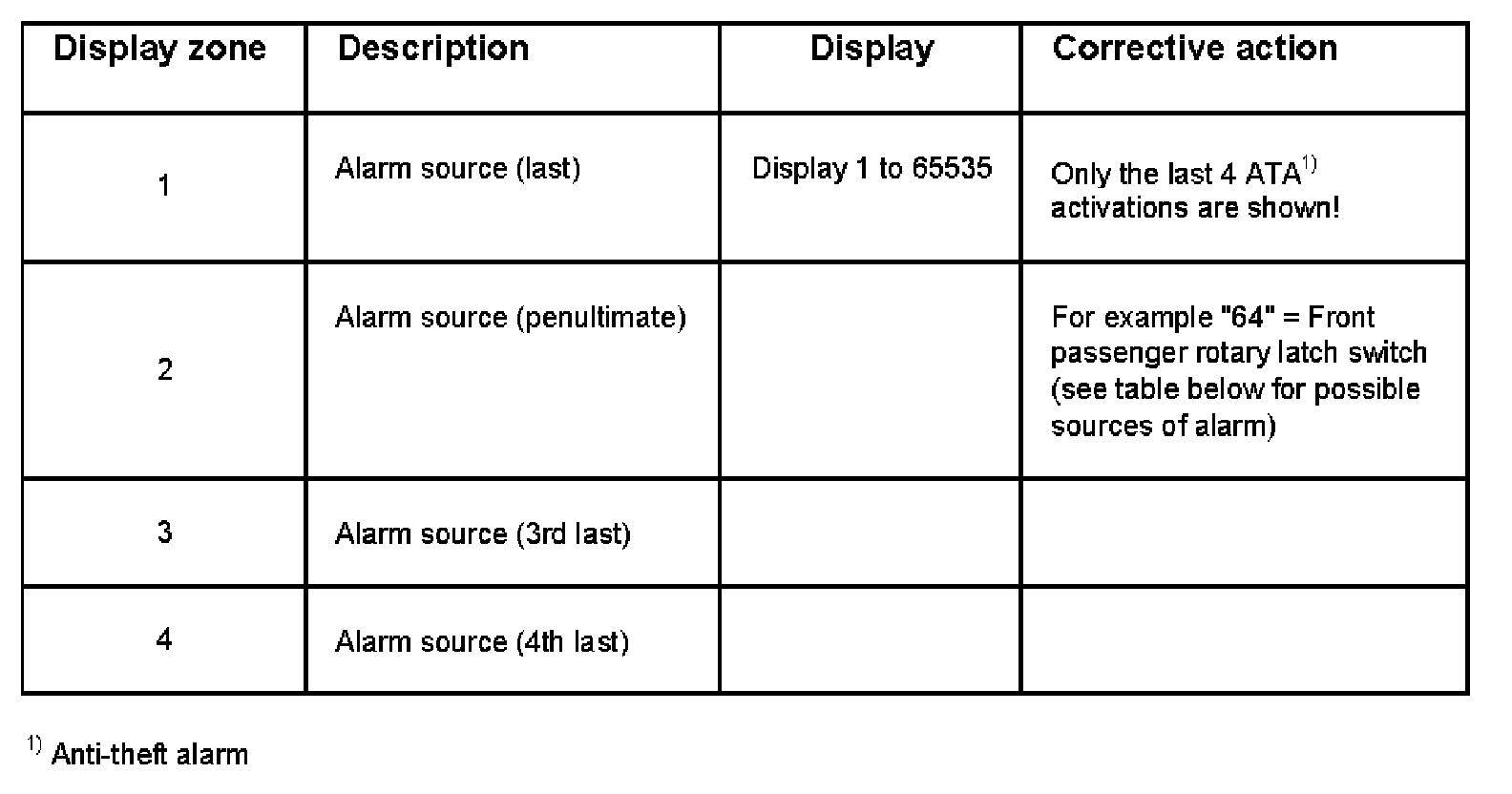

Display Zone 1 - 4:






Possible sources of alarm Display

Interior monitoring 2
Engine hood contact switch 4
Ignition 8
Rear lid contact switch 16
Rear right and left rotary latch switch 32
Front passenger rotary latch switch 64
Driver's rotary latch switch 128
No alarm 255
