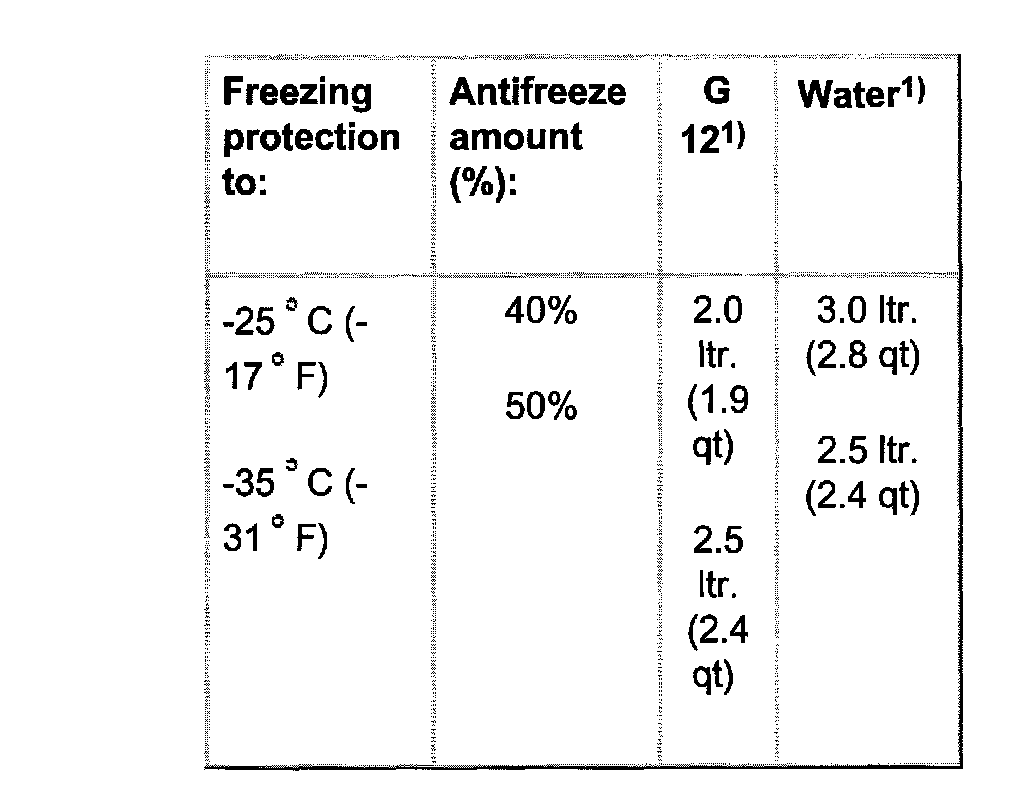

Recommended mixture ratios:
1) Coolant quantity can vary depending upon vehicle equipment.

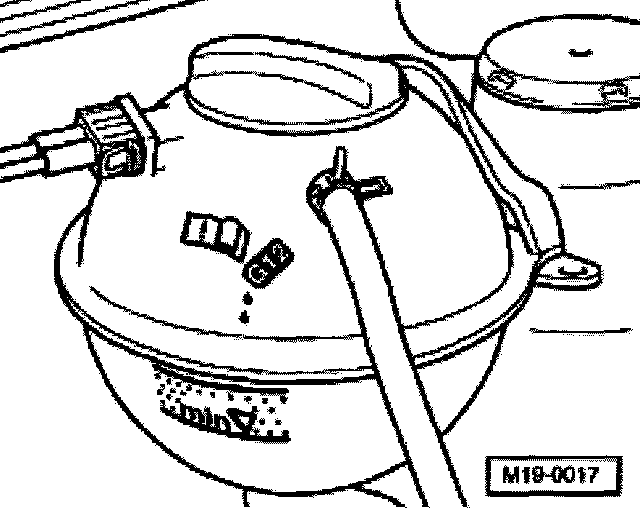

- Fill up engine coolant to upper crosshatched mark of expansion tank.
Note:
- When engine is at operating temperature, engine coolant level should be in cross-hatched section of expansion tank. If engine is cool, engine coolant level should be above min. mark.
