Multi-Function Transmission Range (TR) Switch -F125-






Removing and installing -F125-
- Switch ignition off

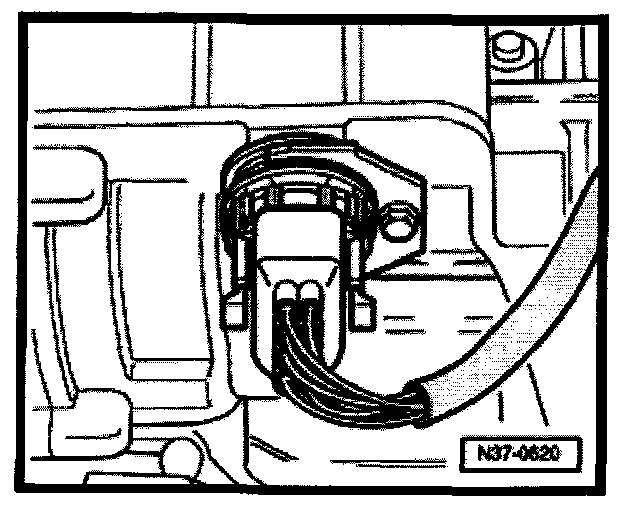

- Disconnect connector from multi-function TR switch.
- Remove bolt and retainer.
- Remove multi-function TR switch.
- Replace seal.

Installation is performed in the reverse order.
- Tighten bolt to 10 Nm (7 ft lb).
