Display Group Overview

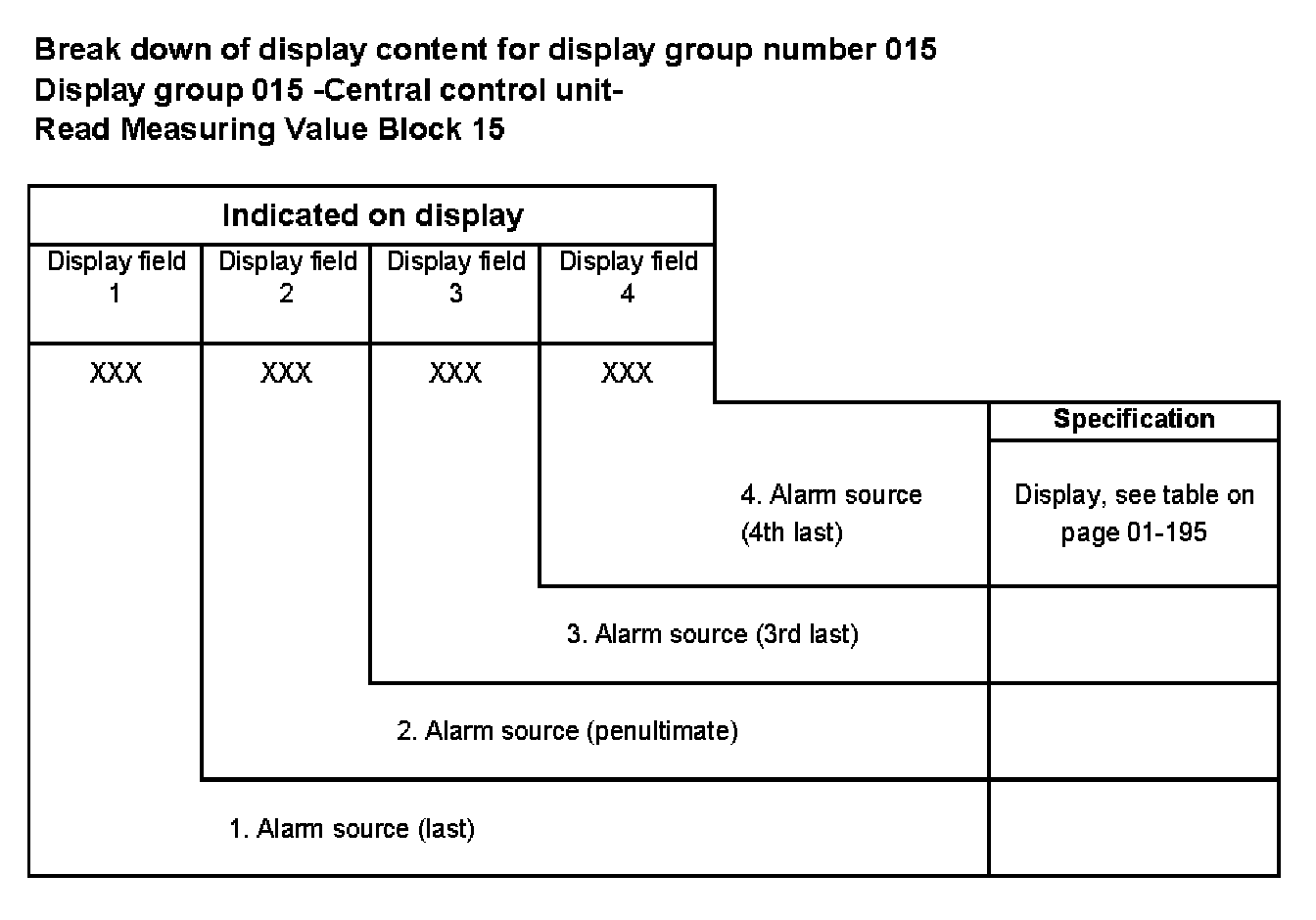

Break down of display content for display group number 015


Display Group 015:






Break down of display content for display group number 015

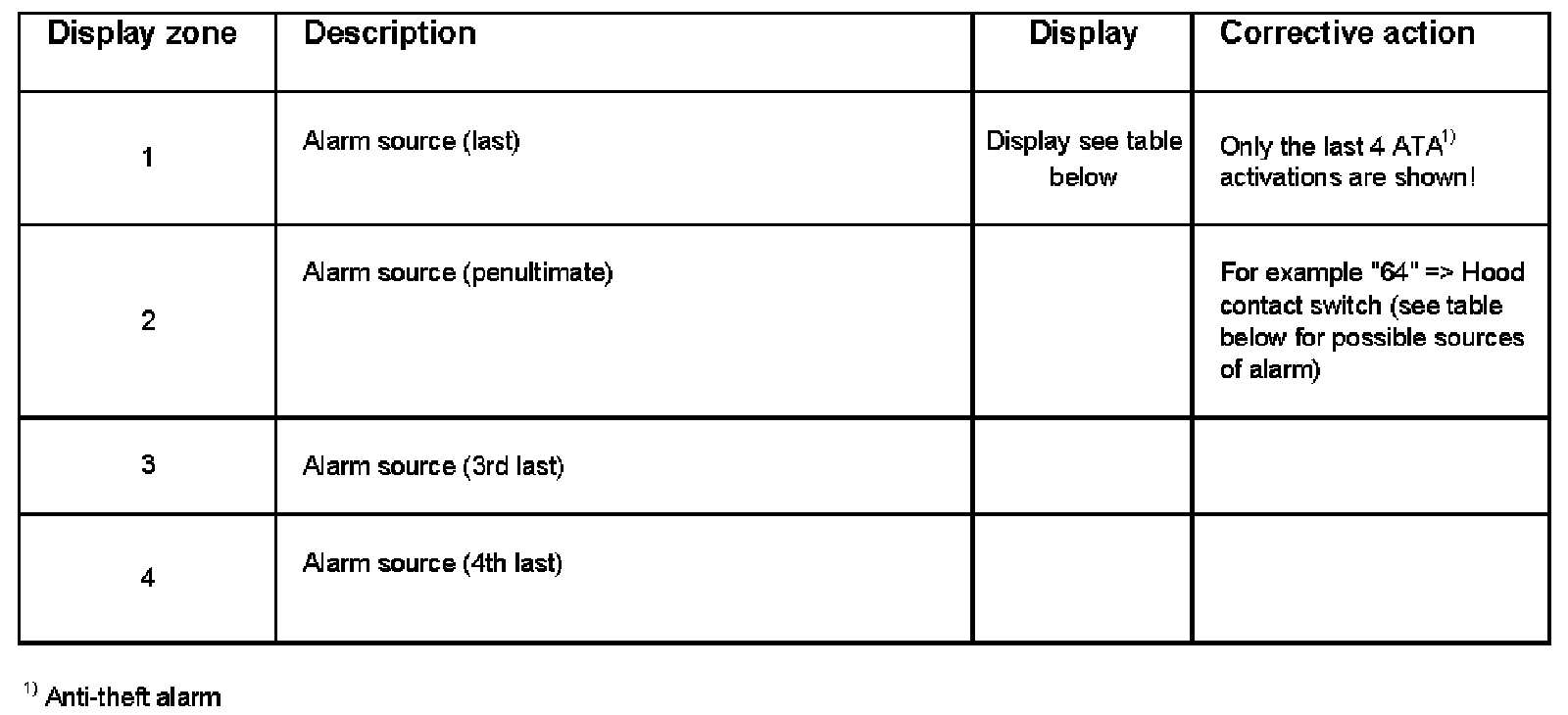

Display Zone 1 - 4:






Possible sources of alarm Display

Boot lid/tailgate contact switch 1
Rear right rotary latch switch 2
Rear left rotary latch switch 4
Front pass. rotary latch switch 8
Ignition 16
Immobilizer 17
Interior monitoring 32
Hood contact switch 64
Driver's rotary latch switch 128
No alarm 255
