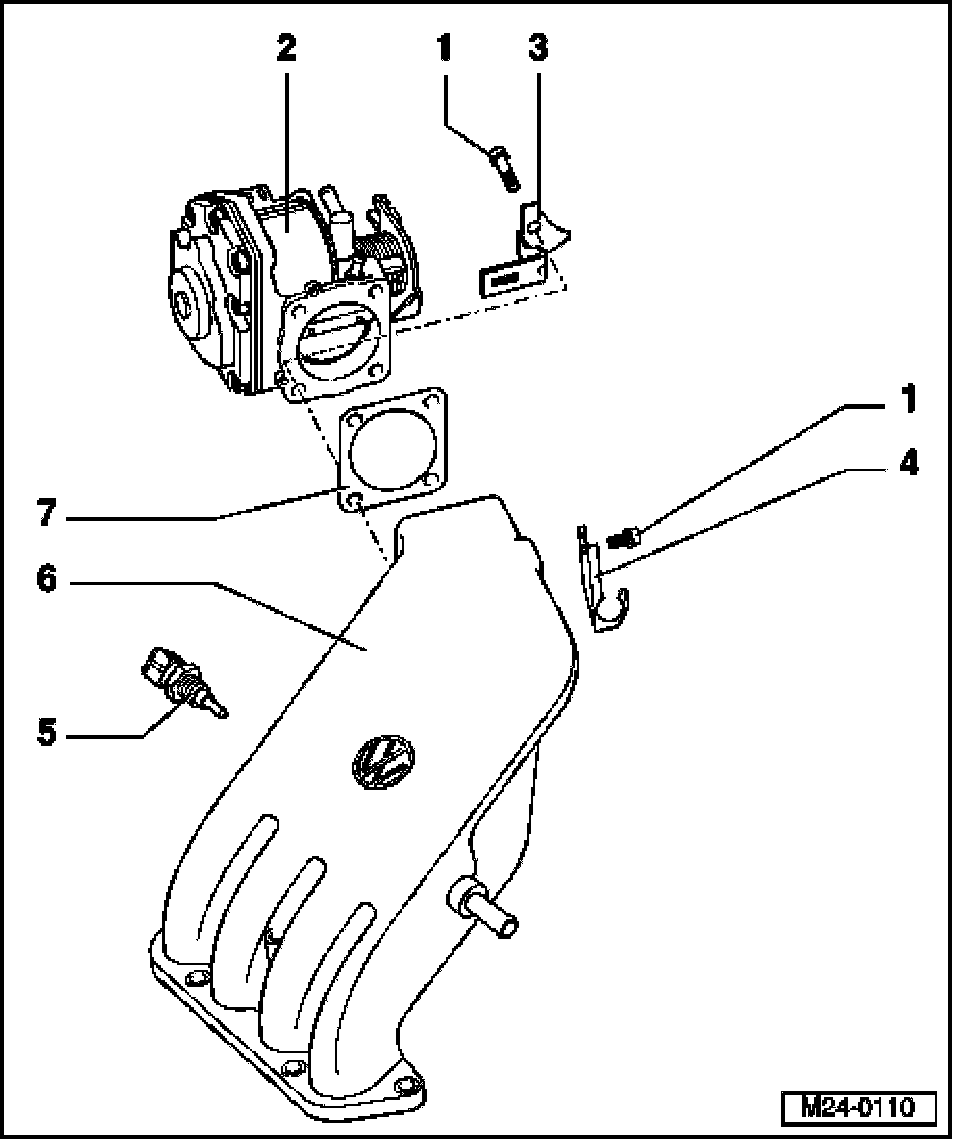

Intake Manifold - Upper Section, Disassembling And Assembling

1 M6 = 10 Nm, M8 = 20 Nm
2 Throttle valve control module -J338-*
- If replaced match engine control module
- If replaced adapt control module for automatic transmission
3 Bracket
4 Support bracket
- For throttle cable
- Adjusting accelerator cable
5 Intake Air Temperature (IAT) Sensor -G42-*

1 Intake manifold - upper section
2 Gasket
- Always replace
