Checking ABS Brake Light Switch And ABS/EDL Function
Display group 003

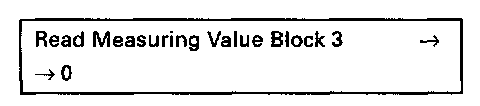

- Press buttons -0-, -0- and -3- to input display group number 3(003).
- Press -Q- button to confirm input.

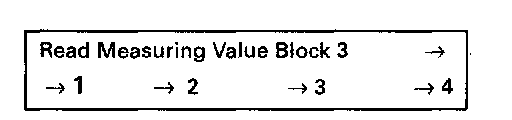

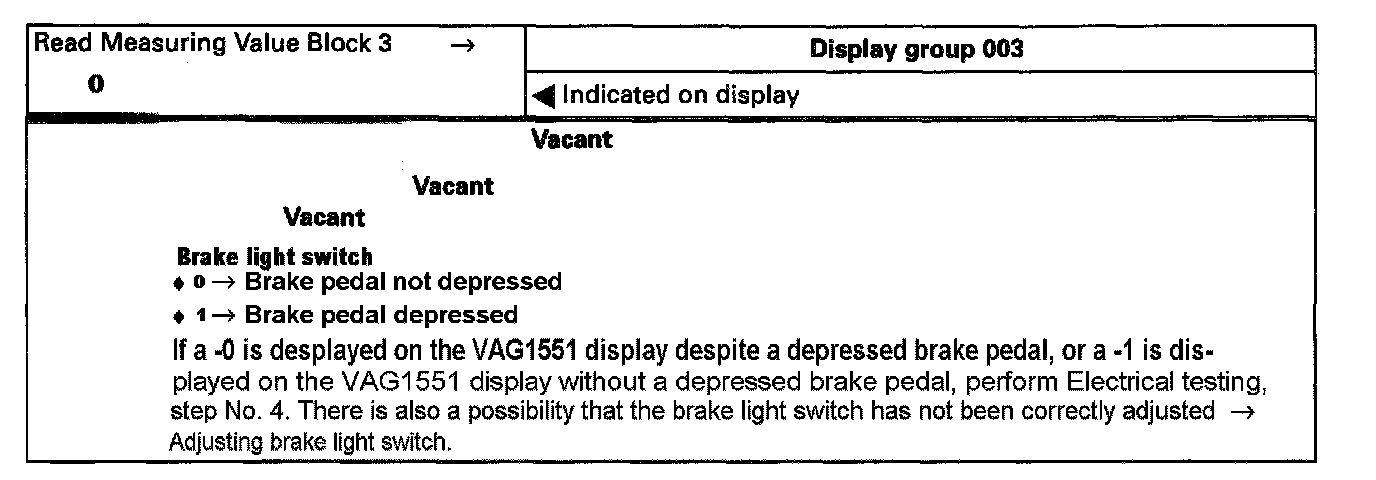

- There are always 4 display fields (arrows) in the display group. Descriptions of the individual values in display fields 1 - 4 can be found in the table. Checking Wheel Speed Sensor





Indicated on display
- Press -C- button for next display group number entry.





If the button is pressed, buttons -0- and -8- ("Read Measuring Value Block") must be pressed again to regain entry.
