- VAG 1551 Scan Tool connected with "Read Measuring Value Block" Function Selected Display Group 02.
Indicated On Display:
Read Measuring Value Block 2
1 2 3 4
- No leaks in vacuum lines and hose connections
- Vacuum lines not plugged or kinked
- Engine oil temperature min. 50°C (122°F)

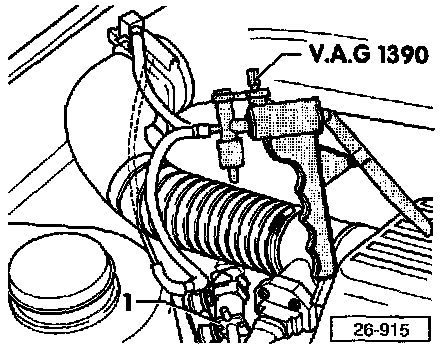

- Disconnect EGR Vacuum Regulator Solenoid Valve (N18) -1-.
- Connect VAG 1390 vacuum pump to the disconnected hose.
- Operate vacuum pump.
- Performance at Closed Throttle Position must get noticeably worse.
If NO:
- Check lines and connections for obstructions and clean if necessary.
- If necessary, Replace EGR Valve.
If Idle Gets Worse:
- Read EGR temperature in display field 4. Temperature must rise steadily without interruption.
- If display reads 127.4°C, or if the temperature drops, there is an interruption.
- As soon as the temperature value reaches 200°C, disconnect vacuum pump.
- Press -> button.
- Press buttons -and -6- for "End Output" Function.
- Press -Q- button to confirm input.
If no fault is found:
- Replace EGR Temperature Sensor (G98).
