Charging System

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1996 Volkswagen.

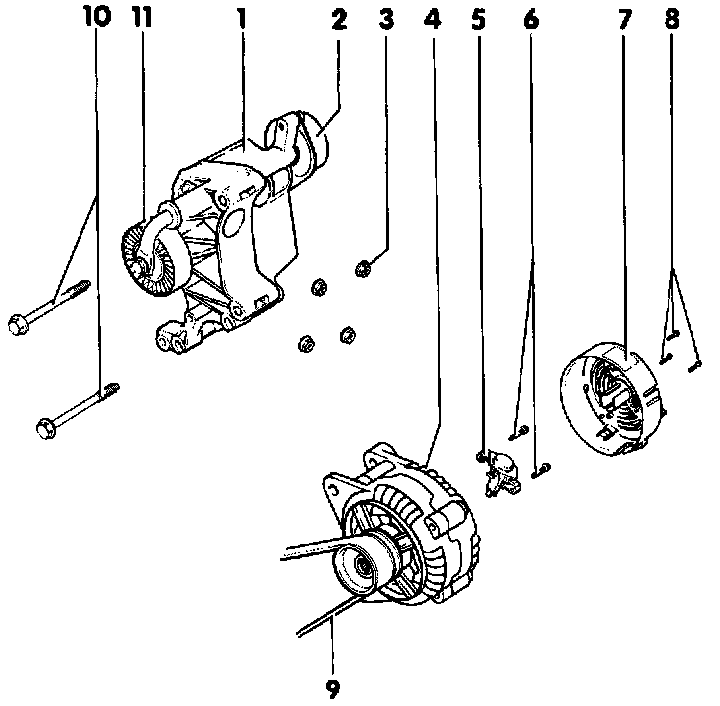

Vehicles with gasoline engine and A/C

With Air Conditioning:

1. Mounting bracket
2. Spring tensioner

3. Nut M8
30 Nm (22 ft lb)

4. Generator (GEN)

5. Voltage Regulator (VR)
When replacing, remove and install items -8-, -7-, -6-

6. Phillips-head screws M4 x 25
7. Cover
8. Bolts M3 x 18
9. Ribbed belt

10. Bolt M8 x 85
25 Nm (18 ft lb)

11. Tensioner (idler) pulley
