Engine Specifications

Engine And Transmission Codes:

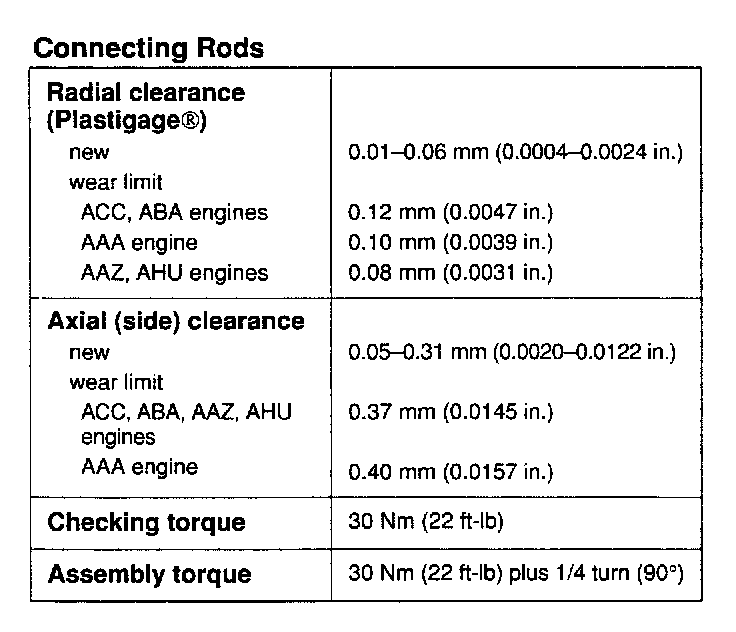

Connecting Rod Specifications:

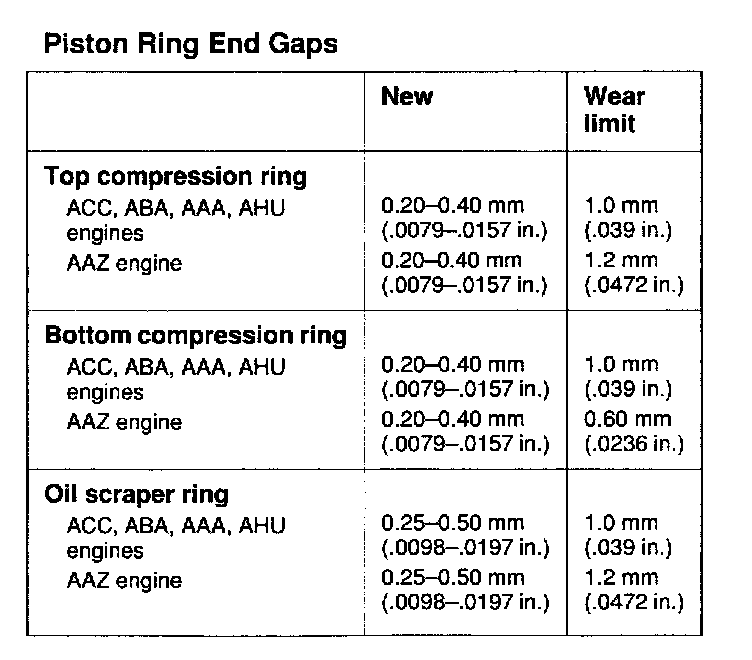

Piston Ring Specifications:

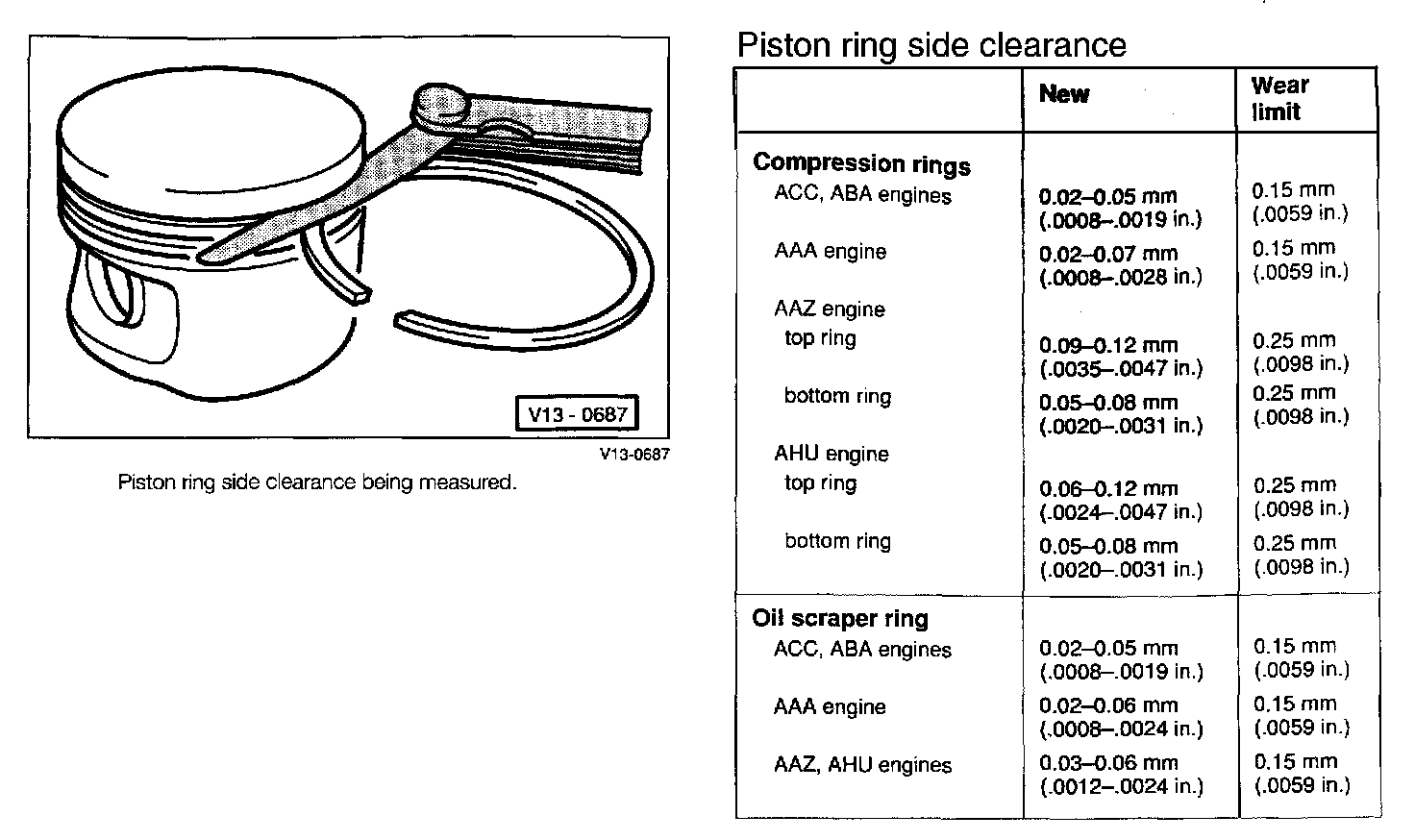

Piston Ring Side Clearance Specifications:

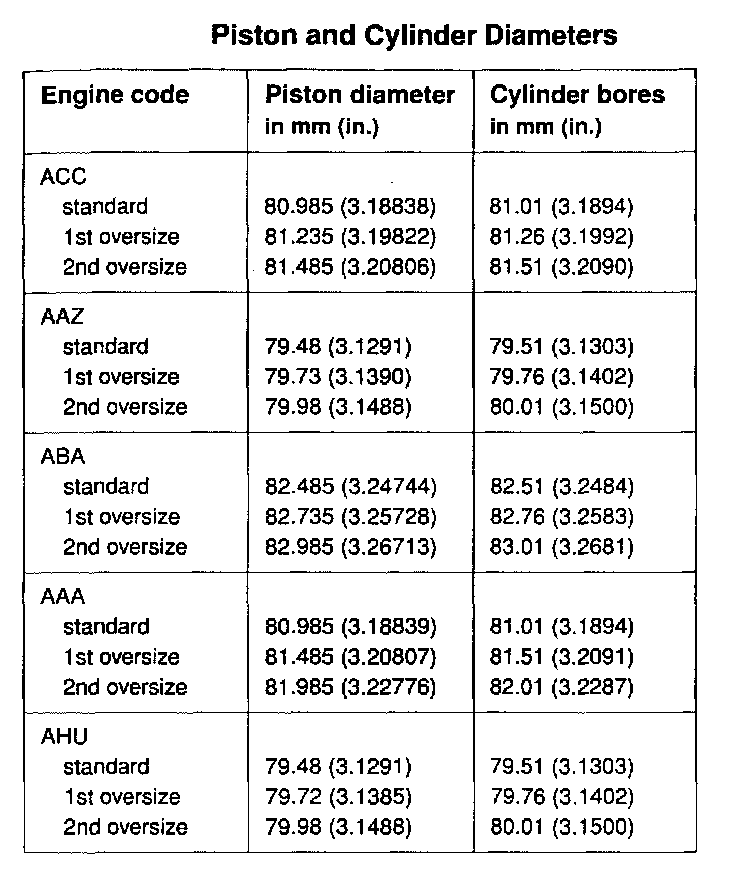

Piston And Cylinder Diameters Specifications:





Crankshaft Journal Specifications:

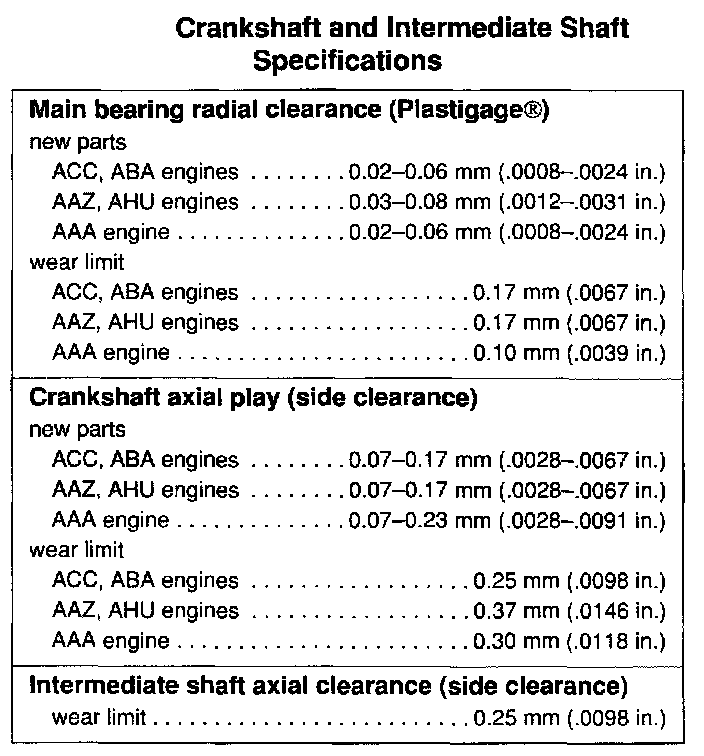

Crankshaft And Intermediate Shaft Specifications:





Four Cylinder Engines

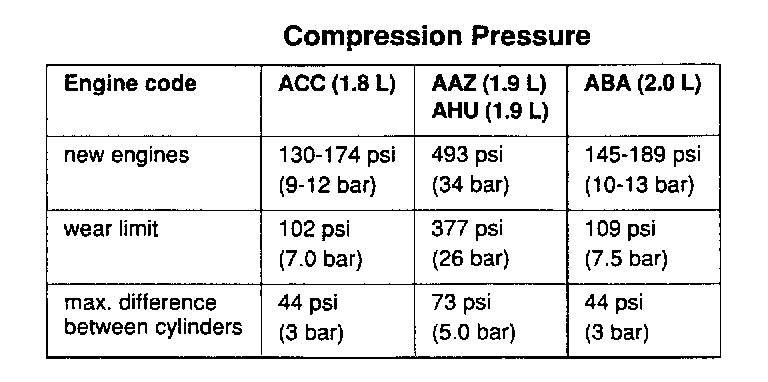

Compression Specifications:

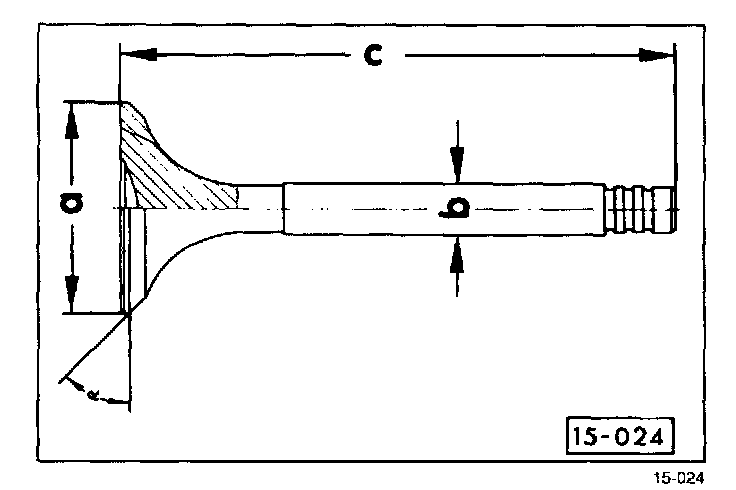

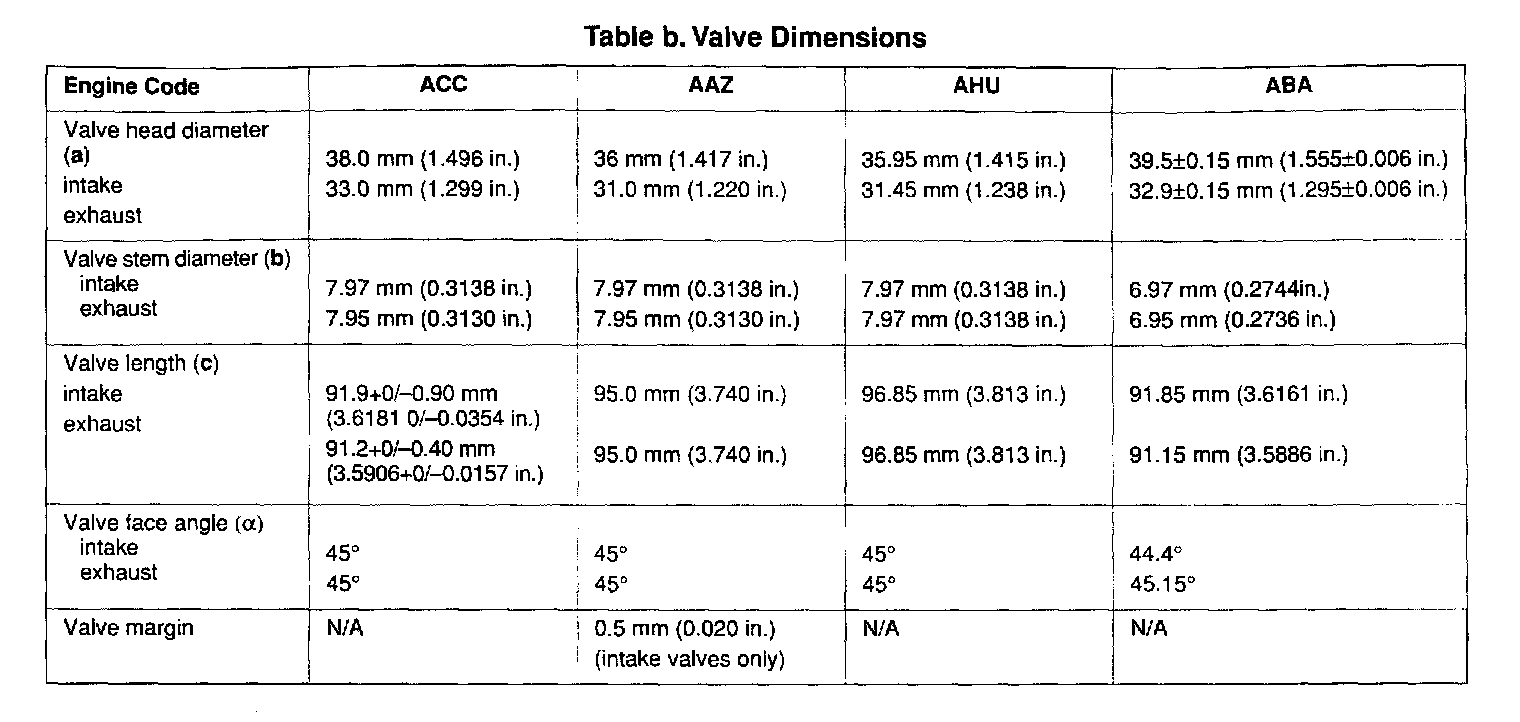

Valve Dimension Specifications:





Valve:

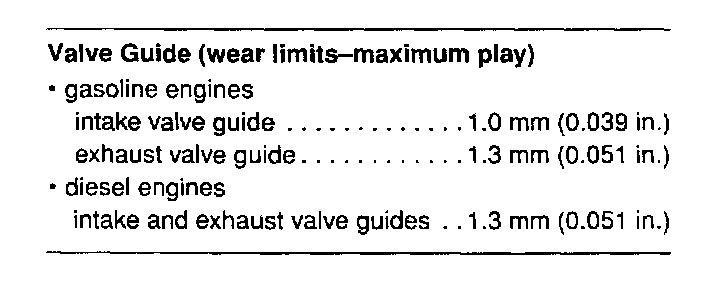

Valve Wear Specifications:

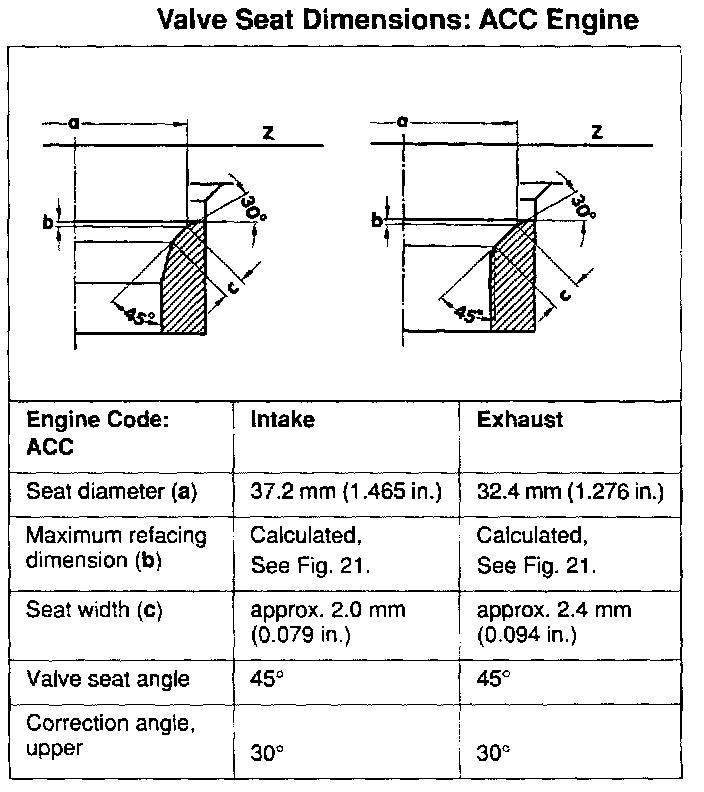

Valve Seat Dimensions ; ACC Engines:

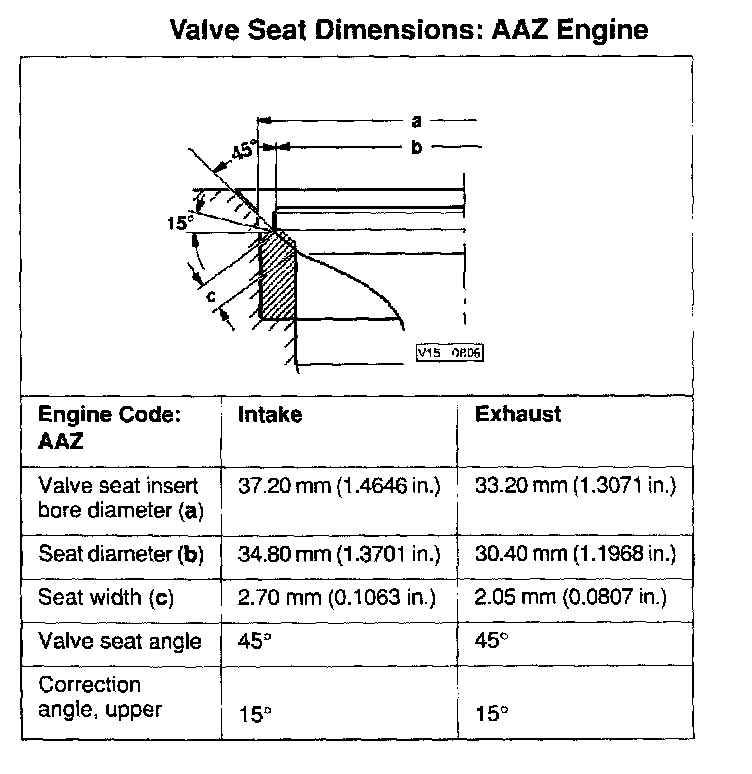

Valve Seat Dimensions;AAZ Engines:

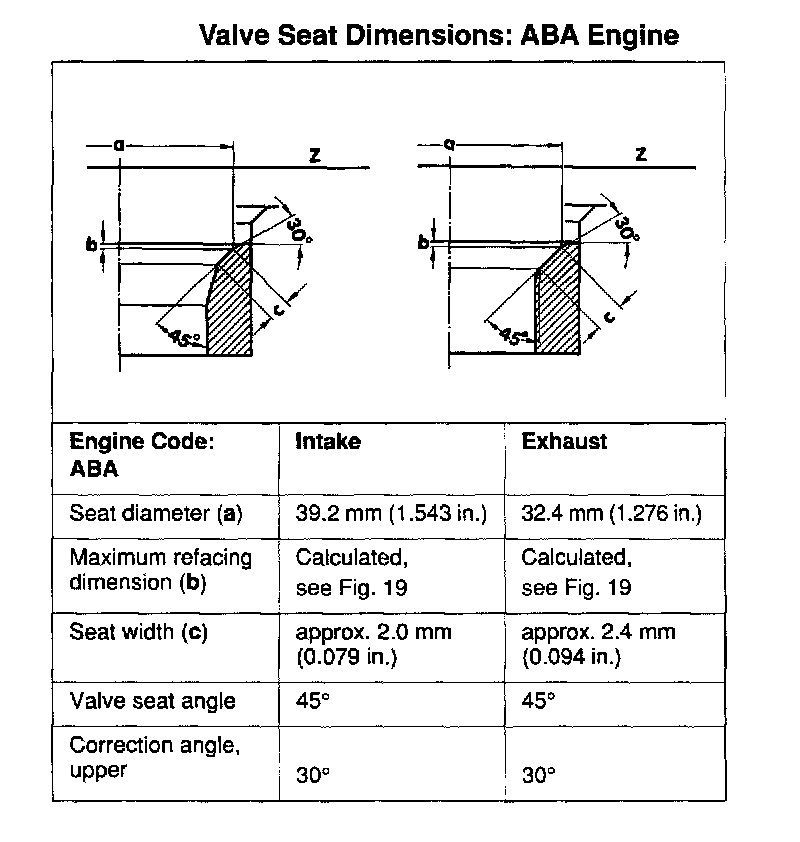

Valve Seat Dimensions ; ABA Engines:

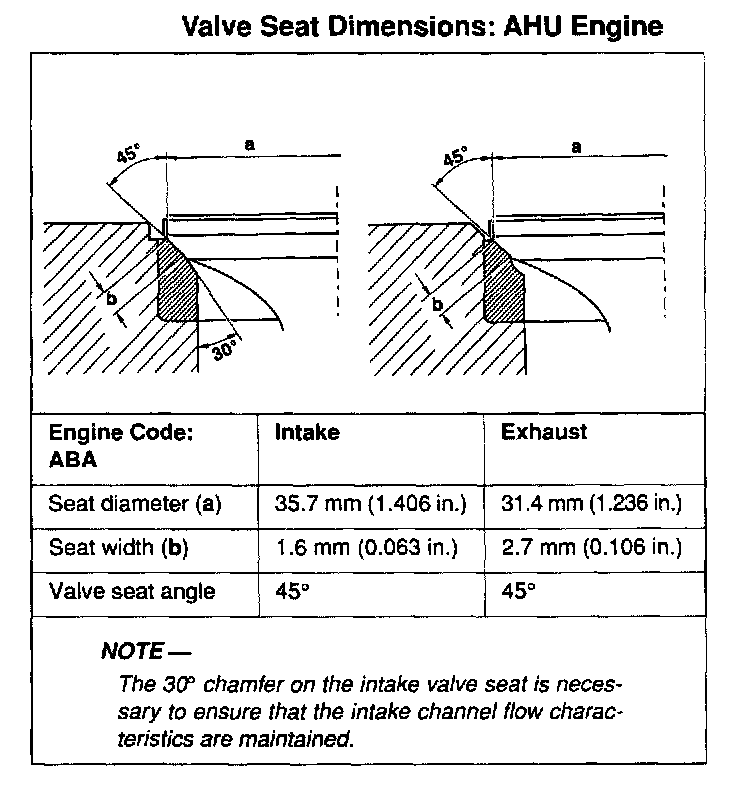

Valve Seat Dimensions ; AHU Engines:
