Starting with 1994 m.y. Golf and Jetta vehicles are equipped with a new 16-pin Data Link Connector (DLC).
This connector is used for access to the vehicle's On Board Diagnostic (OBD) systems using the VAG 1551 Scan Tool (ST).
Test Requirements:
^ Battery Positive Voltage (8+) OK
^ Fuse 22 (S22) OK
^ Ground (GND) connections on engine and transmission OK (location: below lower part of intake manifold
^ A/C switched OFF

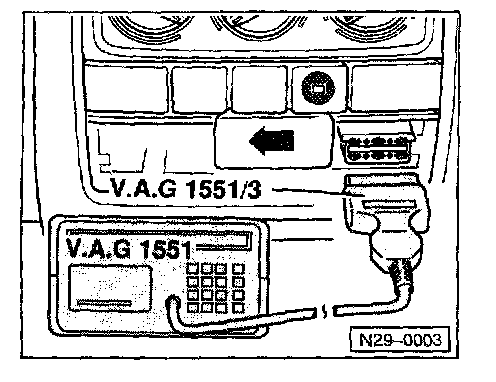

For access to the Data Link Connector (DLC):
- Remove front ashtray.
- Slide small cover to the left -arrow-.
- With ignition switched OFF, connect VAG 1551/3 adapter harness between Data Link Connector (DLC) and VAG 1551 Scan Tool.
Indicated on display
[V.A.G. - ON BOARD DIAGNOSTIC HELP ]
[1-Rapid data transfer* ]
[2-Blink code output* ]
* Operating modes 1 and 2 are displayed alternately.
