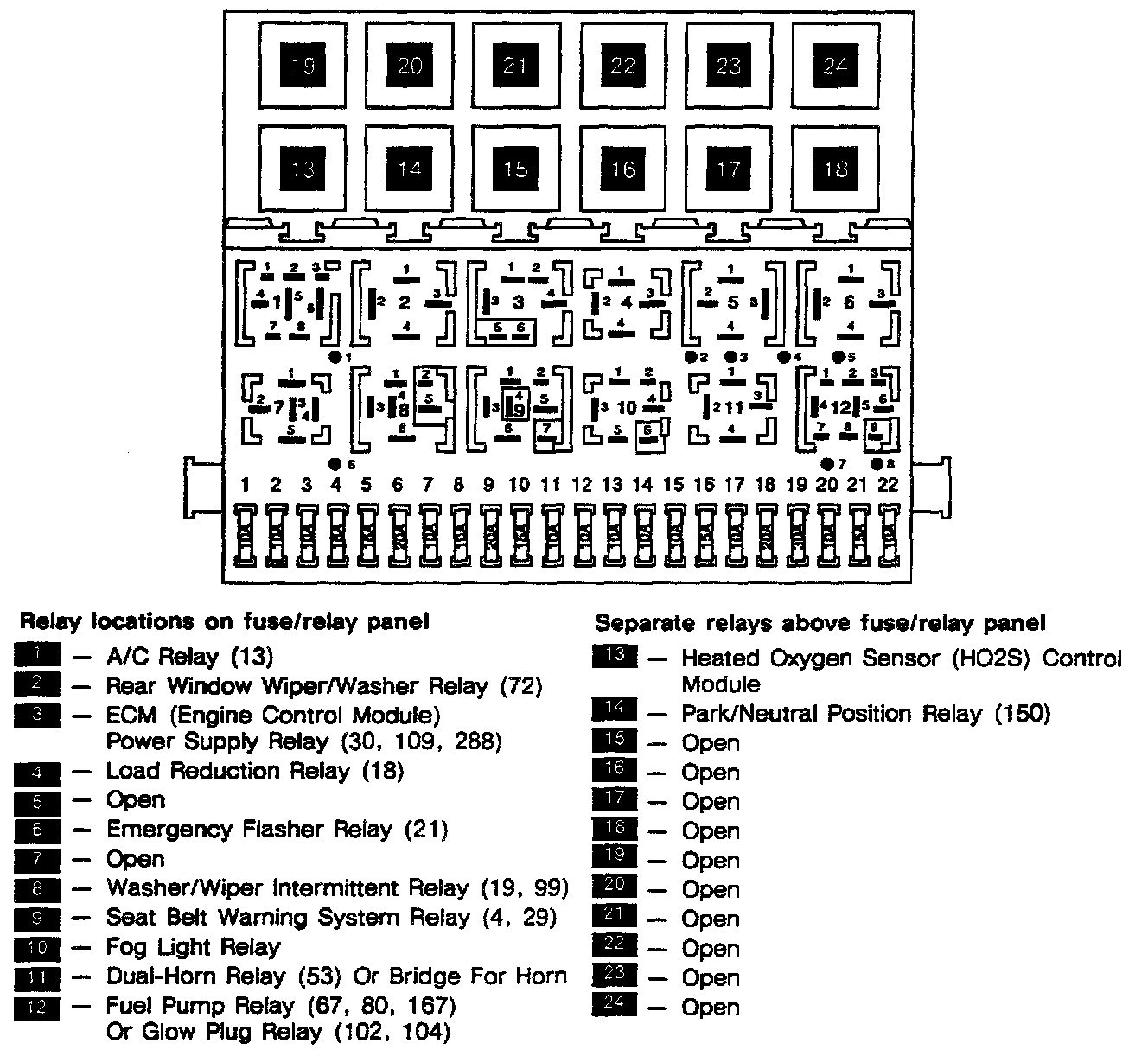

Relay Locations:
Important: Obtain radio security code and disconnect battery ground strap before working on electrical system
Note:
- Relay and fuse location may not match those shown depending on vehicle accessories and optional equipment. See appropriate wiring diagrams.
- Number in parentheses indicates production control number stamped on relay housing.
