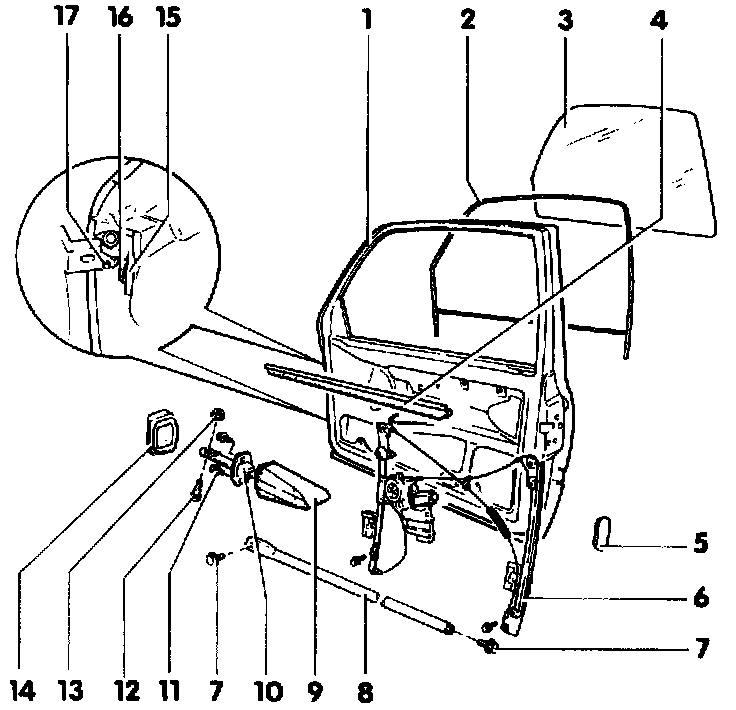

System Diagram

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1994 Volkswagen.

1- Door
2- Window channel
3- Door window
4- Window slot seal
5- Cover
6- Window regulator
7- Hex bolt
8- Side impact member
9- Door check strap sleeve
10- Door check strap
11- Hex-head screw
12- Bolt
13- Locking nut
14- Door check strap cover
15- Door hinge
16- Torx bolt T45
17- Screw
