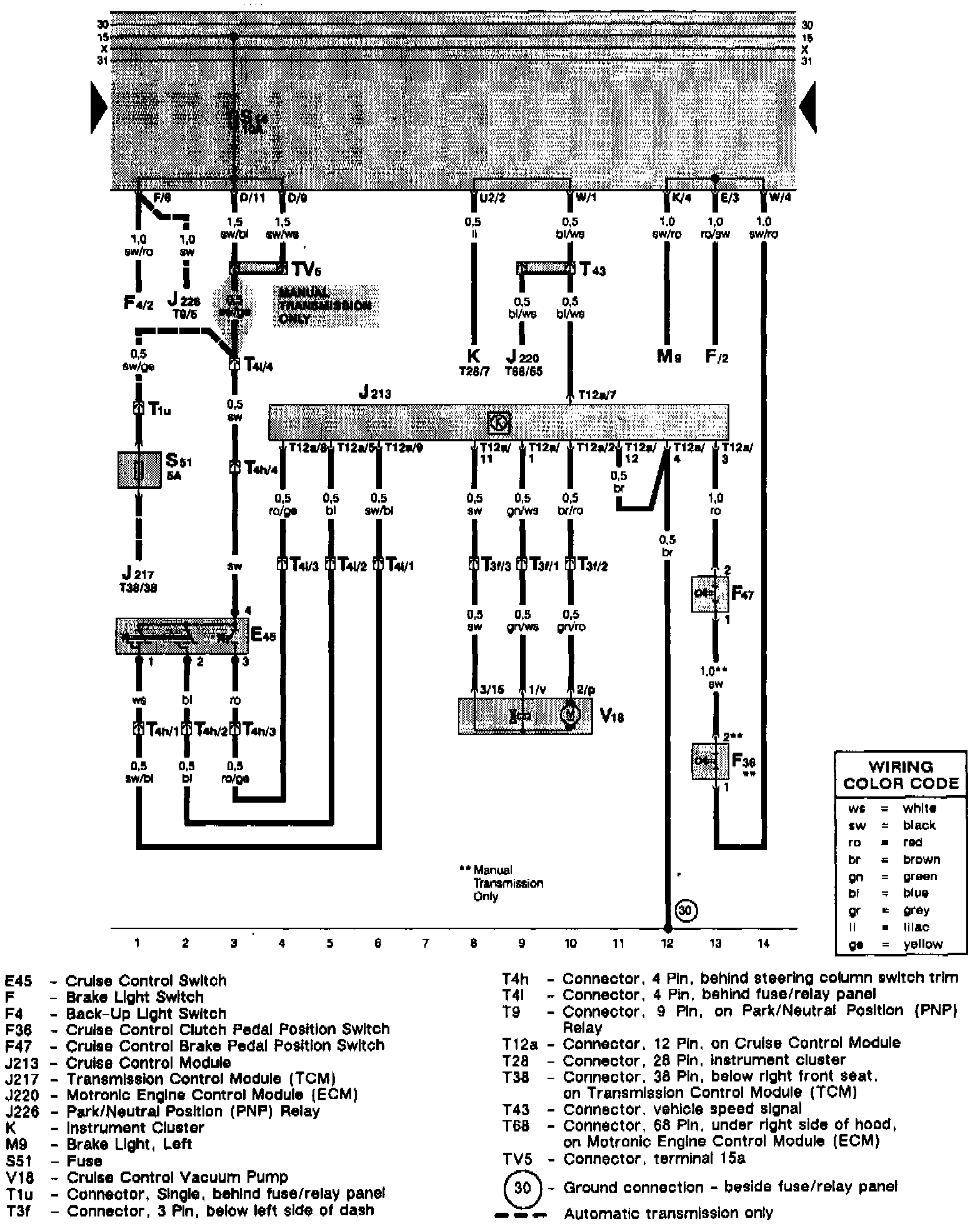

Fig. 3 Speed Control Wiring Diagram:

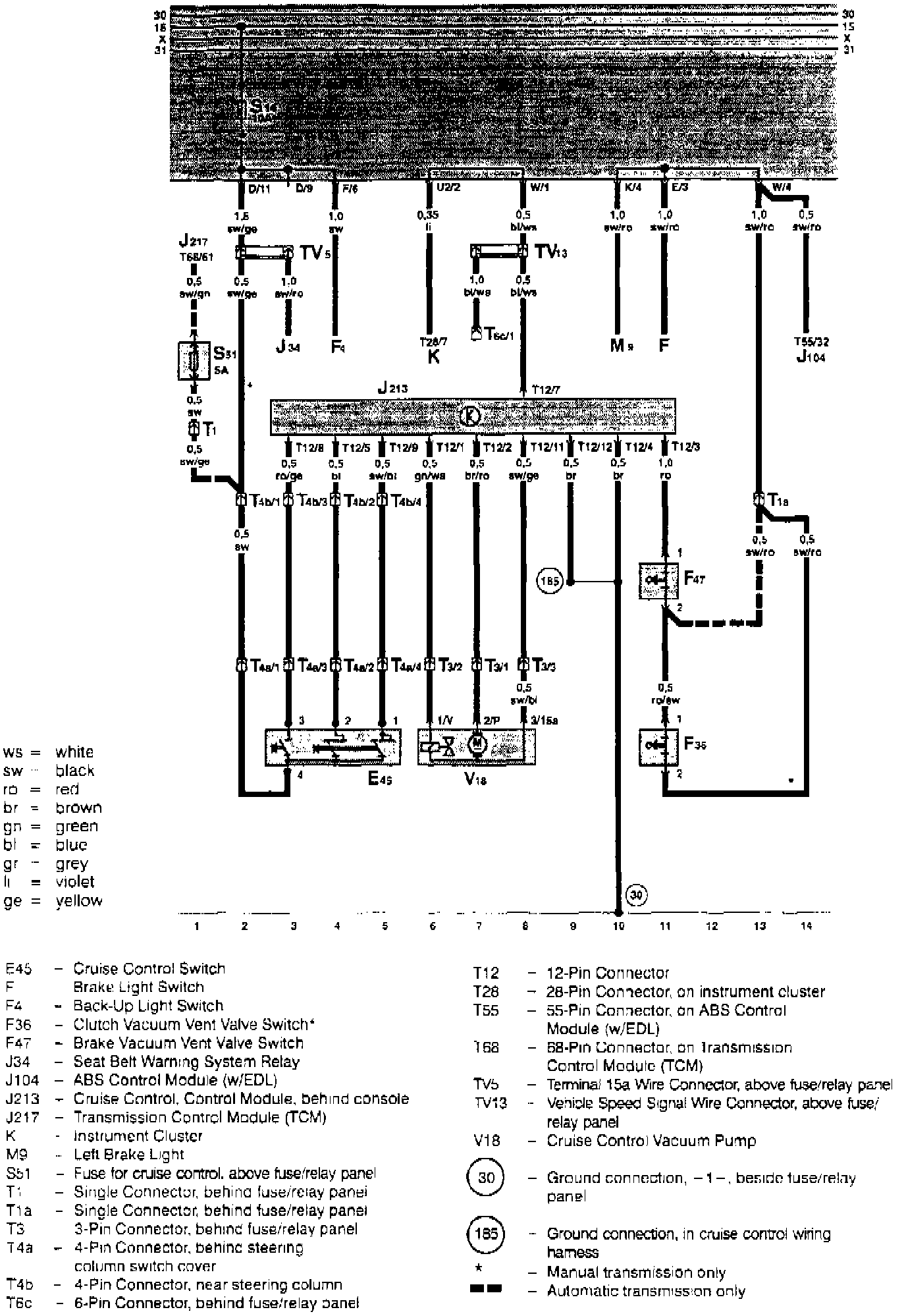

Fig. 2 Speed Control Wiring Diagram:

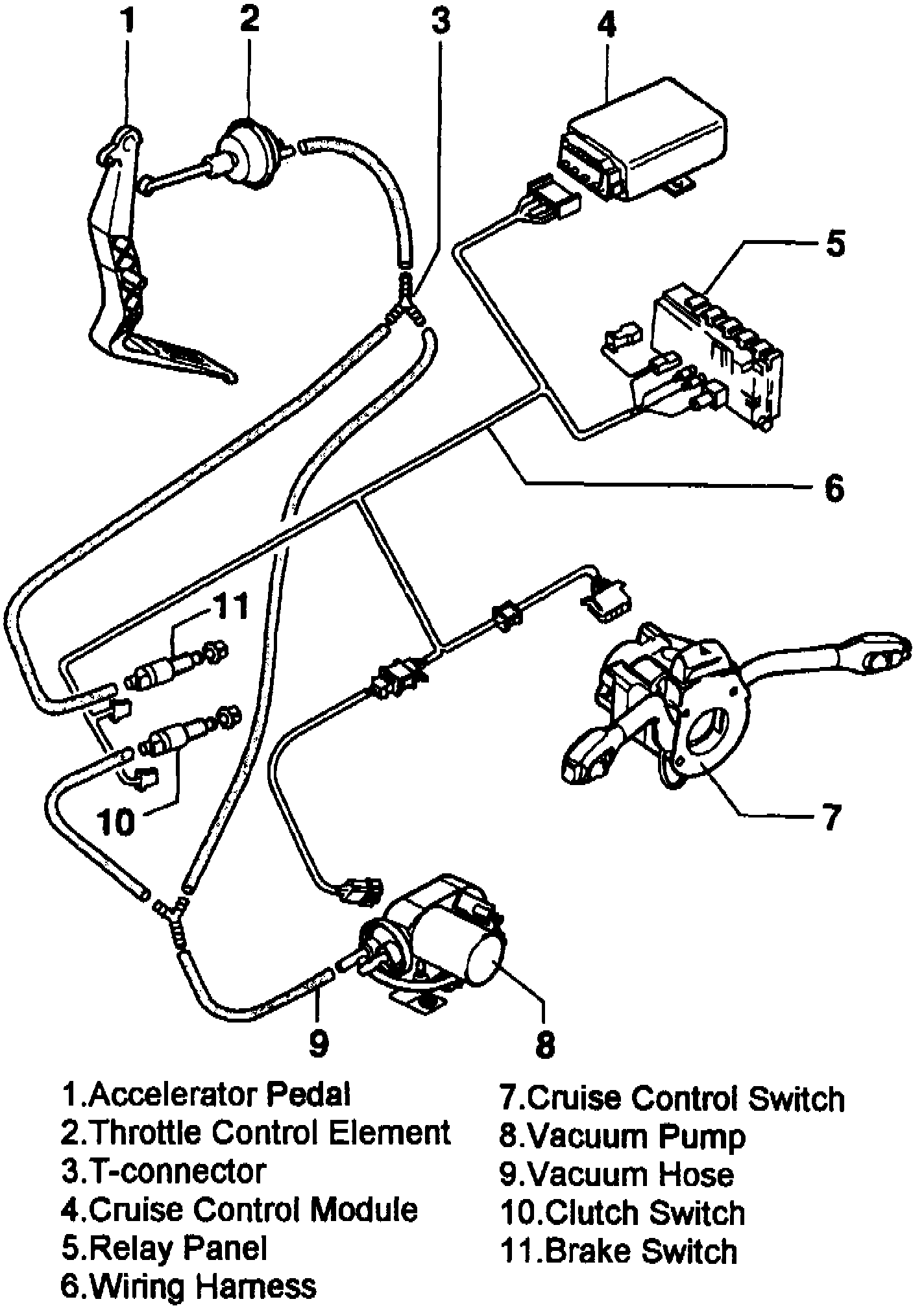

Fig. 4 Component Diagram:
Refer to wiring diagrams, Fig. 2 & 3, and component identification diagram, Fig. 4 , when troubleshooting these systems.
