No Ground Circuit to Control Unit

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1994 Volkswagen.

AI Repair Guides

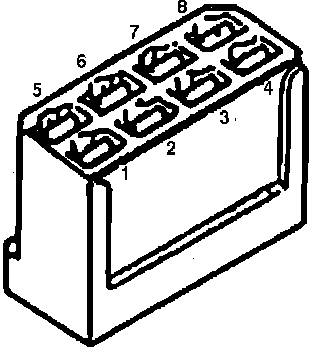

Fig. 1 Cruise Control Unit Electrical Connector Terminal Location:





1. Disconnect control unit electrical connector Fig. 1.
2. Connect test light between terminal No. 8 and battery positive.
3. If test light does not illuminate, repair broken wire in ground circuit.
4. If test light illuminates, proceed to next test.
