Engine Specifications

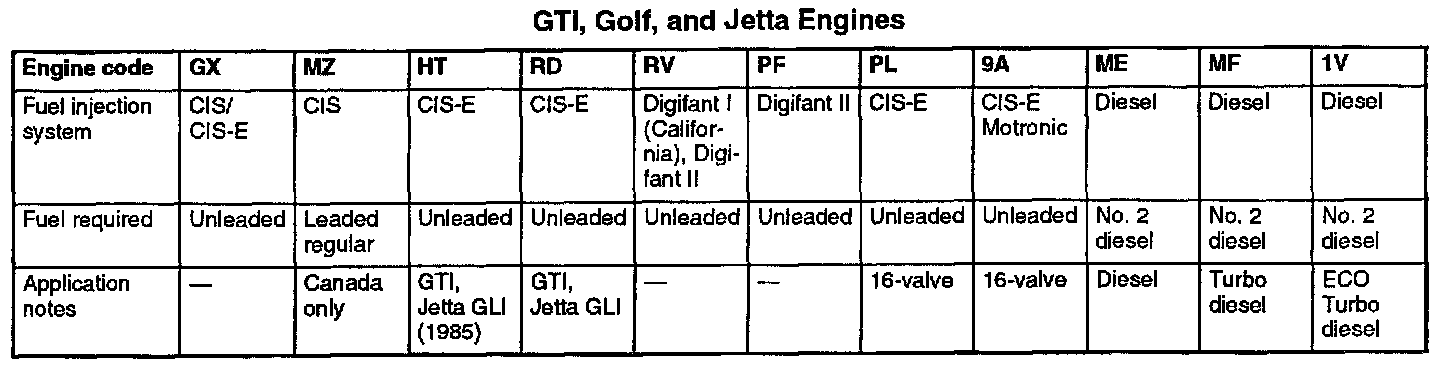

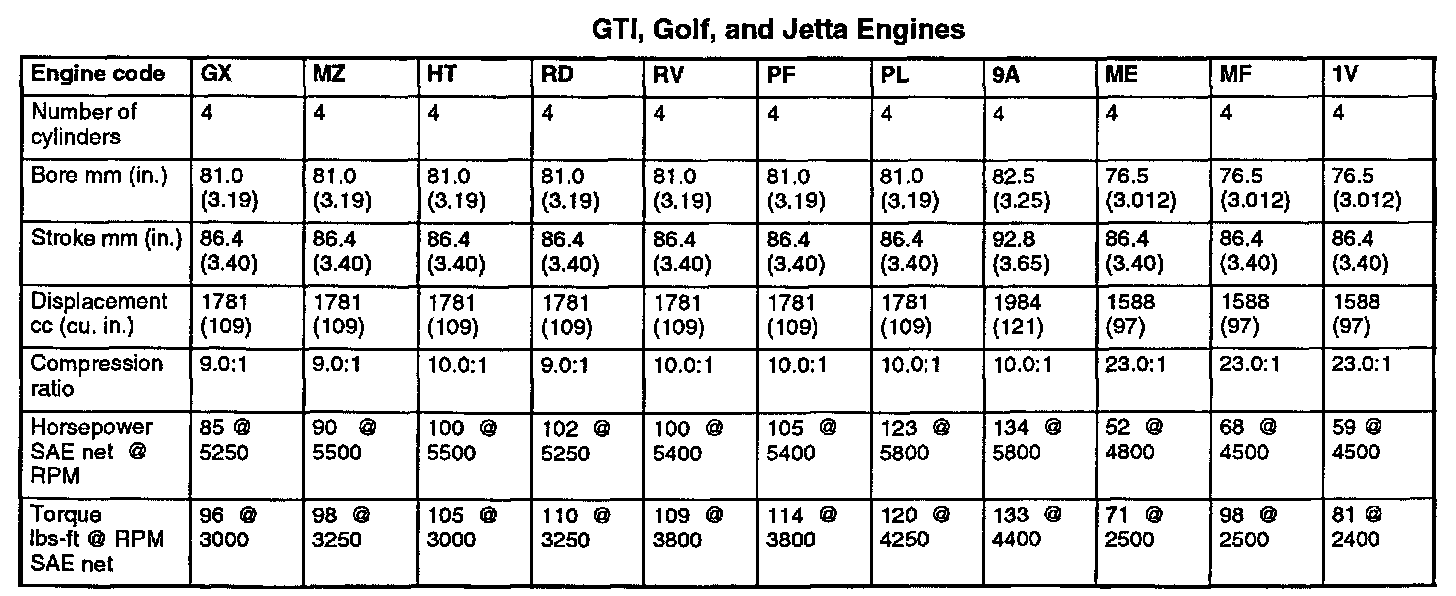

GTI, Golf And Jetta Engine Specifications:




Continued:

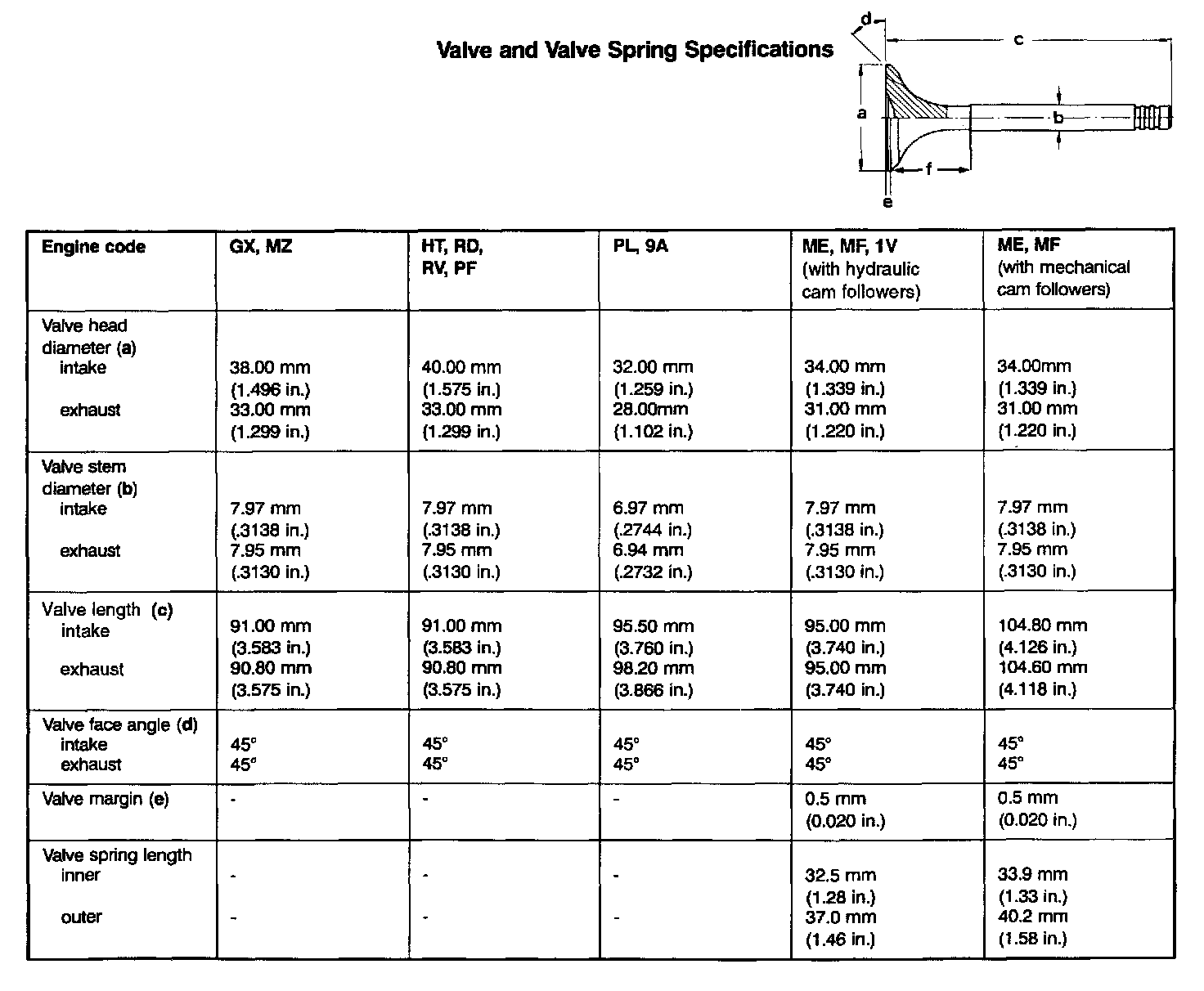

Valve And Valve Spring Specifications:

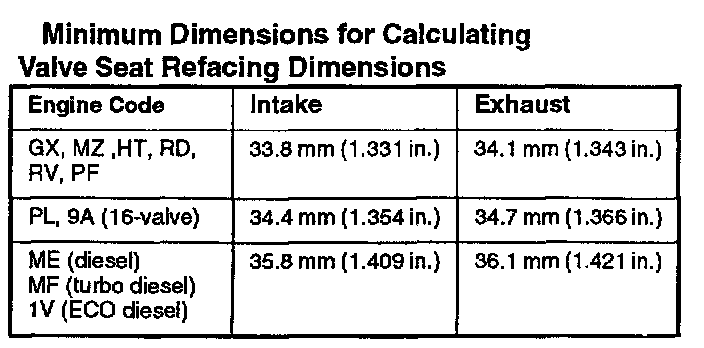

Valve Seat Specifications:

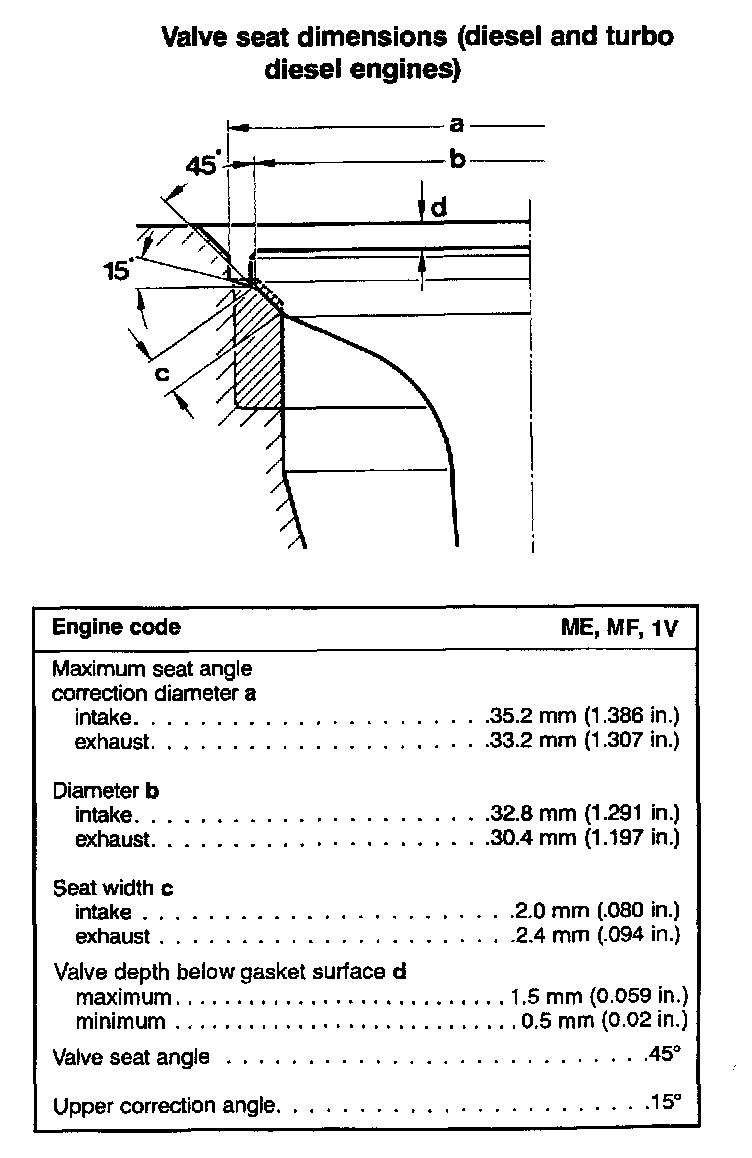

Valve Seat Specifications (Diesel And Turbo Diesel):

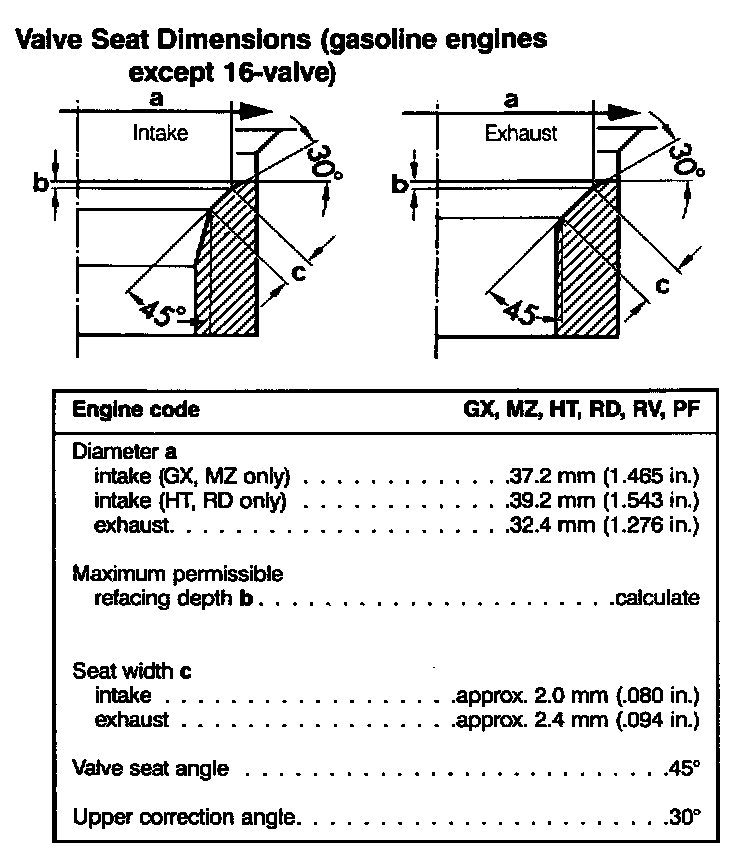

Valve Seat Dimensions (Gasoline,except 16-Valve Engines):

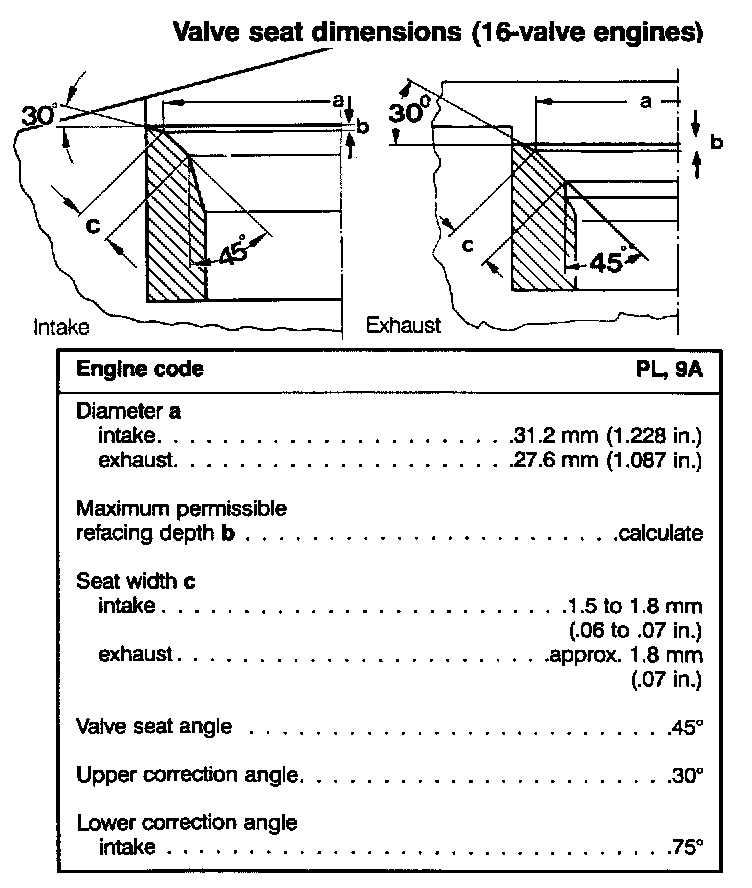

Valve Seat Dimensions (16-Valve Gasoline Engines):

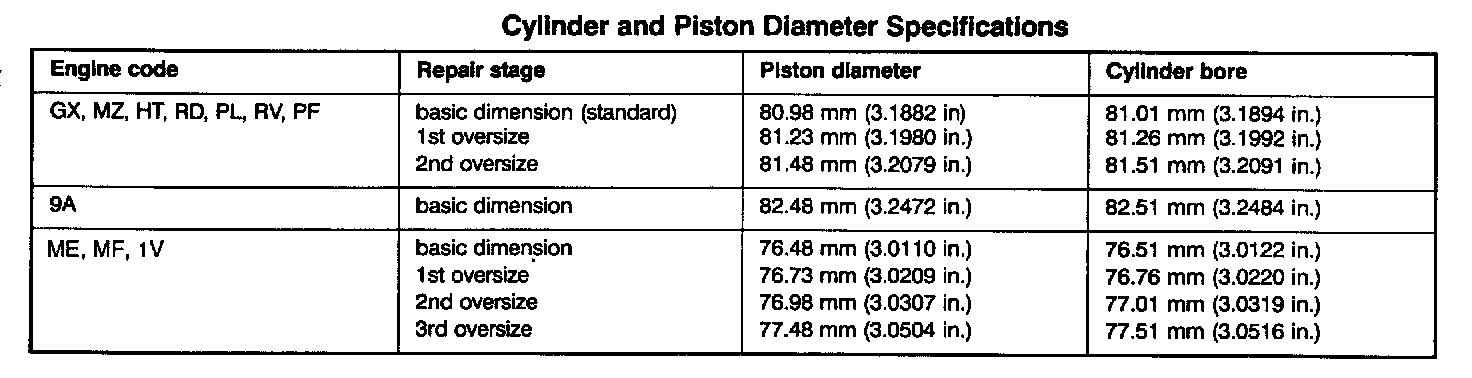

Cylinder And Piston Specifications:

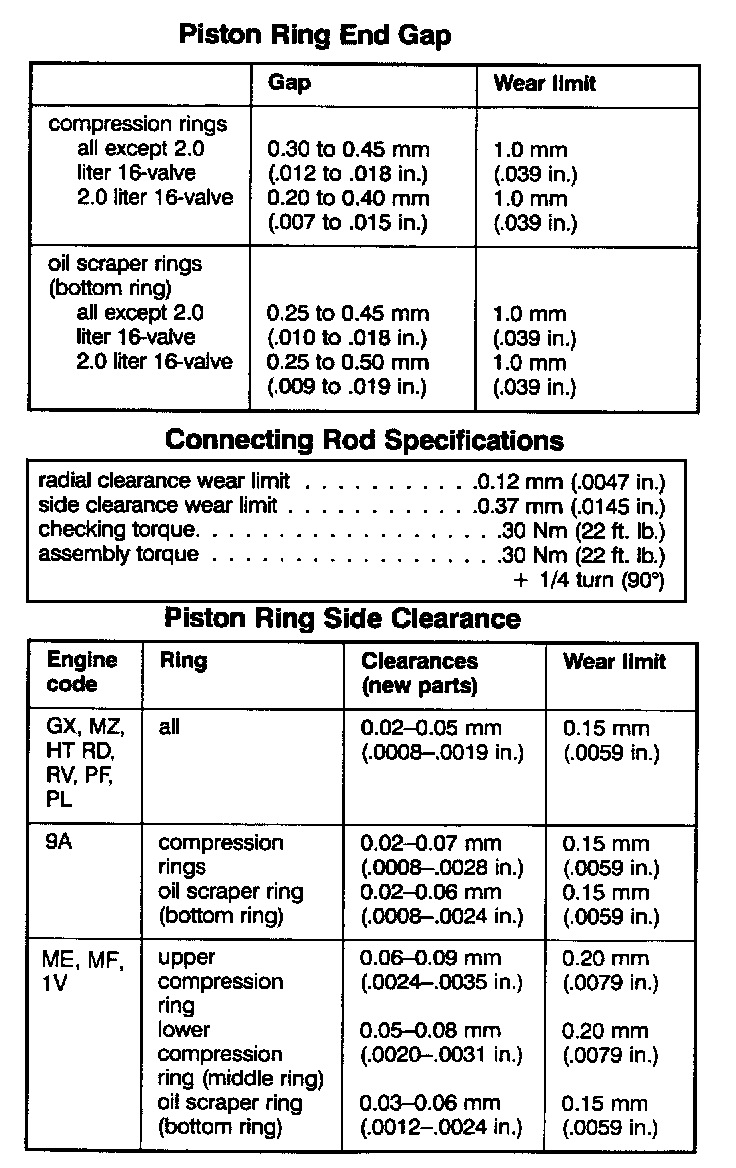

Connecting Rod And Piston Ring Specifications:

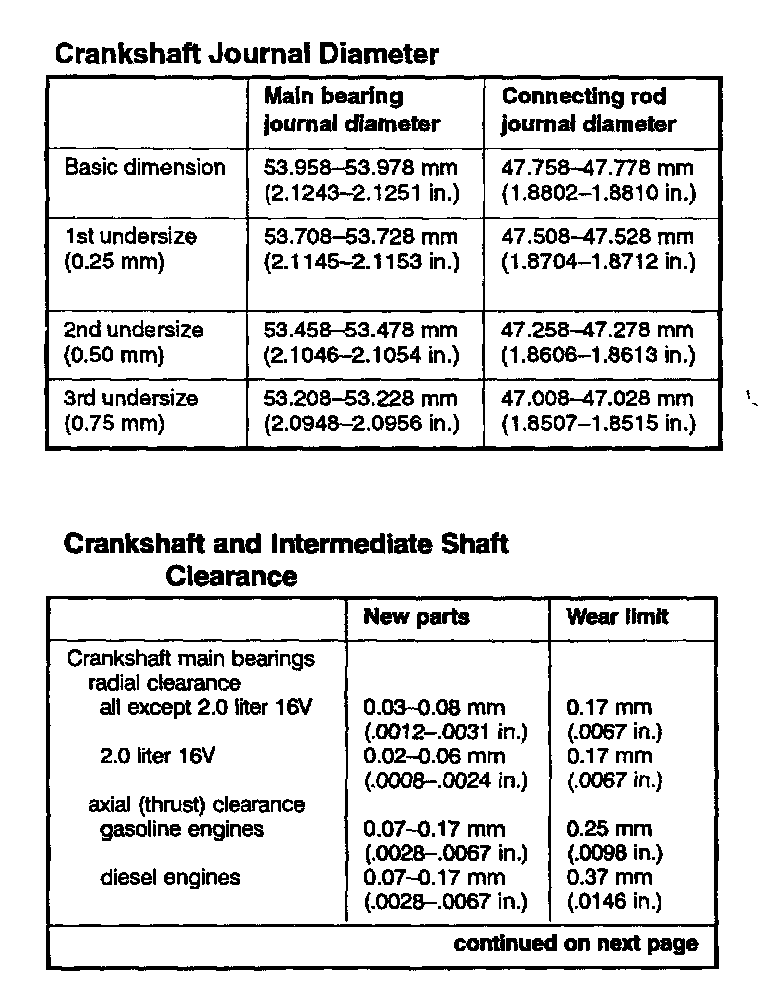

Crankshaft Specifications:

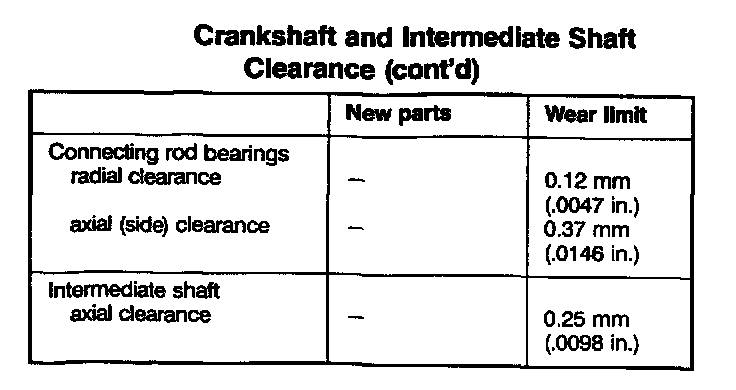

Crankshaft Specifications Continued:
