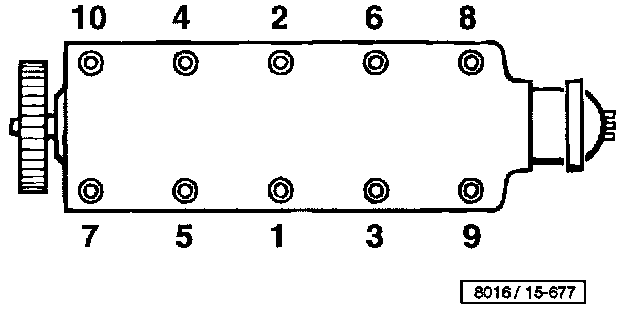

Cylinder Head Bolt Torque Sequence:
CYLINDER HEAD TIGHTENING TORQUE:
1st sequence: 40 Nm (30 ft lb)
2nd sequence: 60 Nm (43 ft lb)
Final sequence: plus 1/2 turn (180°)
Tightening Specifications
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1991 Volkswagen.
CYLINDER HEAD TIGHTENING TORQUE:
1st sequence: 40 Nm (30 ft lb)
2nd sequence: 60 Nm (43 ft lb)
Final sequence: plus 1/2 turn (180°)
