CIS-E System ECM Pin-Out Test

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1991 Volkswagen.

AI Repair Guides

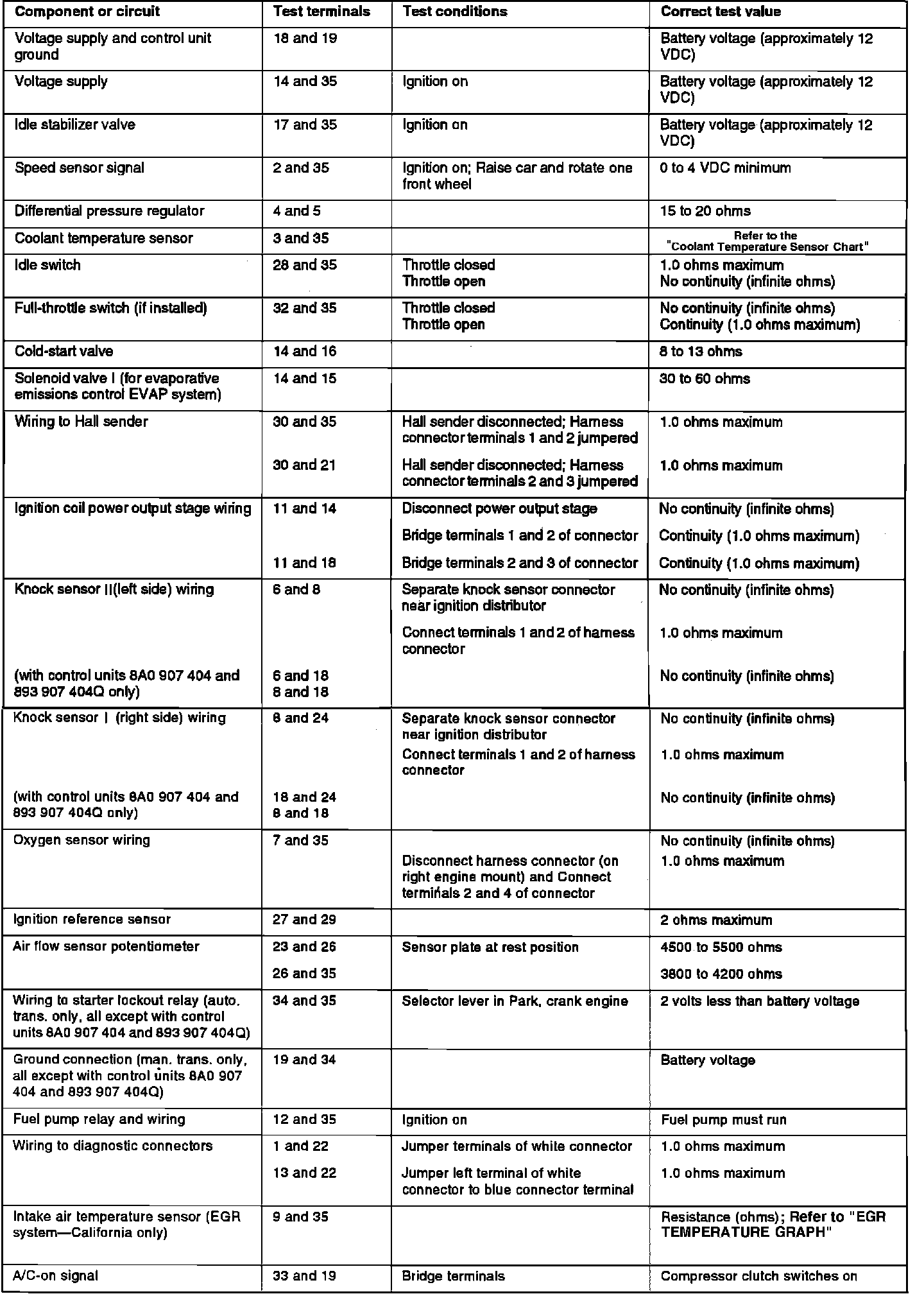

System Electrical Test/ECM Pin-Out Test

System Electrical Testing:





CIS-E SYSTEM





COOLANT TEMPERATURE SENSOR CHART

Intake Air Temperature Chart (EGR):





EGR TEMPERATURE CHART
