Engine Specifications and Clearances

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1983 Volkswagen.

AI Repair Guides

Engine specifications

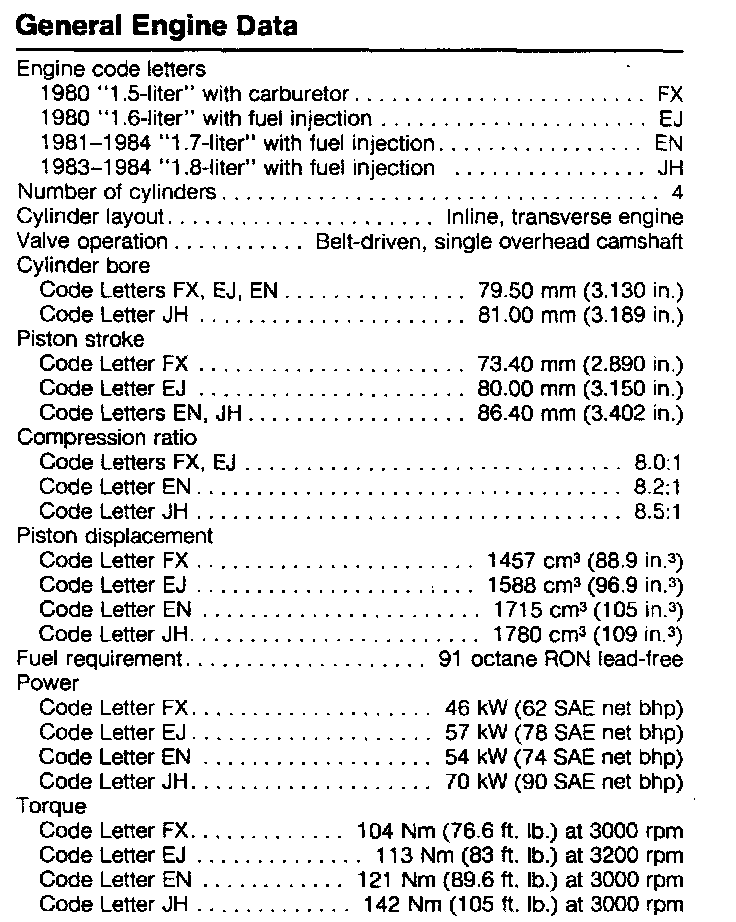

Engine Specifications:





Engine Specifications:

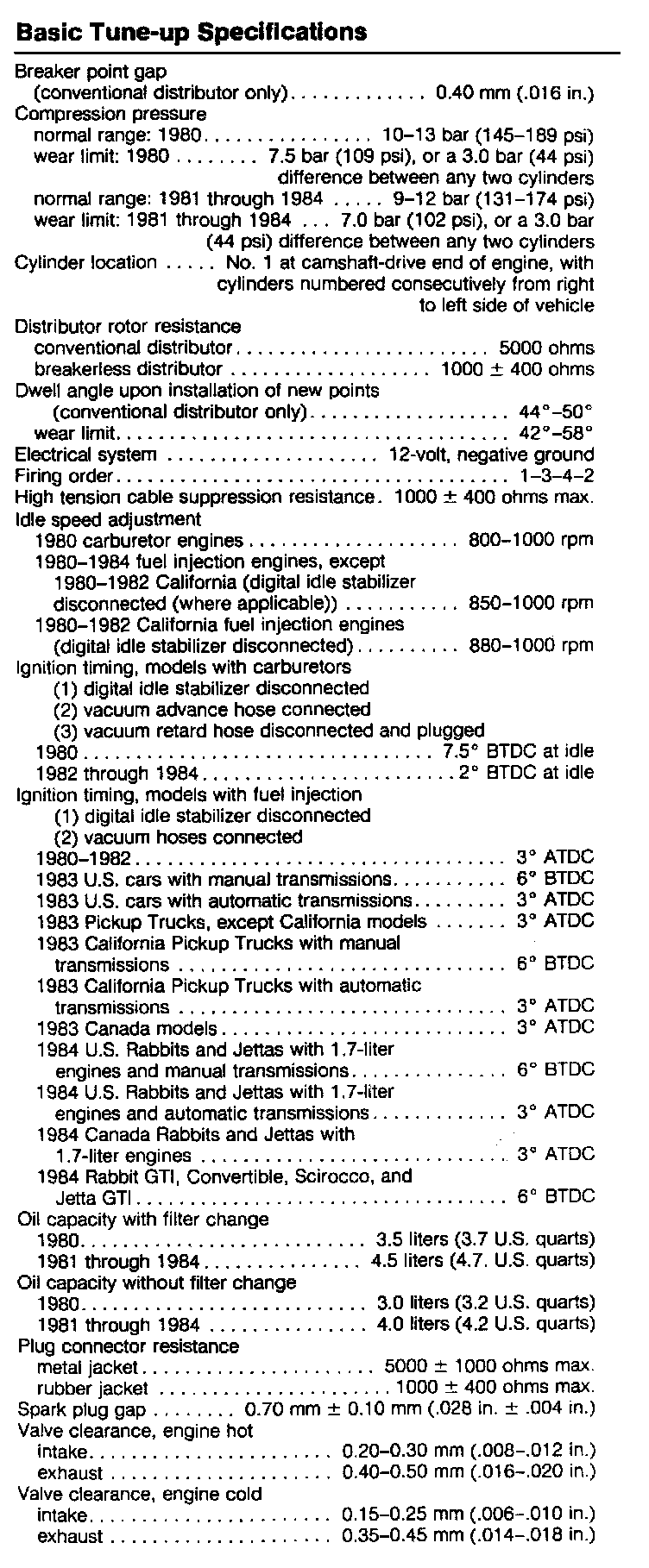

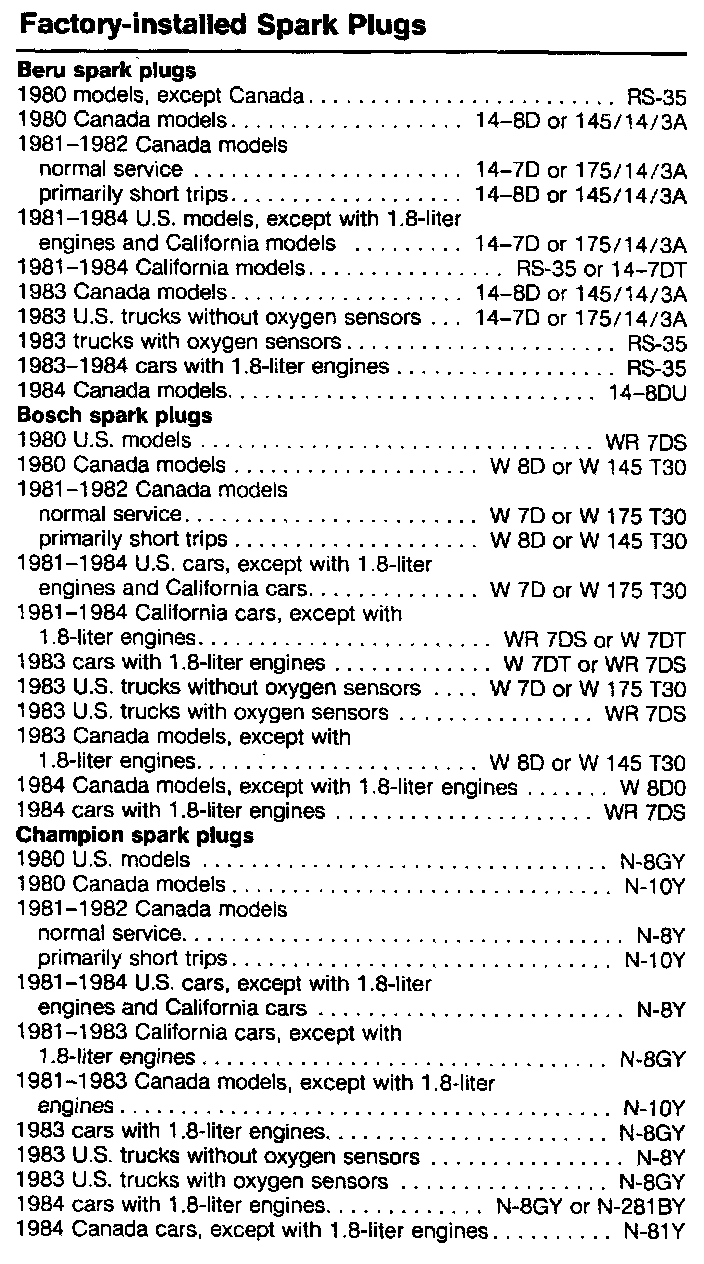

Sparkplug Specifications:

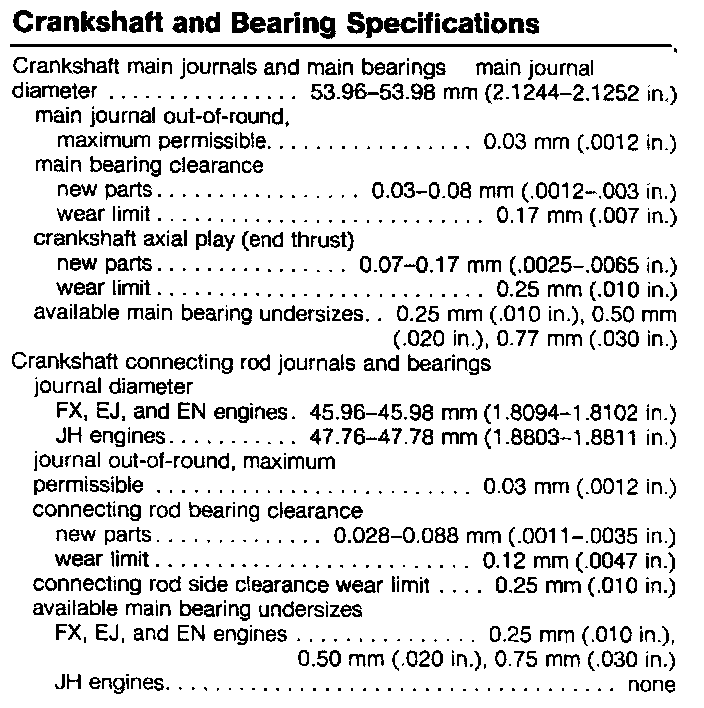

Crankshaft And Bearing Specifications:

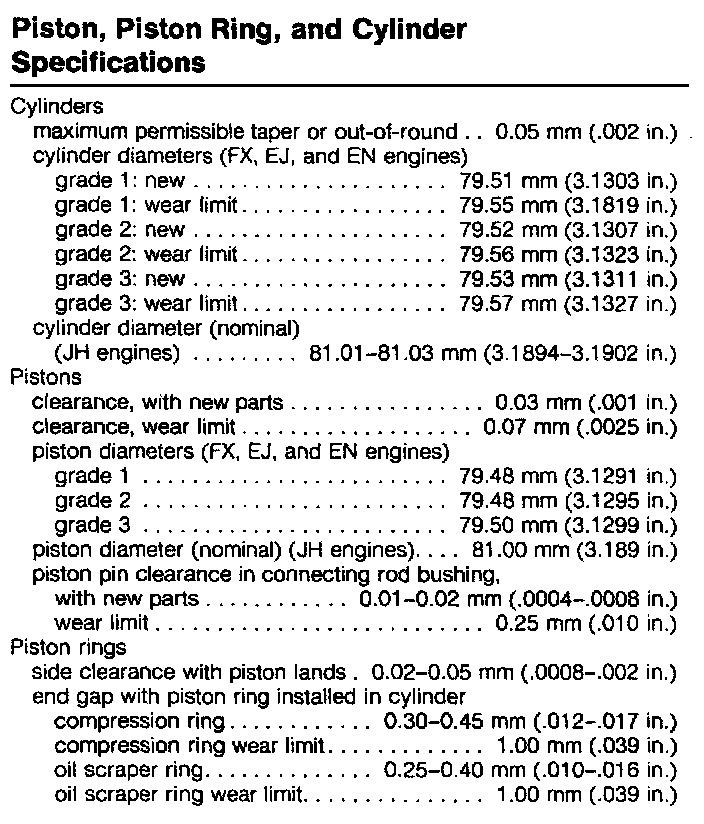

Piston And Cylinder Specifications:

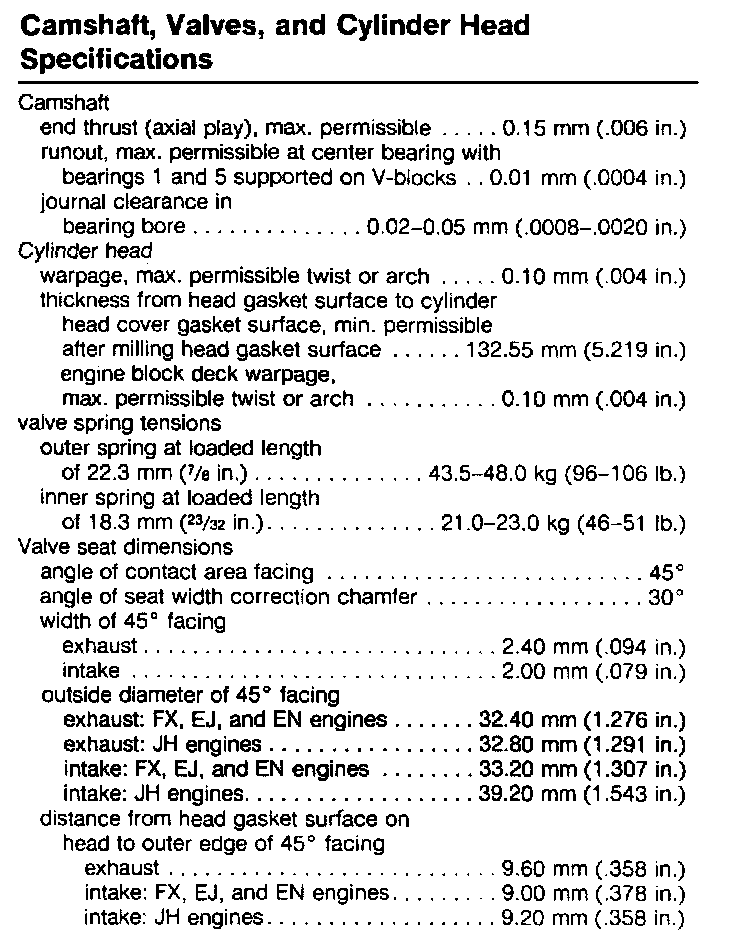

Camshaft, Valves And Cylinder Head Specifications:

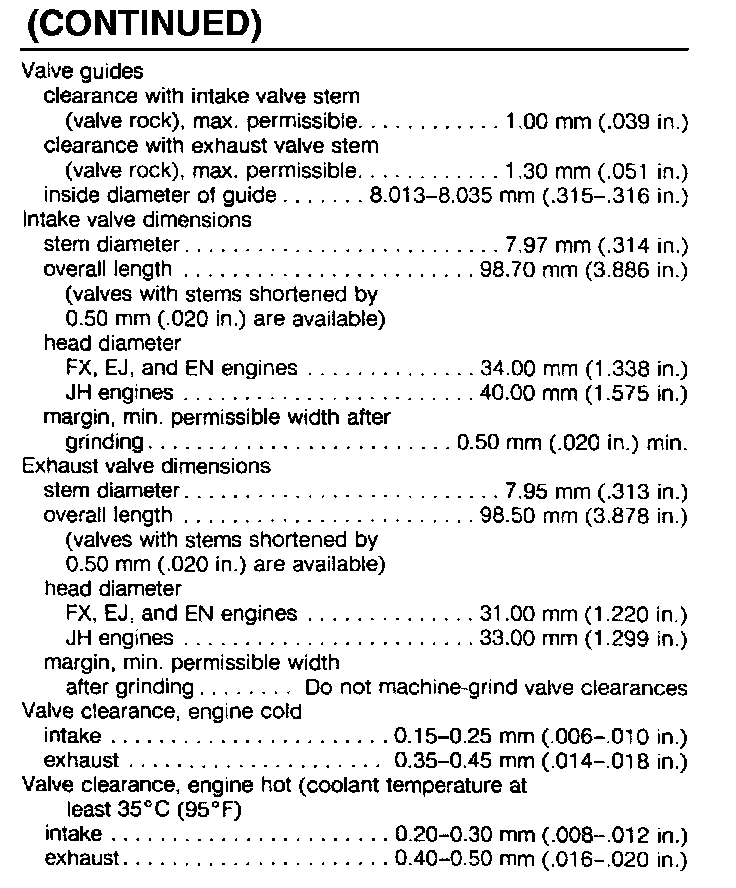

Continued:

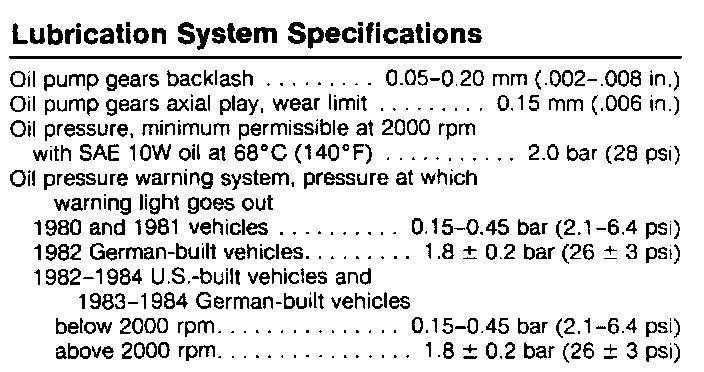

Lubrication Specifications:

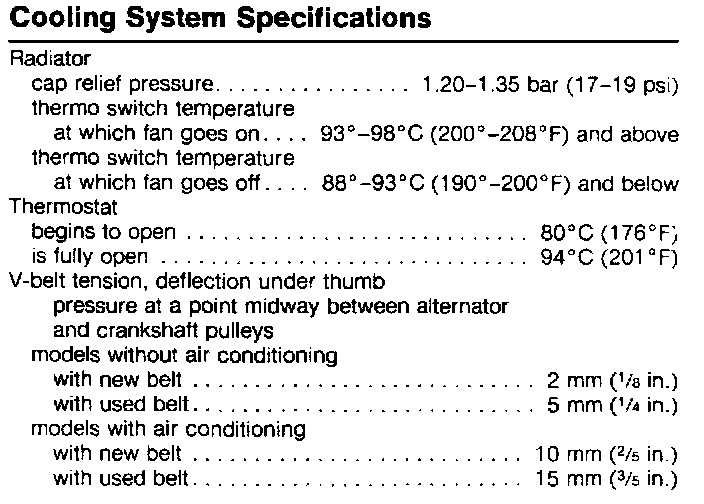

Cooling Specifications:

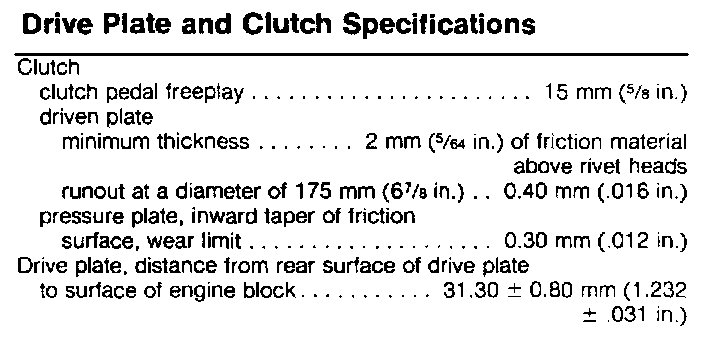

Drive Plate And Clutch Specifications:
