Crankshaft, Removing And Installing
Sensor Wheel (For Engine RPM) Installing
Threaded Connection Torque
Sensor Wheel Bolt: 10 Nm
- + 1/4 turn (90 °)
Always replace Sensor Wheel Bolt

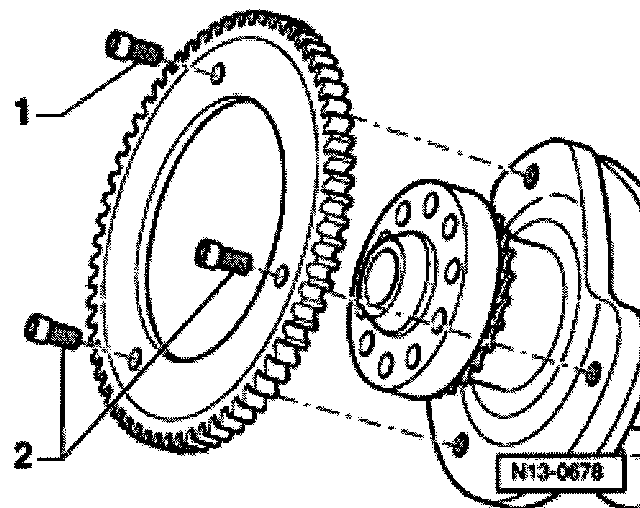

Tightening Order
1. First lightly tighten all new securing bolts by hand.
2. Tighten securing bolt -1- 10 Nm
- + 1/4 rotation (90 °).
3. Now tighten securing bolts -2- 10 Nm
- + 1/4 rotation (90 °).
