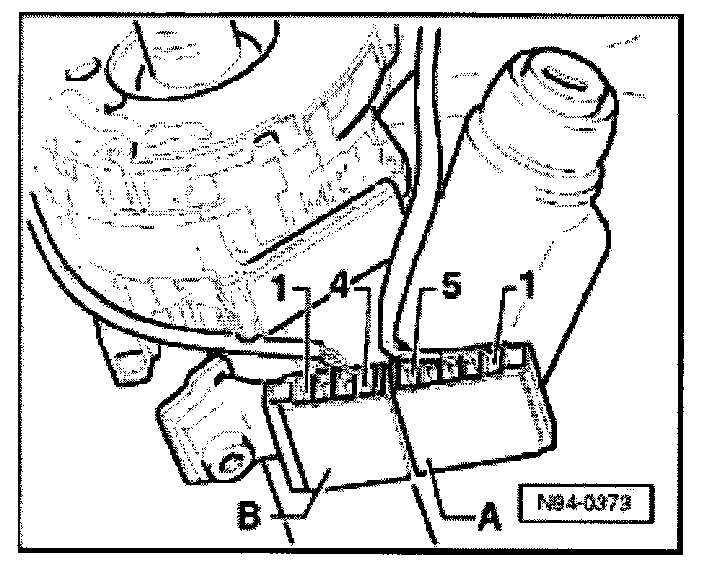

Multi-pin Connectors On Steering Column For Rear Window Wiper, Cruise Control System (CCS) And Multi-function Indicator (MFI) Switches, Connector Assignments
A - Connector, 5-pin for MFI and rear window wiper switch
1 - Terminal 31 (ground)
2 - Function (Mode)
3 - Memory selection switch (Memory)
4 - Cancel (Reset)
5 - Rear window wiper switch
B - Connector, 4-pin, CCS switch
1 - On
2 - Resume
3 - Memory (FIX)
4 - Terminal 15
