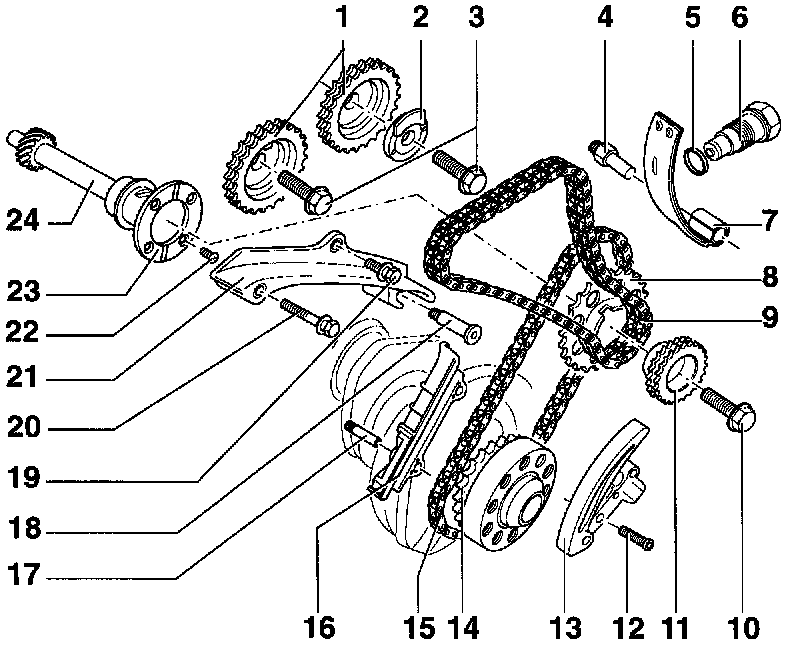

Legend
3 Bolt 100 Nm (74 ft lb)
- Oil bolt head contacting surface when installing
4 Pivot pin 25 Nm (18 ft lb)
6 Chain tensioner 30 Nm (22 ft lb)
10 Bolt 100 Nm (74 ft lb)
12 Bolt 10 Nm (7 ft lb)
17 locating pin w/out collar 25 Nm (18 ft lb)
18 locating pin with collar 25 Nm (18 ft lb)
19 Bolt 20 Nm (15 ft lb)
20 Bolt 20 Nm (15 ft lb)
22 Bolt 10 Nm (7 ft lb)
- Insert using "D6" locking fluid
