WINDOW / GLASS: POWER WINDOW MASTER SWITCH: INSPECTION

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(a) Check that the LED illuminates.

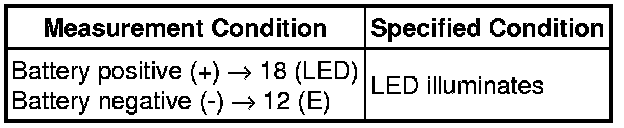

(1) Apply battery voltage to the power window regulator master switch assembly and check that the LED illuminates.

OK:





Text in Illustration:





(2) If the result is not as specified, replace the power window regulator master switch assembly.
