WINDOW / GLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: REMOVAL

1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

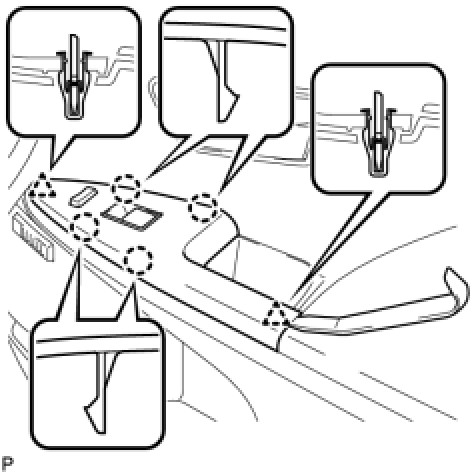

(a) Using a moulding remover, disengage the 2 clips and 4 claws.





(b) Disconnect the connector and remove the power window regulator switch assembly with front door armrest base panel.

2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Disengage the 2 claws and remove the power window regulator switch assembly.
