2GR-FE BATTERY / CHARGING: GENERATOR: REPLACEMENT
1. REPLACE GENERATOR DRIVE END FRAME BEARING

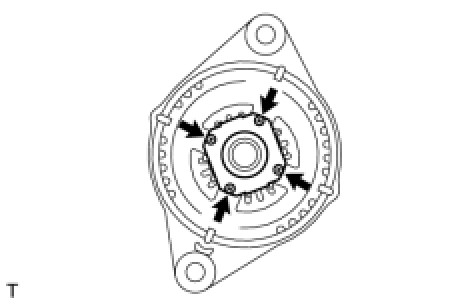

(a) Remove the 4 screws and bearing retainer from the drive end frame.

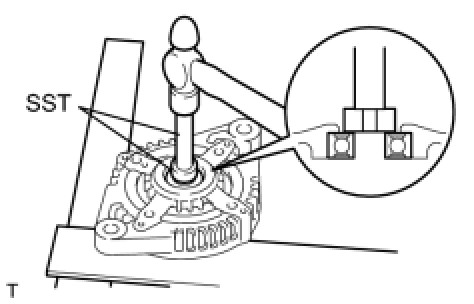

(b) Using SST and a hammer, tap out the drive end frame bearing from the drive end frame.
SST : 09950-60010
09951-00250
SST : 09950-70010
09951-07100

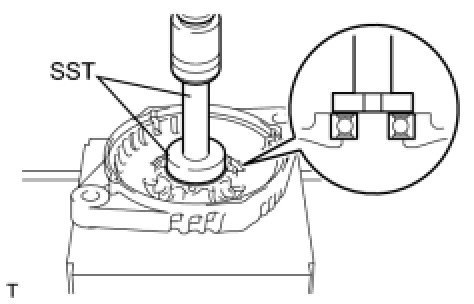

(c) Using SST and a press, press in a new generator drive end frame bearing.
SST : 09950-60010
09951-00470
SST : 09950-70010
09951-07100

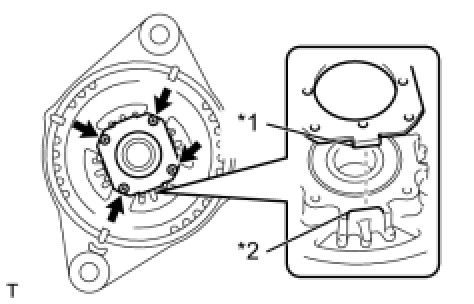

(d) Fit the tabs on the retainer plate into the cutouts on the drive end frame to install the retainer plate.
Text in Illustration:
(e) Install the 4 screws.
Torque : 2.3 Nm (23 kgf-cm, 20 in-lbf)
