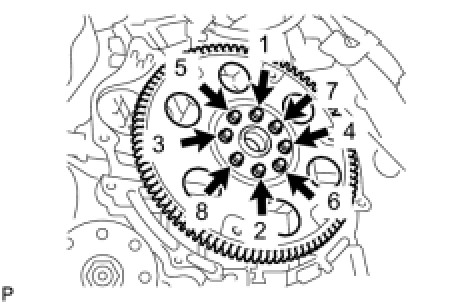

In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque 83 Nm (846 kgf-cm, 61 ft-lbf)
Flex Plate
