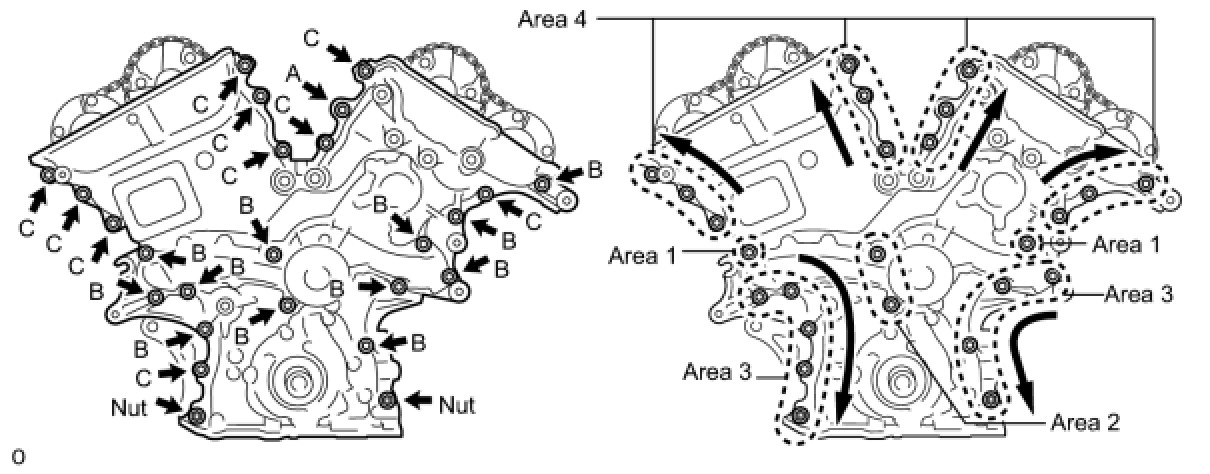

Tighten the timing chain cover with the 23 bolts and 2 nuts.

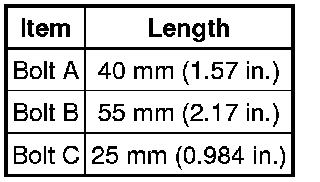

Bolt Length:
Fully tighten the bolts in area 1 and area 2.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Bolts and nuts in area 3.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Fully tighten the bolts in area 4.
Bolt A - Torque 43 Nm (438 kgf-cm, 32 ft-lbf)
Except bolt A - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
