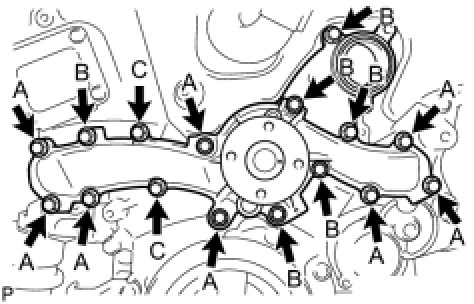

Install a new water pump gasket and the water pump assembly with the 16 bolts.
Bolt A - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Bolts B and C - Torque 11 Nm (112 kgf-cm, 8 ft-lbf)
Water Pump
