SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

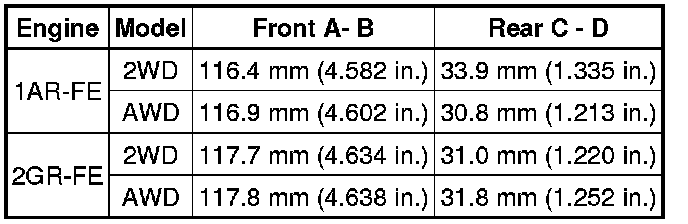

Vehicle Height (Unloaded Vehicle):
Measurement points:
* A: Ground clearance of front wheel center
* B: Ground clearance of No. 2 lower suspension arm bushing set bolt center
* C: Ground clearance of rear wheel center
* D: Ground clearance of strut rod set bolt center

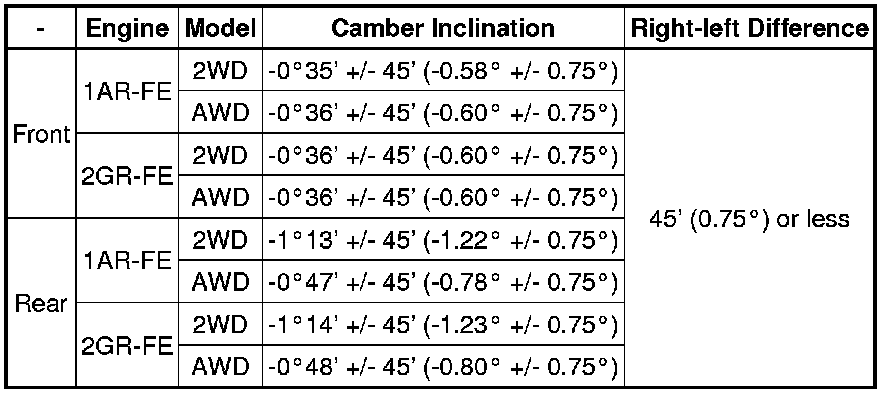

Camber (Unloaded Vehicle):

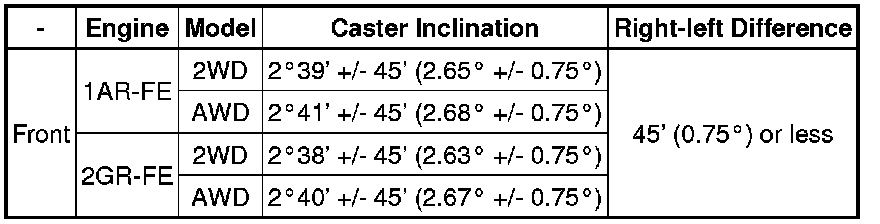

Caster (Unloaded Vehicle):

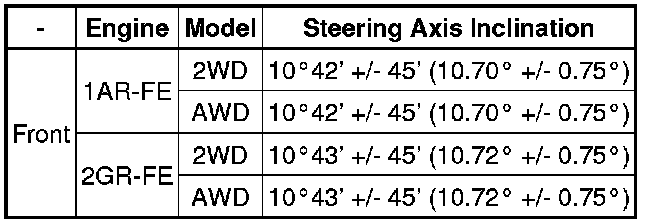

Steering Axis Inclination (Unloaded Vehicle):

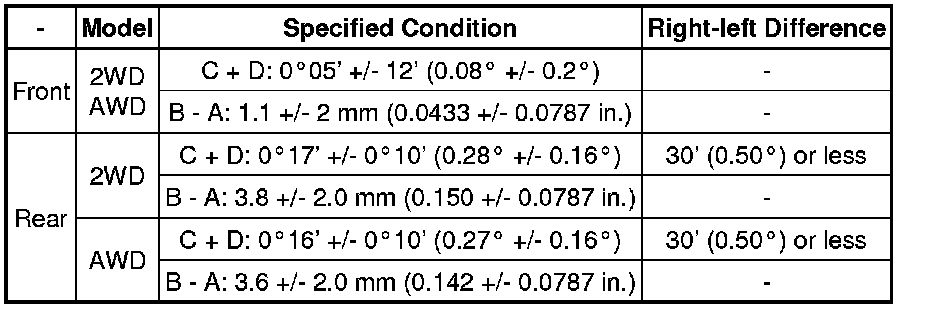

Toe-in:

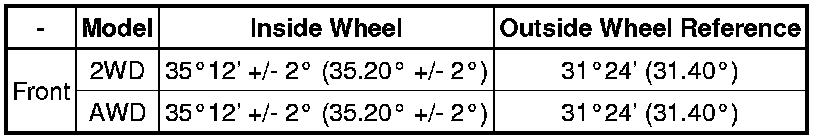

Wheel Turning Angle (Unloaded Vehicle):
