SPECIFICATIONS: 2GR-FE COOLING: SERVICE DATA

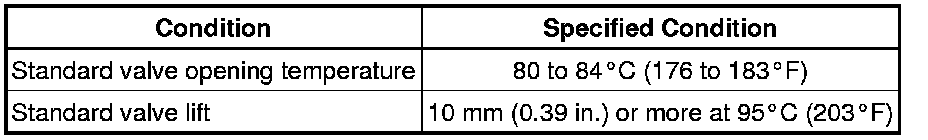

THERMOSTAT:

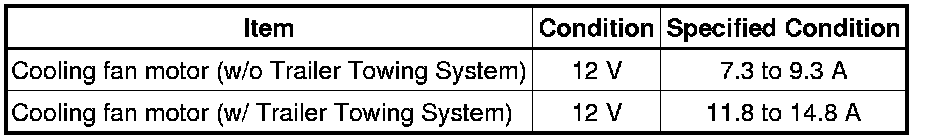

COOLING FAN MOTOR:

NO. 2 COOLING FAN MOTOR:

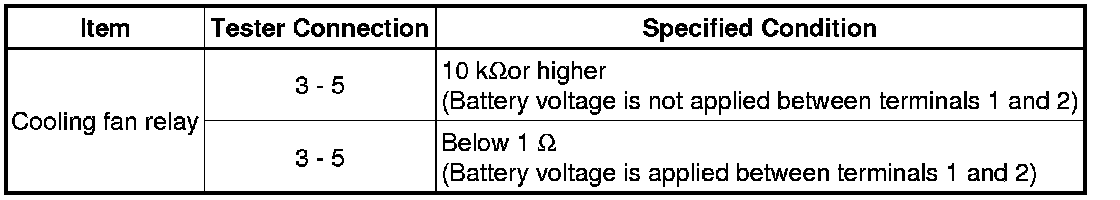

COOLING FAN RELAY:

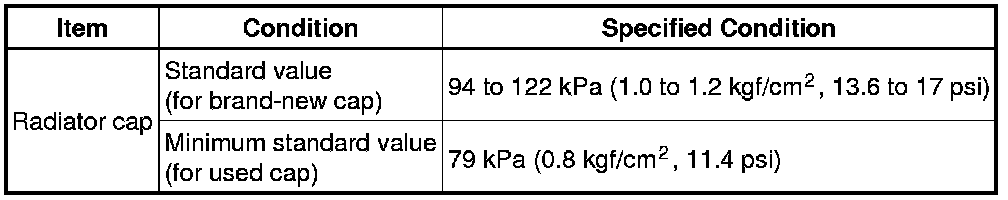

RADIATOR:
