LIGHTING (EXT): HEADLIGHT LEVELING ECU: INSTALLATION

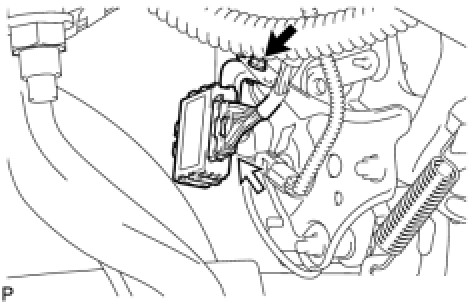

1. INSTALL HEADLIGHT LEVELING ECU ASSEMBLY

(a) Install the headlight leveling ECU assembly with the bolt.





(b) Connect the connector.

2. HEIGHT CONTROL SENSOR SIGNAL INITIALIZATION

Initialization

3. PREPARE VEHICLE FOR HEADLIGHT AIM ADJUSTMENT Adjustments

4. PREPARE FOR HEADLIGHT AIMING Adjustments

5. INSPECT HEADLIGHT AIMING Adjustments

6. ADJUST HEADLIGHT AIMING Adjustments
