U660F AUTOMATIC TRANSMISSION / TRANSAXLE: TCM: INSTALLATION
1. INSTALL TCM
(a) Install the TCM to the transaxle.

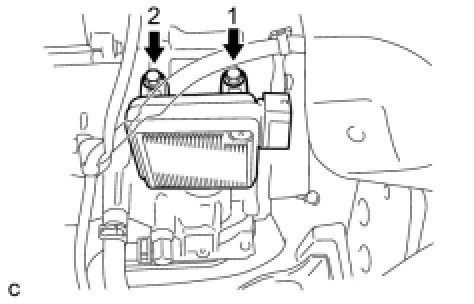

(b) Install and tighten the 2 bolts in the order shown in the illustration.
Torque : 11 Nm (112 kgf-cm, 8 ft-lbf)

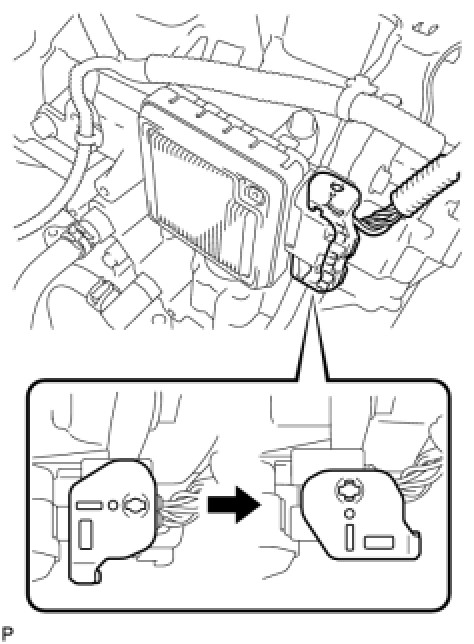

(c) Connect the connector to the TCM.
(d) Turn the lock lever and secure the connector with the lock lever.
2. INSTALL INLET NO. 1 AIR CLEANER Installation
3. INSTALL BATTERY Installation
4. INSTALL INLET NO. 2 AIR CLEANER Installation
5. INSTALL COOL AIR INTAKE DUCT SEAL Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
7. INSPECT AUTOMATIC TRANSAXLE SYSTEM
NOTICE:
If automatic transmission parts have been replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary Service Precautions.
