Engine Temperature Sensor: Testing and Inspection

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2010 Toyota.

AI Repair Guides




2GR-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR: INSPECTION

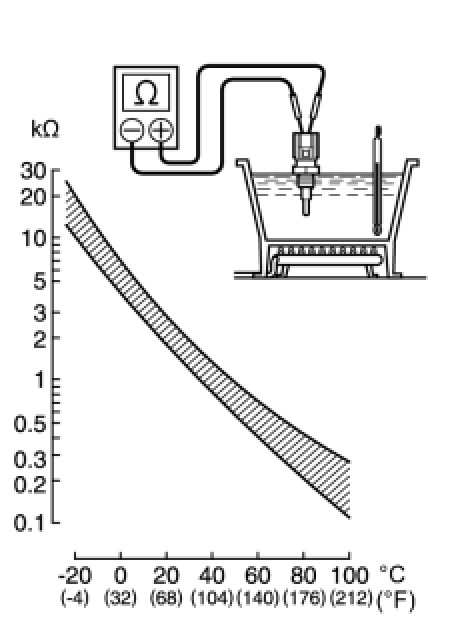

1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

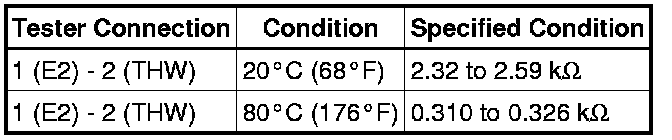

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





NOTICE:
If checking the sensor in water, be careful not to allow water to contact the terminals. After checking, wipe the water off the sensor.

(b) If the result is not as specified, replace the engine coolant temperature sensor.
