HEATING / AIR CONDITIONING: ROOM TEMPERATURE SENSOR: INSTALLATION
1. INSTALL ROOM TEMPERATURE SENSOR

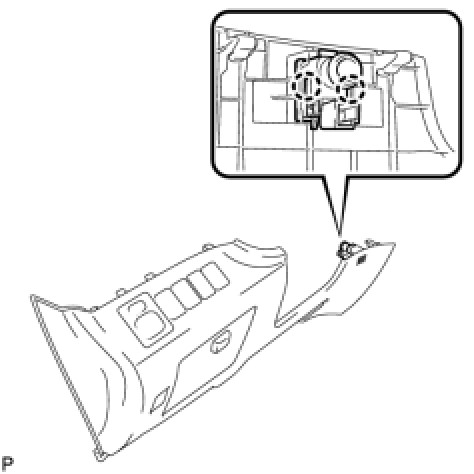

(a) Engage the 2 claws to install the room temperature sensor.
2. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation
3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation
4. INSTALL FRONT DOOR SCUFF PLATE LH Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
