HEATING / AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION

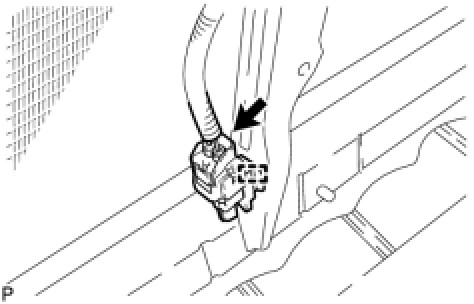

1. INSTALL AMBIENT TEMPERATURE SENSOR
(a) Engage the clamp to install the ambient temperature sensor.
(b) Connect the connector.
2. INSTALL RADIATOR GRILLE Installation
3. INSTALL RADIATOR GRILLE PROTECTOR Installation
4. INSTALL COOL AIR INTAKE DUCT SEAL Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
