SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

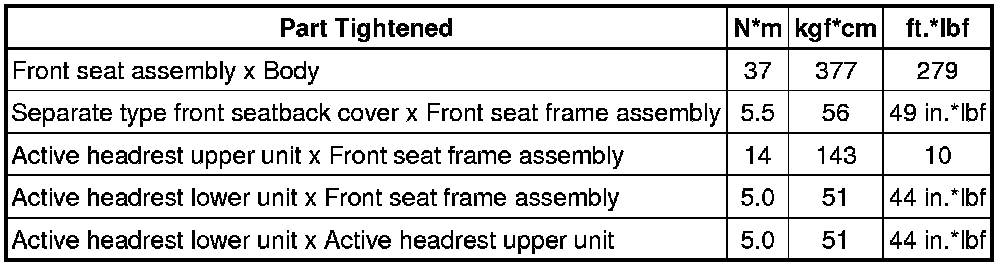

FRONT SEAT ASSEMBLY

FRONT SEAT ASSEMBLY:

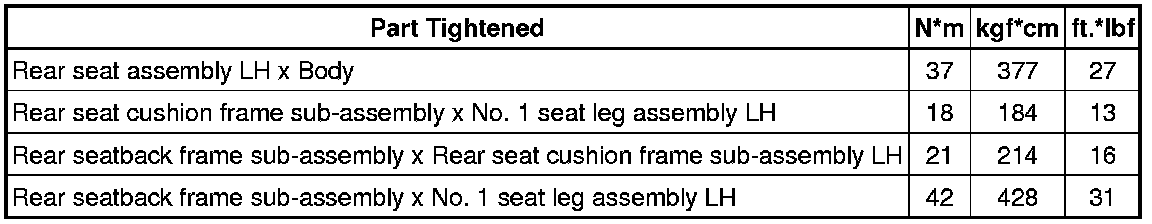

REAR SEAT ASSEMBLY (for LH Side)

REAR SEAT ASSEMBLY (for LH Side):

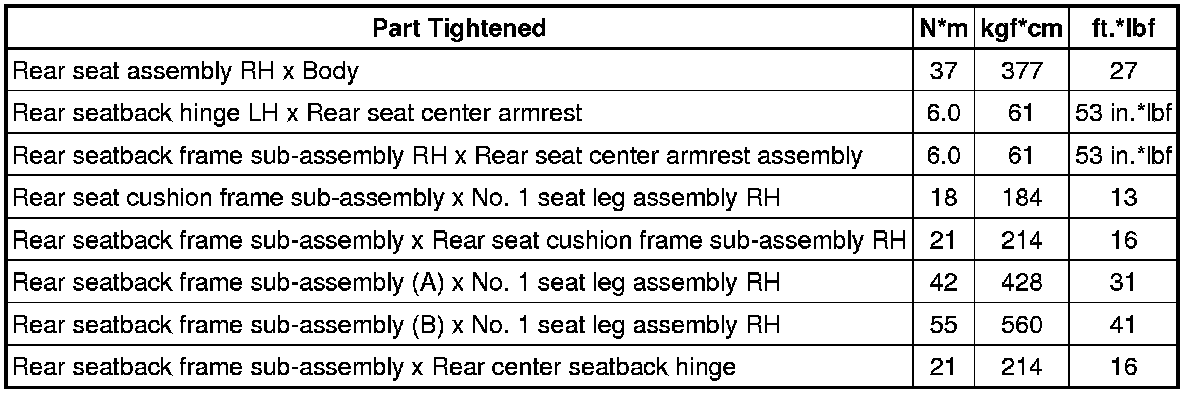

REAR SEAT ASSEMBLY (for RH Side)

REAR SEAT ASSEMBLY (for RH Side):
