SEAT: SEAT HEATER CONTROL: INSTALLATION

1. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY

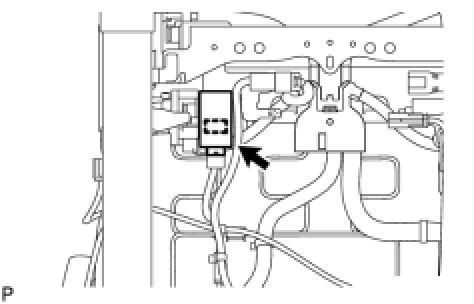

(a) Engage the clamp and install the seat heater control sub-assembly.





(b) Connect the connector.

2. INSTALL FRONT SEAT ASSEMBLY Installation

3. INSTALL FRONT SEAT REAR INNER TRACK COVER Installation

4. INSTALL FRONT SEAT REAR OUTER TRACK COVER Installation

5. INSTALL FRONT SEAT HEADREST ASSEMBLY Installation

6. INSPECT FRONT SEAT ASSEMBLY Installation

7. INSPECT SRS WARNING LIGHT

Diagnosis System
