NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: Multi-media Interface ECU Power Source Circuit
- Multi-media Interface ECU Power Source Circuit
DESCRIPTION
This circuit provides power to the multi-media interface ECU.

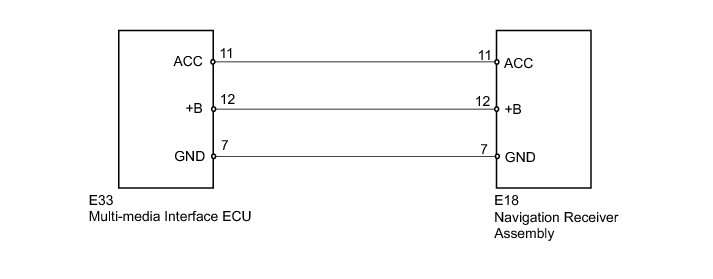

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. INSPECT MULTI-MEDIA INTERFACE ECU
(a) Disconnect the E33 multi-media interface ECU connector.
(b) Measure the voltage according to the value(s) in the table below.

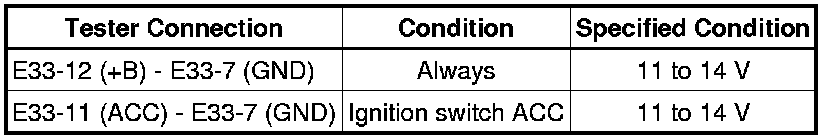

Standard Voltage:
Text in Illustration
Text in Illustration:
NG -- CHECK HARNESS AND CONNECTOR
OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
2. CHECK HARNESS AND CONNECTOR
(a) Disconnect the E18 navigation receiver assembly connector.
(b) Measure the resistance according to the value(s) in the table below.

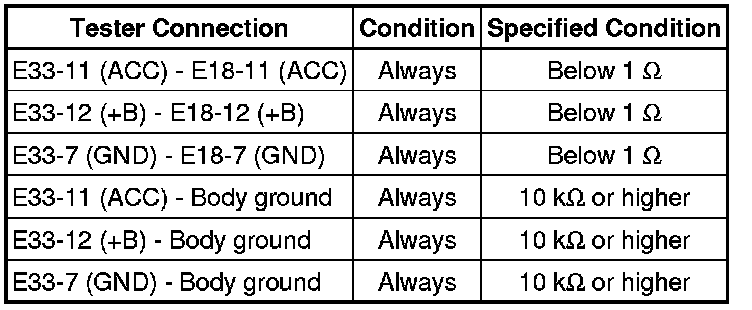

Standard Resistance:

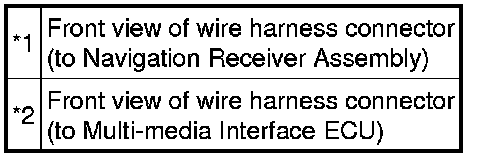

Text in Illustration
Text in Illustration:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE NAVIGATION RECEIVER ASSEMBLY Removal
