Manual Transmission/Transaxle

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2003 Toyota.

AI Repair Guides

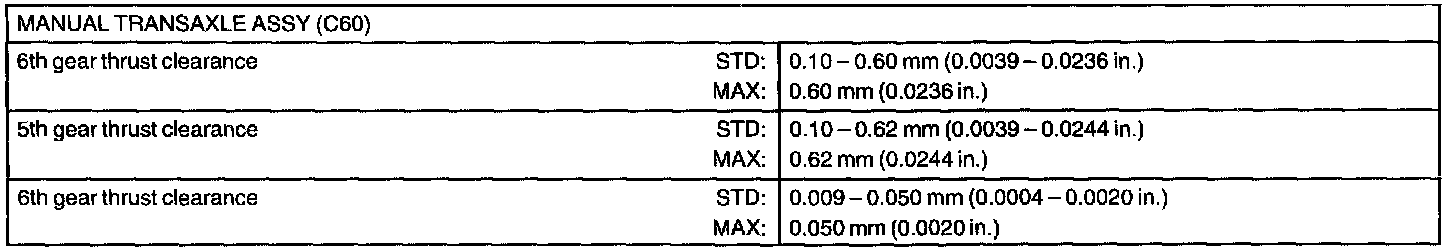

Manual Transaxle Assy - Service Data Part 1:

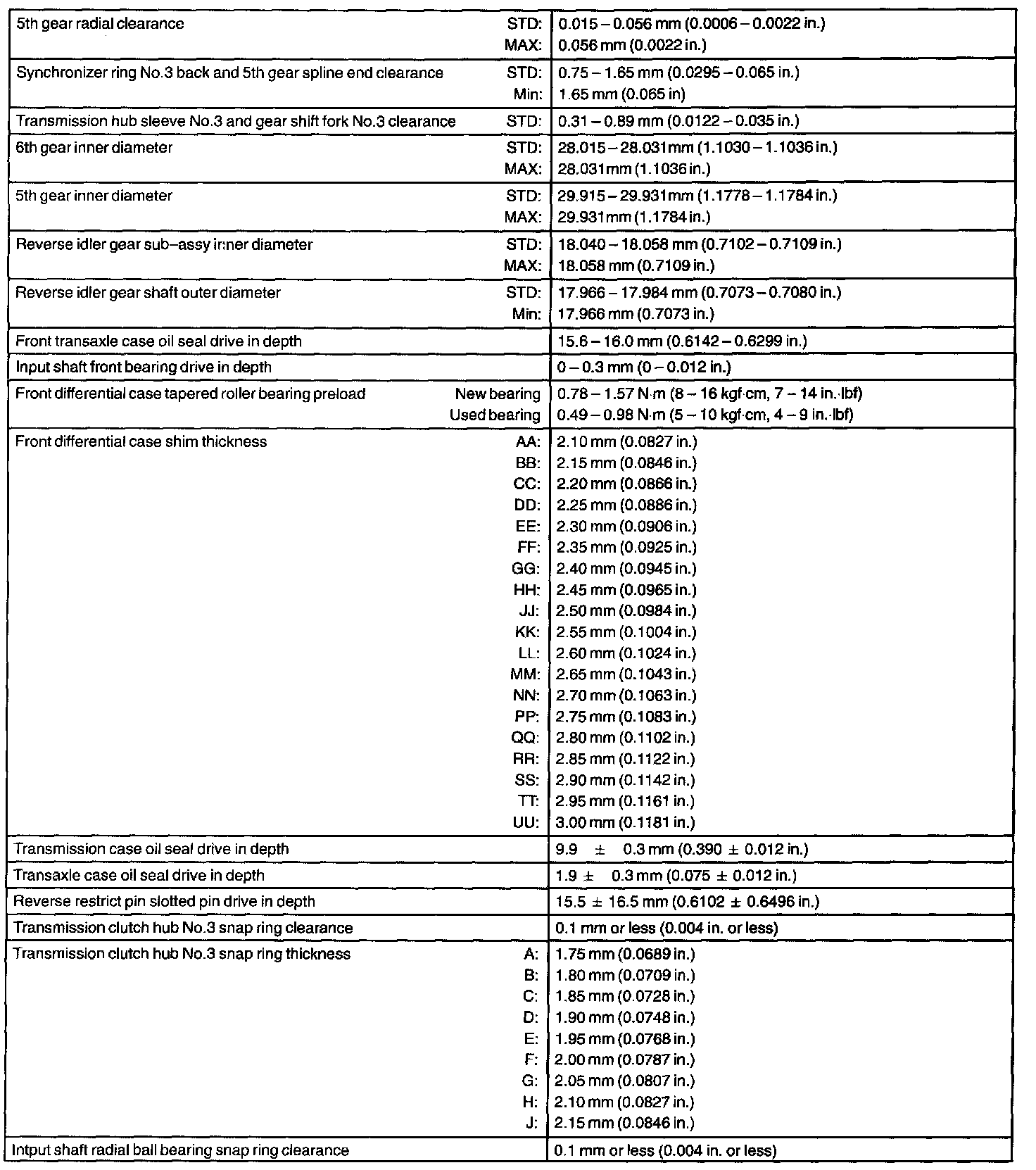

Manual Transaxle Assy - Service Data Part 2:



Manual Transaxle Assy - Service Data Part 3:

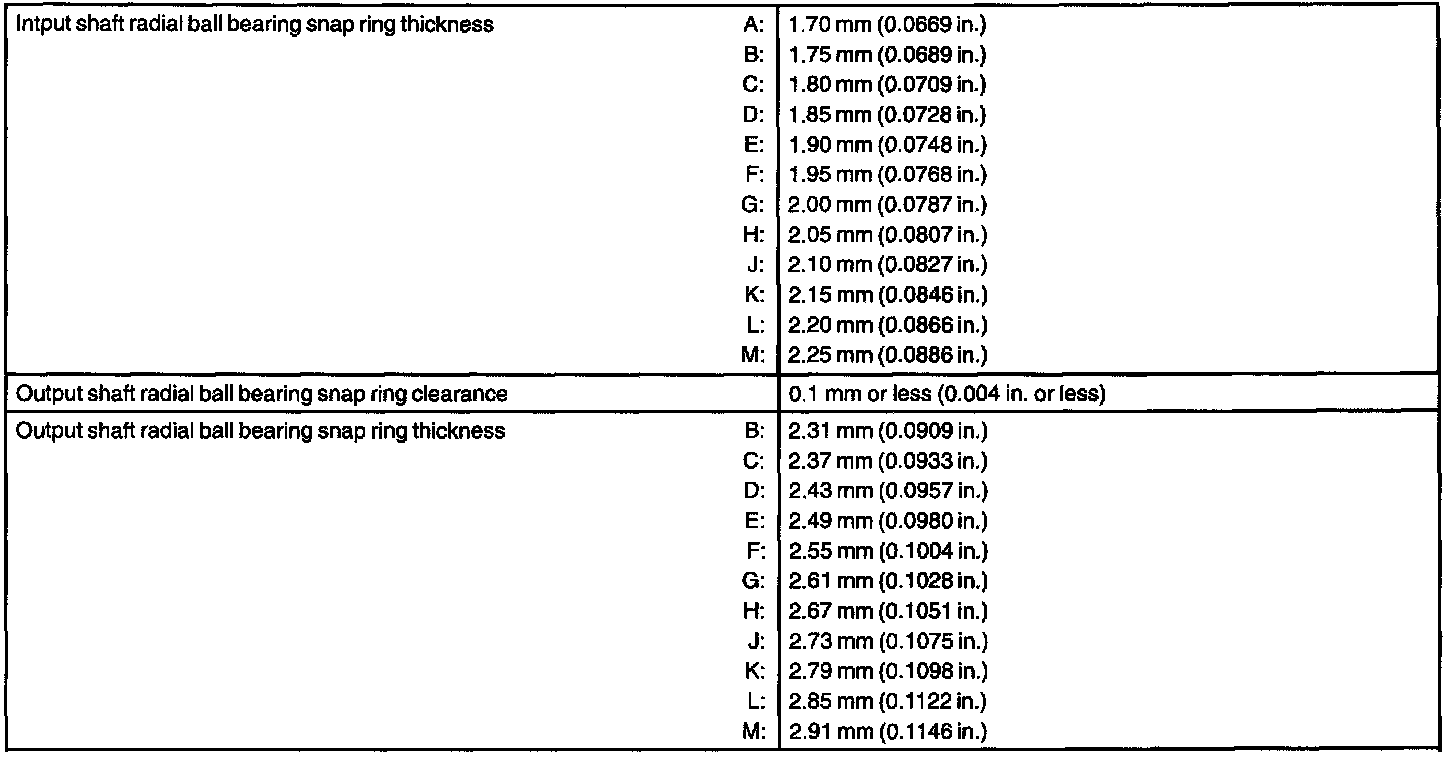

Input Shaft Assy - Service Data:

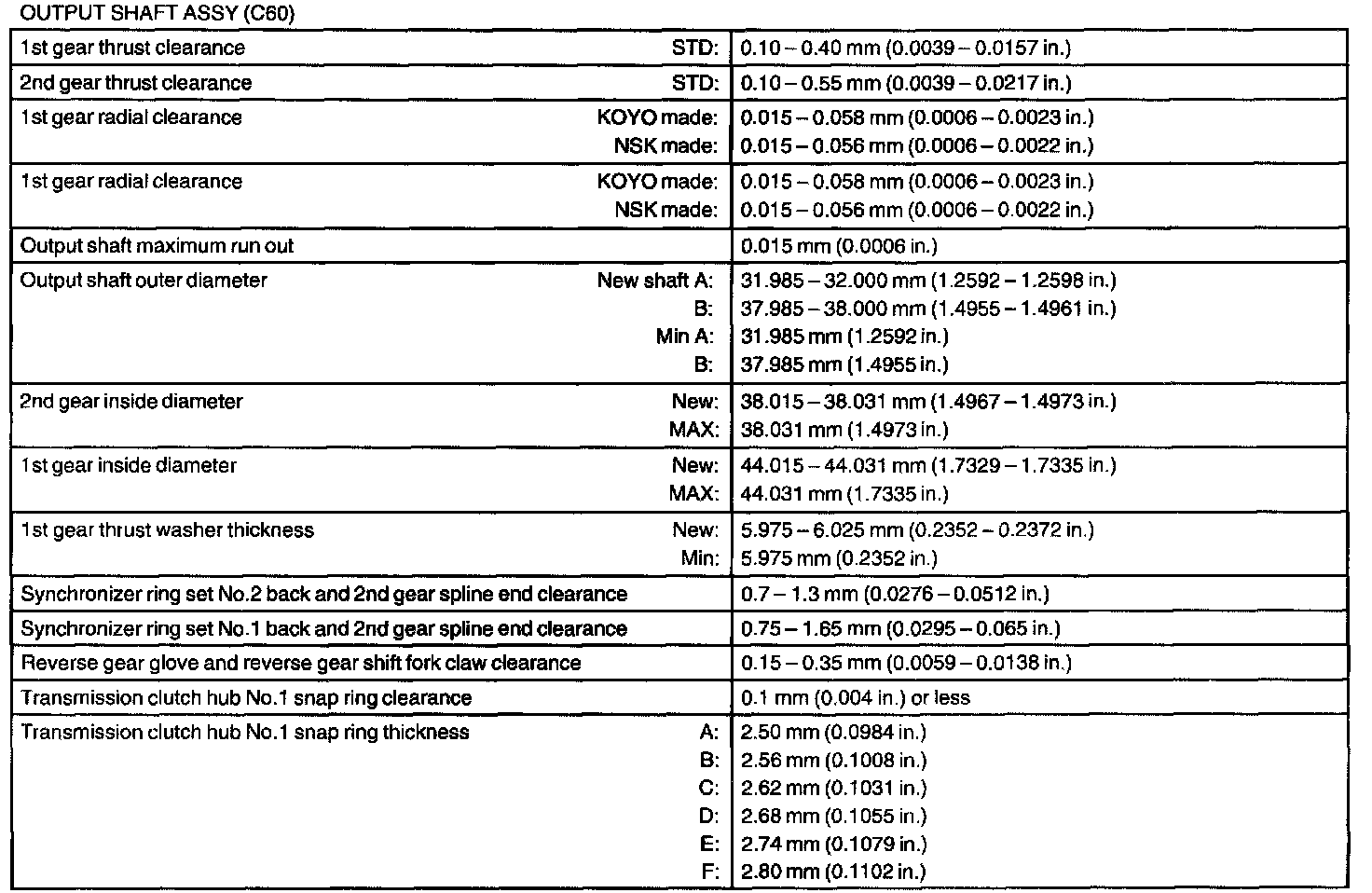

Output Shaft Assy - Service Data:

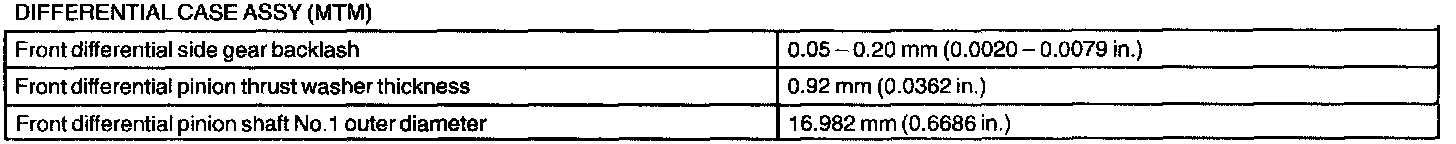

Differential Case Assy (MTM) Part 1:

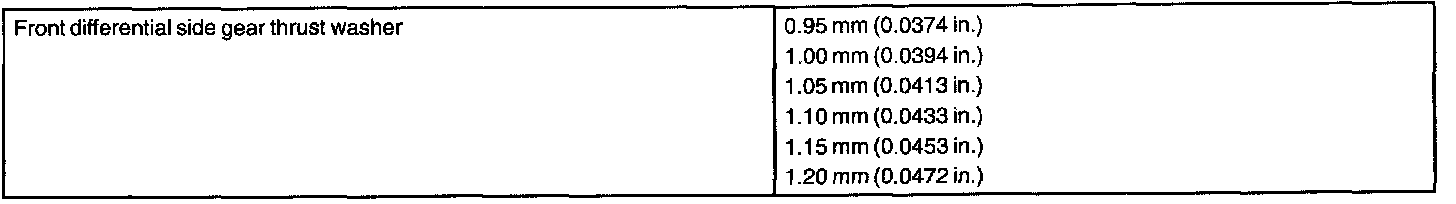

Differential Case Assy (MTM) Part 2:

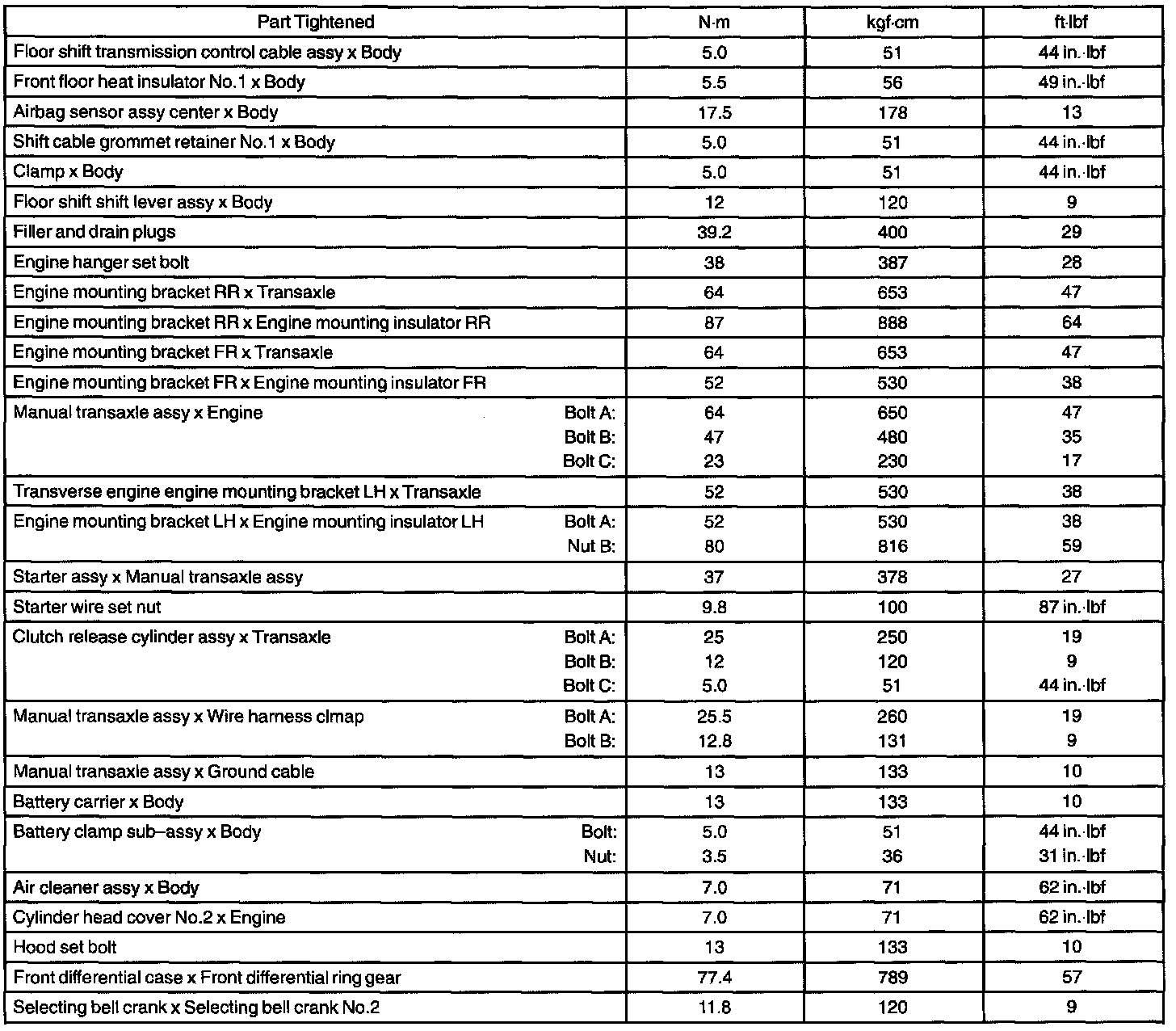

Manual Transmission Transaxle - Torque Specification:

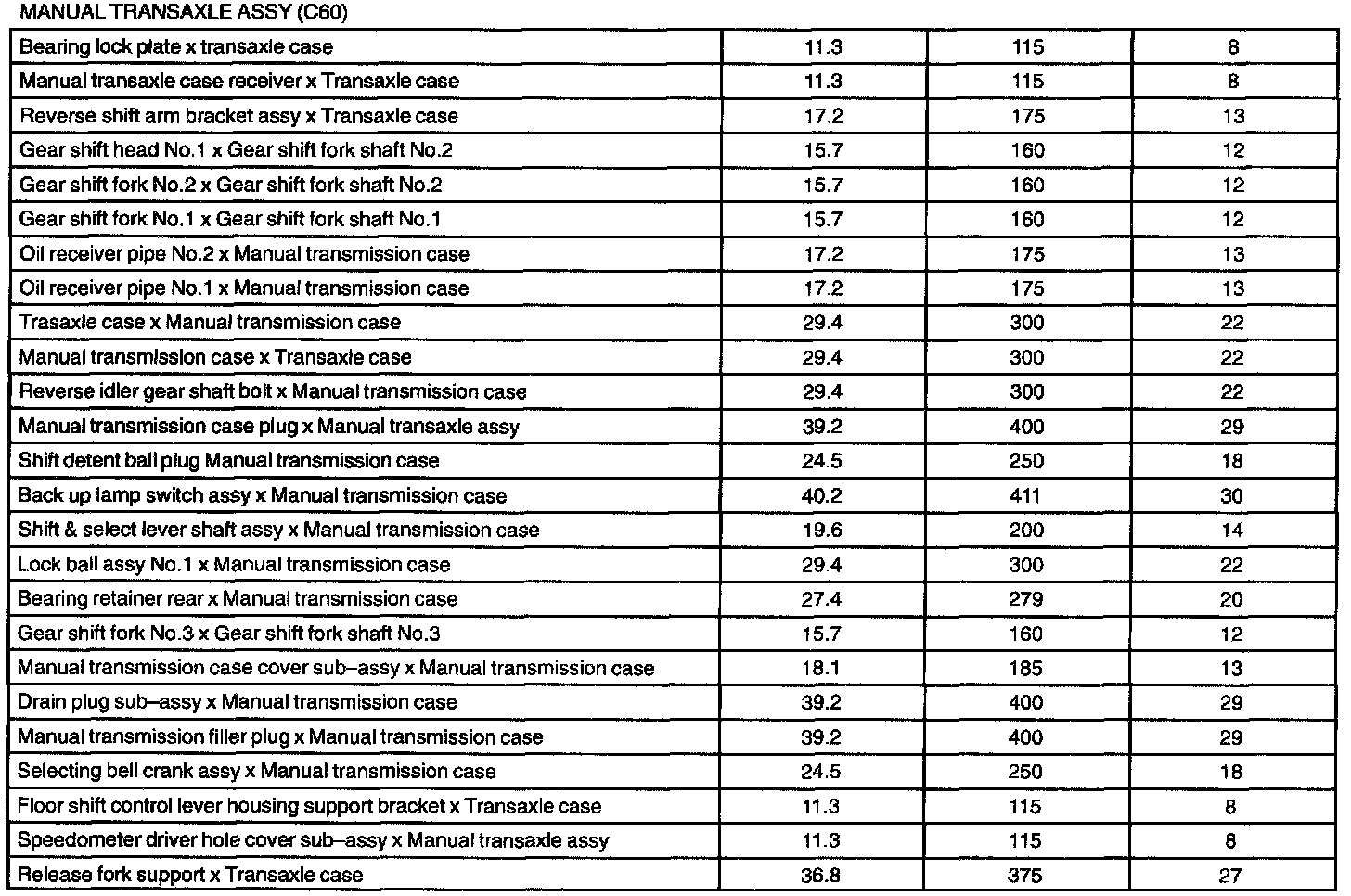

Manual Transaxle Assy - Torque Specification:
