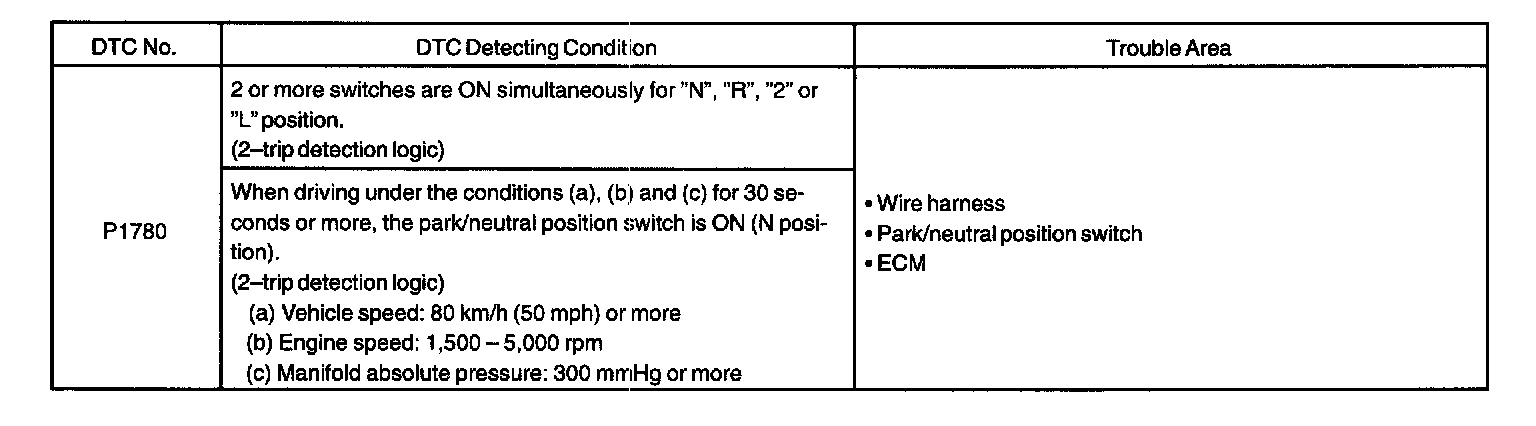

DTC Detecting Condition:
The park/neutral position switch detects the shift lever position and sends the signals to the ECM.
Wiring Diagram:
Step 1:
Step 2 - 3:

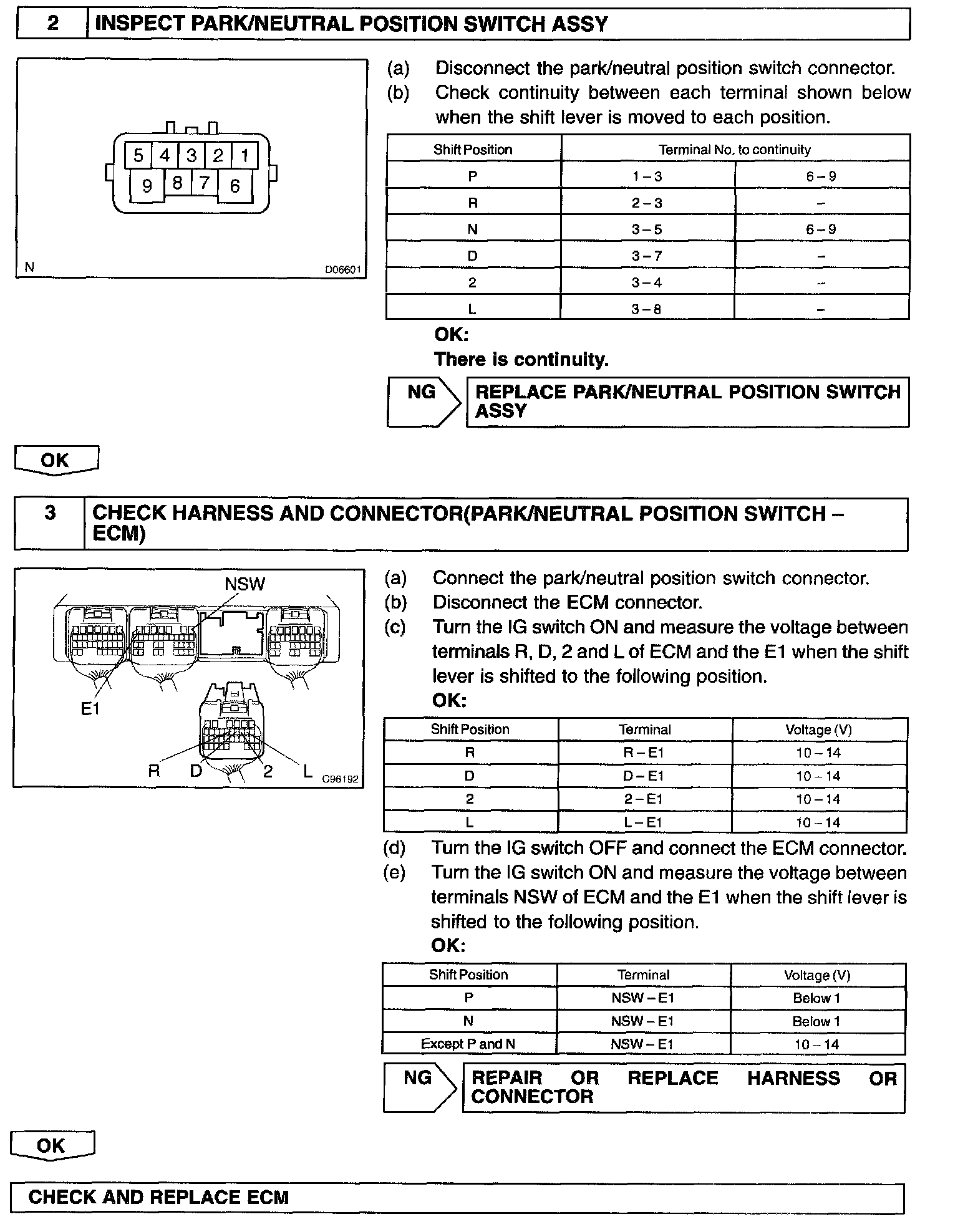

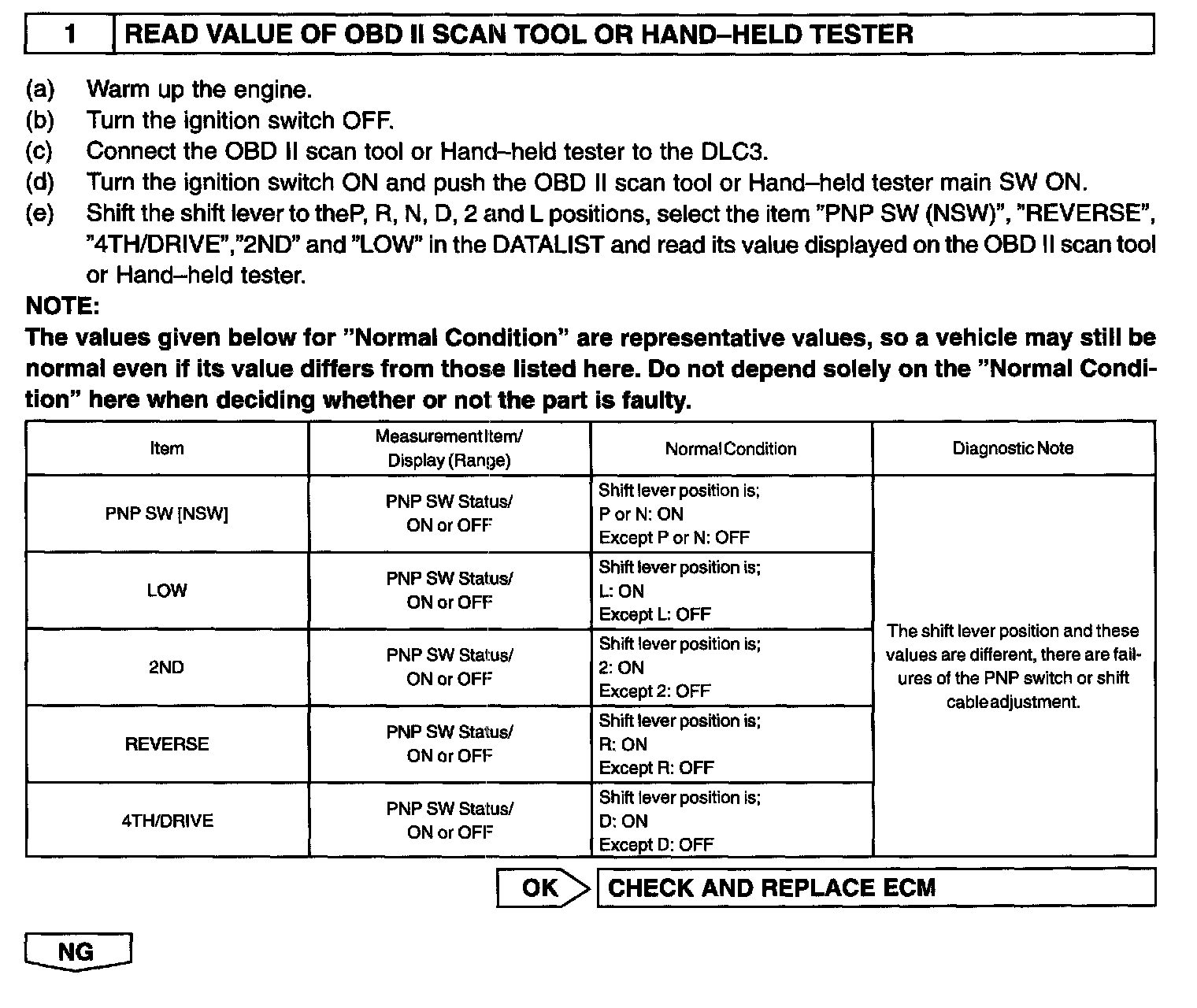

INSPECTION PROCEDURE
Park/Neutral Position Switch Circuit
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2003 Toyota.
The park/neutral position switch detects the shift lever position and sends the signals to the ECM.
INSPECTION PROCEDURE
