Main Relay (Computer/Fuel System): Locations

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2003 Toyota.

AI Repair Guides

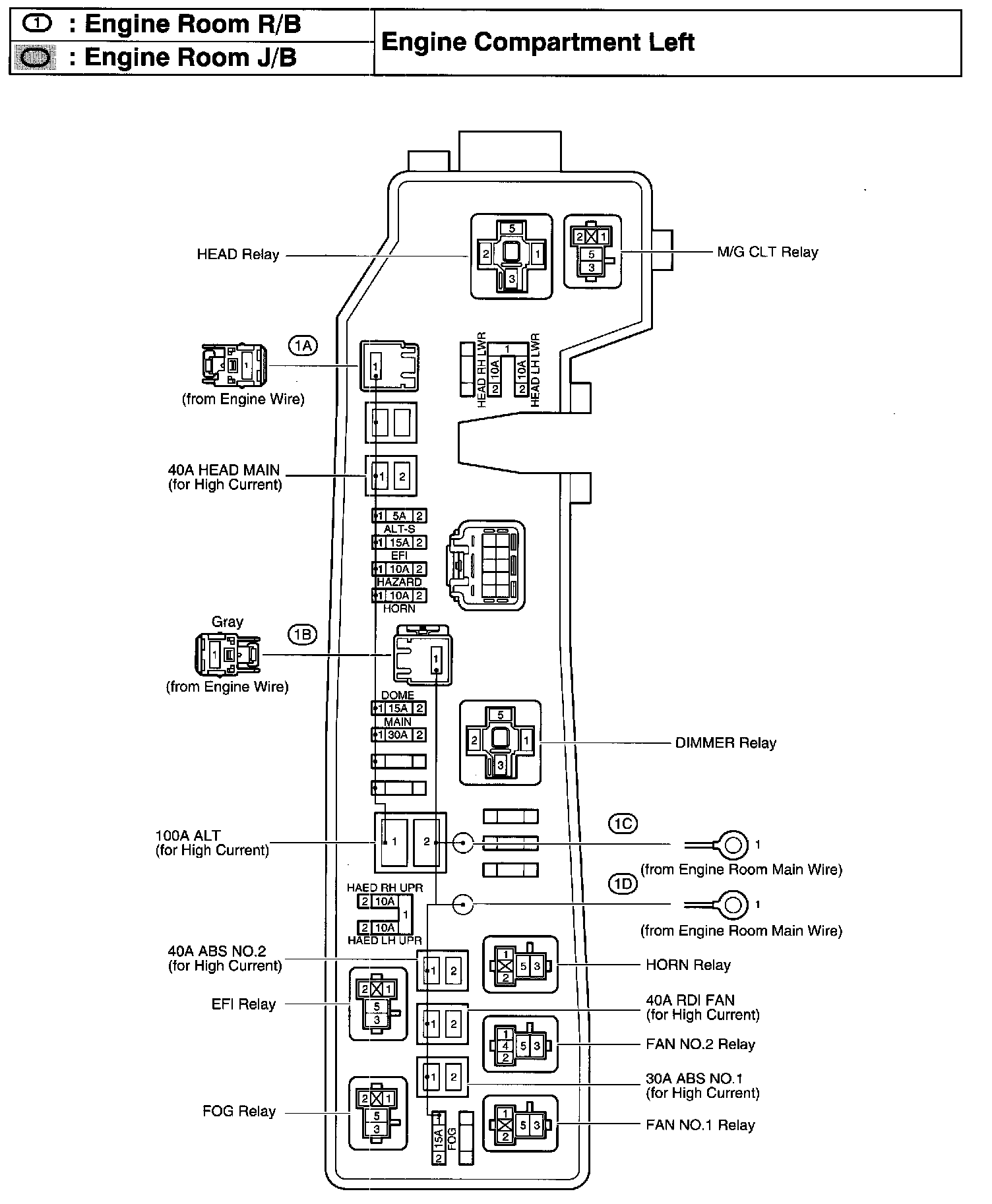

Engine Room R/B, J/B - Engine Compartment Left:

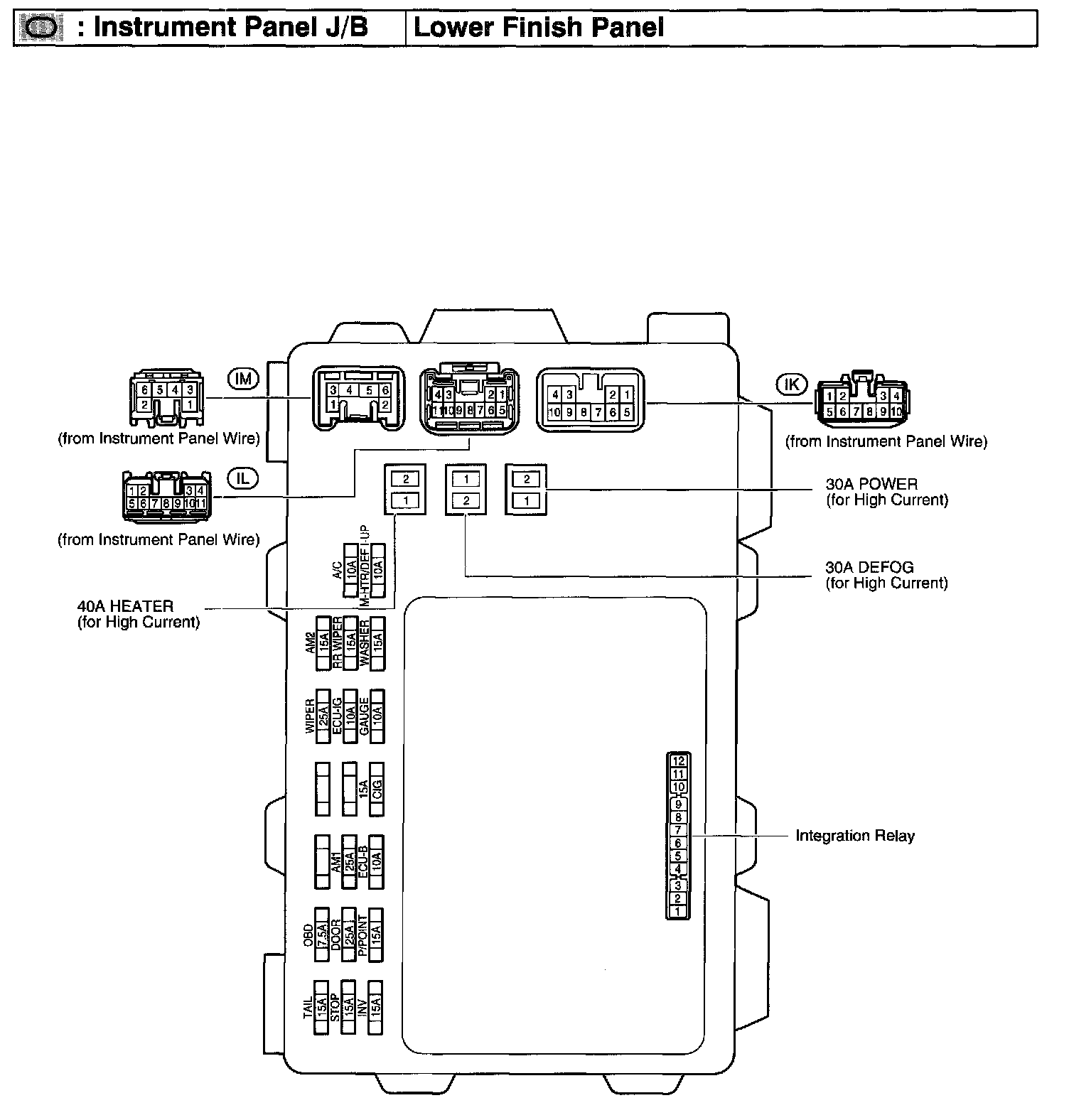

Instrument Panel J/B - Lower Finish Panel:

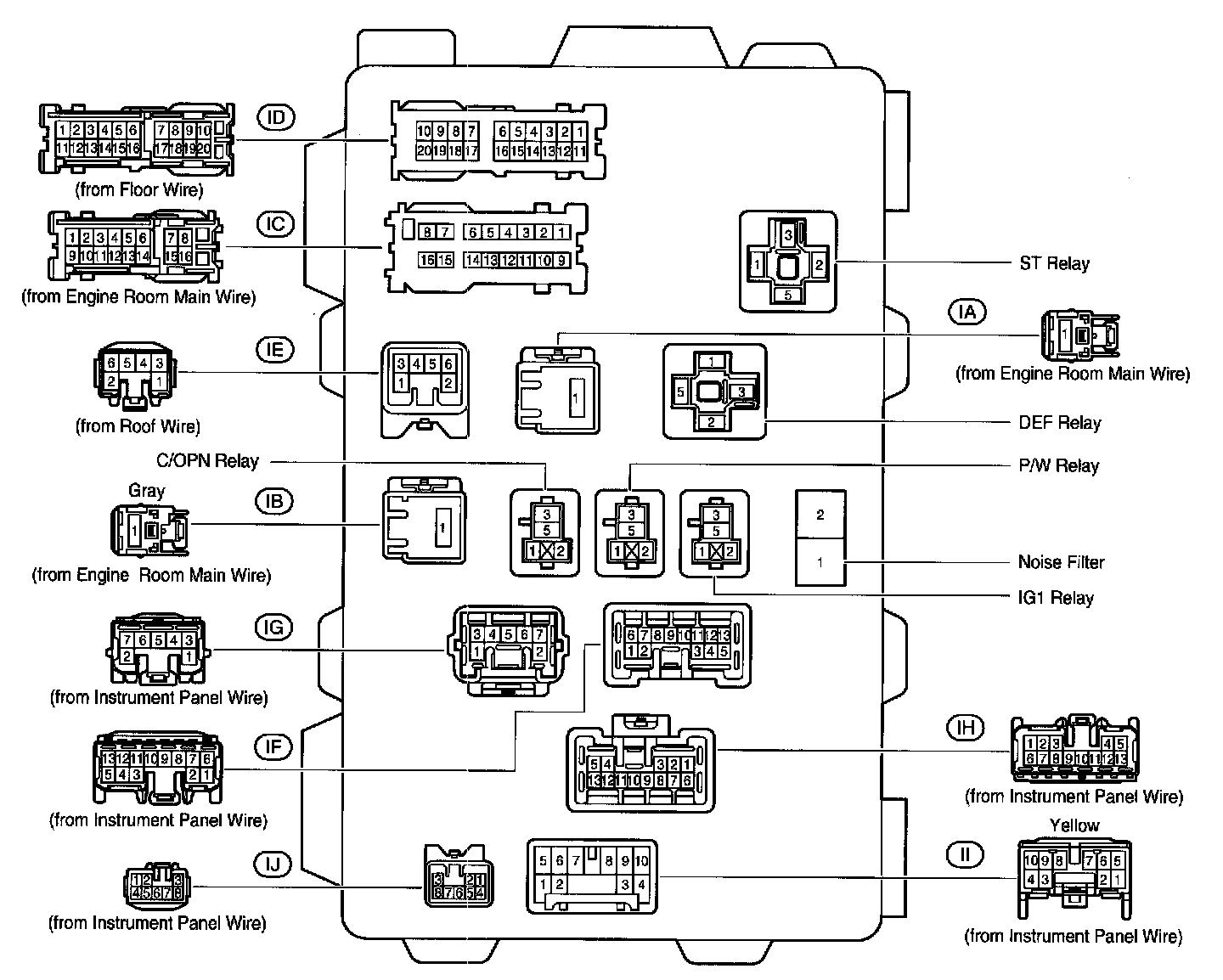

Instrument Panel J/B - Lower Finish Panel:

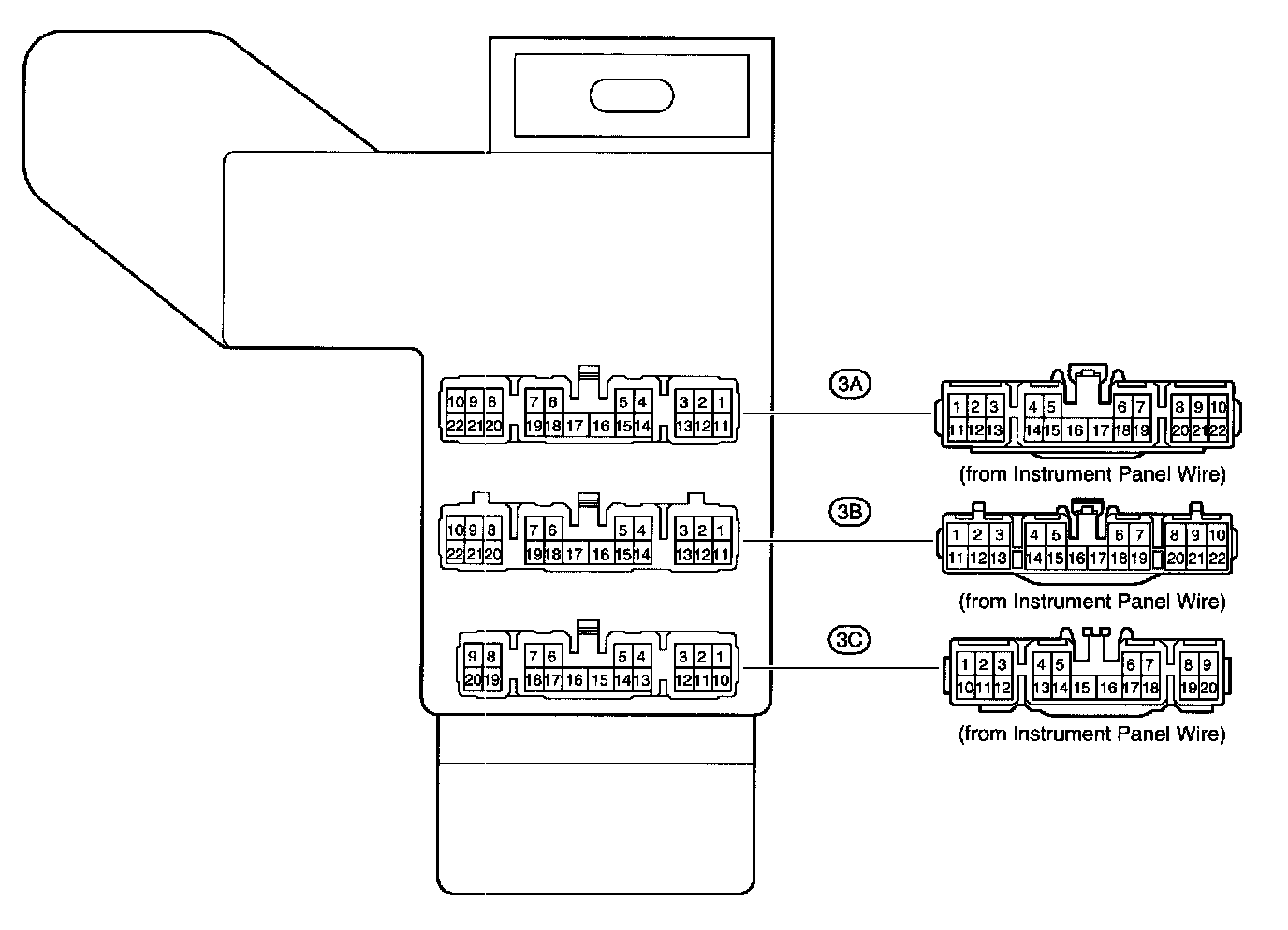

RH R/B, J/B - Right Side Of The Instrument Panel Reinforcement:

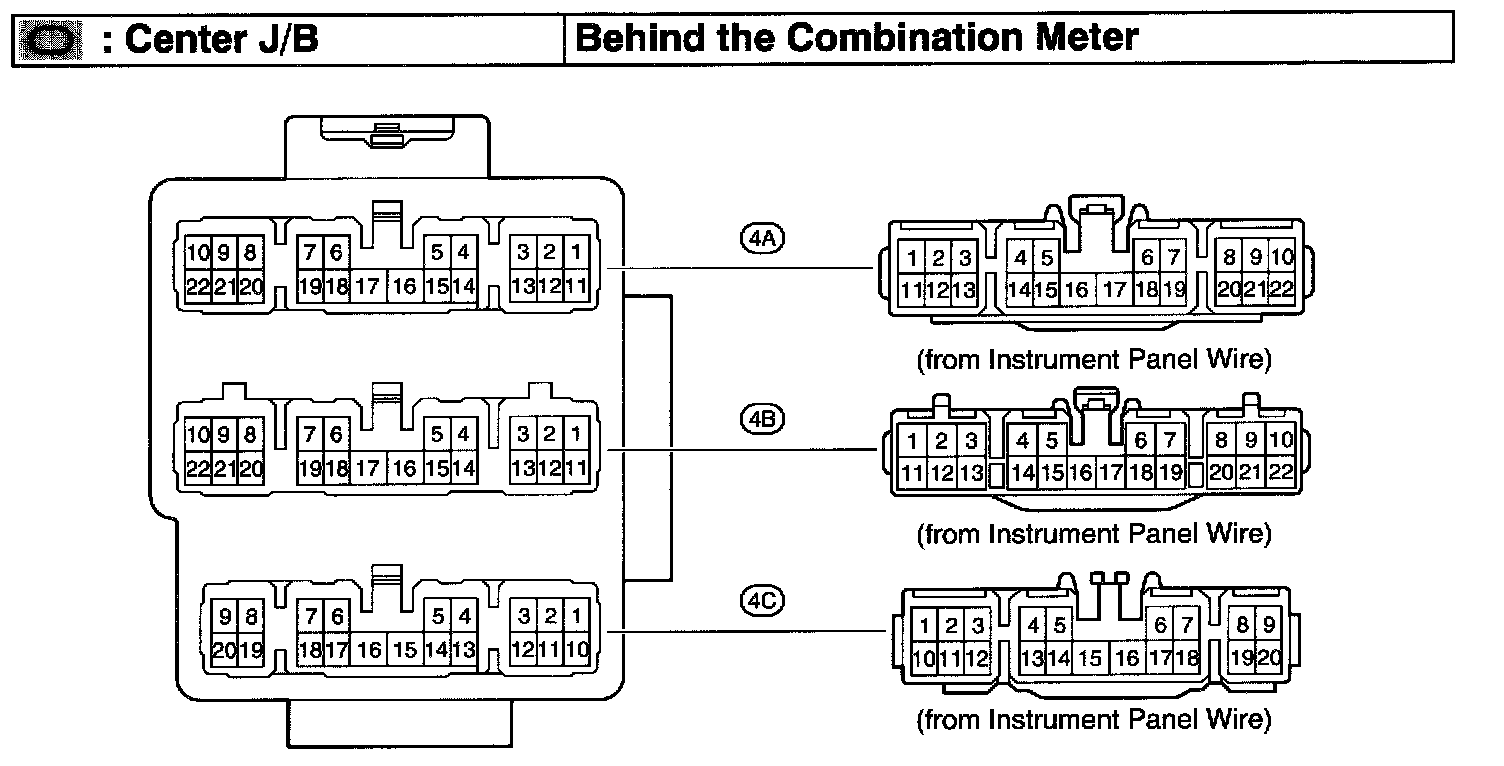

Center J/B - Behind The Combination Meter:
