Component Test

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1991 Toyota.

AI Repair Guides
1. Unplug the EFI Main Relay from the fuse panel.
2. Using an Ohmmeter, check for continuity between terminals 1 and 3.

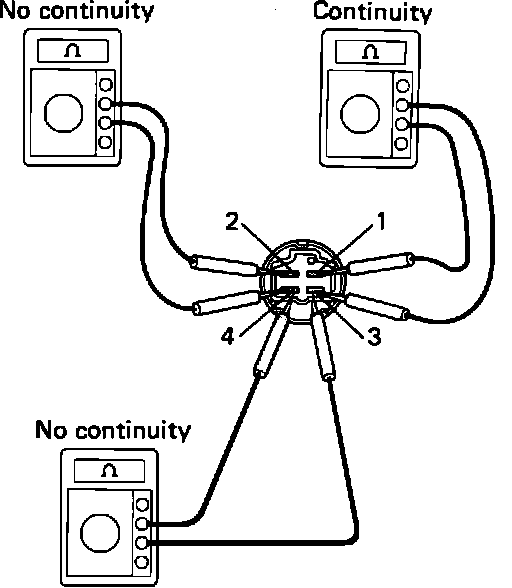

Testing EFI Relay:






3. Check that there is NO continuity between terminals 2 and 4 or terminals 3 and 4.
4. If not as specified, replace the EFI Main Relay.
5. Apply battery current across terminals 1 and 3.

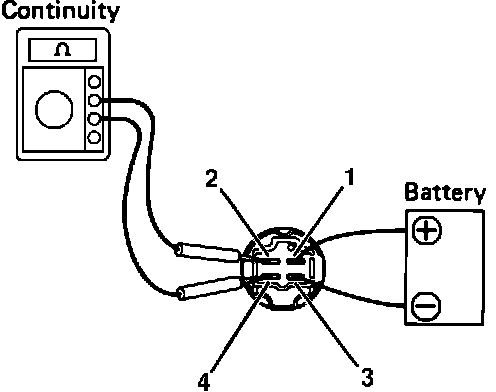

Testing EFI Relay Operation - Current Applied:






6. Using an Ohmmeter, check for continuity between terminals 2 and 4.
7. If operation is not as specified, replace the EFI Main Relay.
8. Remove the battery leads and reinstall the relay.

NOTE: Refer to ECU POWER SUPPLY for circuit test of the EFI Main Relay.
