Removal and Installation

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.

AI Repair Guides

REMOVAL

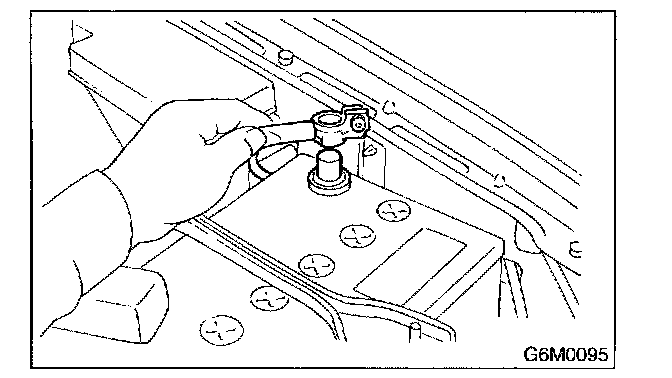

1. Disconnect battery ground cable.

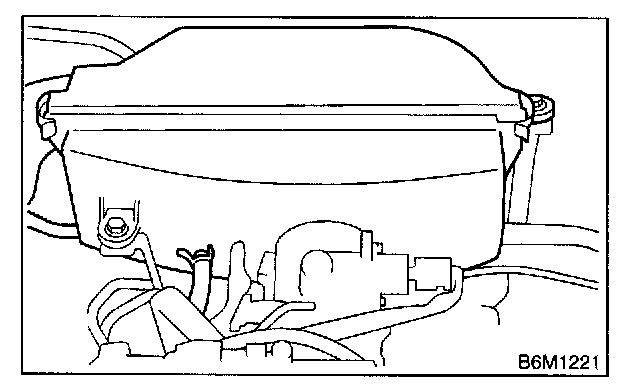

2. Remove air cleaner case.

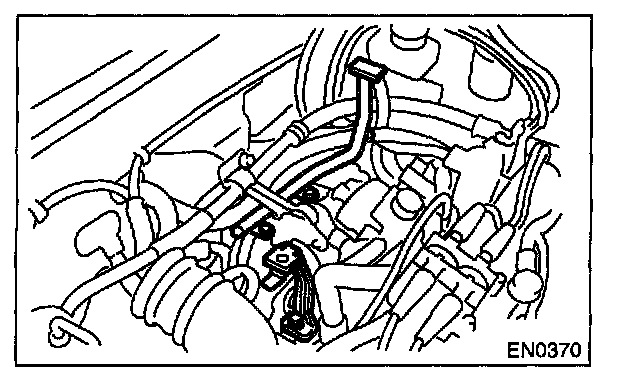

3. Remove air cleaner case stay.
- MT vehicles




- AT vehicles

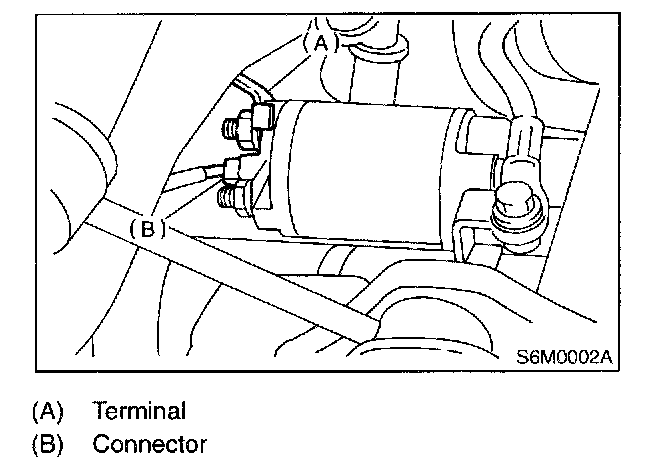

4. Disconnect connector and terminal from starter.

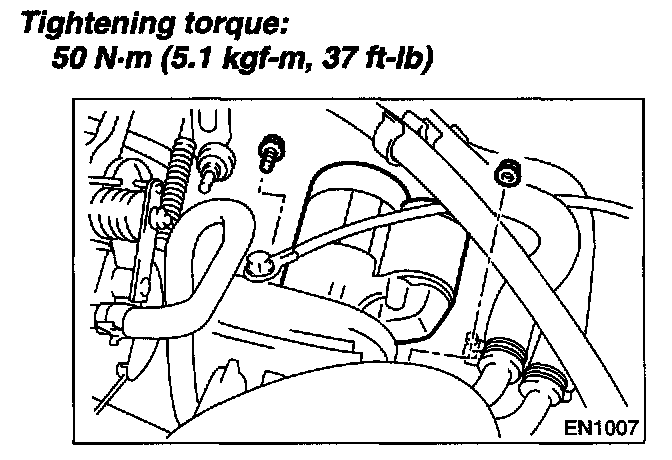

5. Remove starter from transmission.

INSTALLATION




Install in the reverse order of removal.
