4-SPD A/T

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.

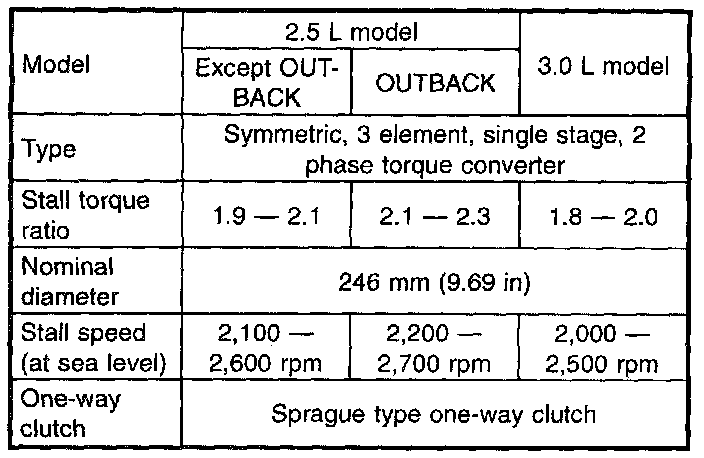

Torque Converter Clutch

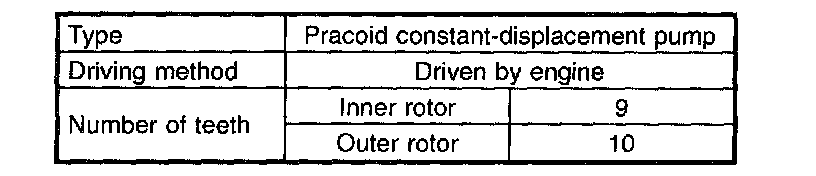

Oil Pump

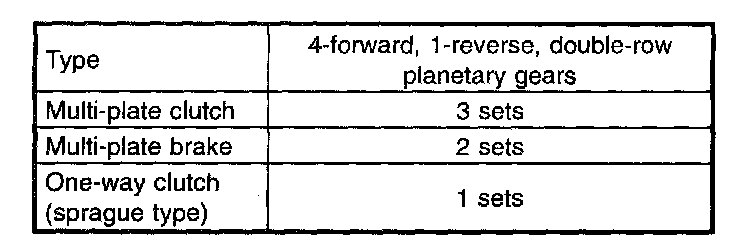

Transmission Control Element

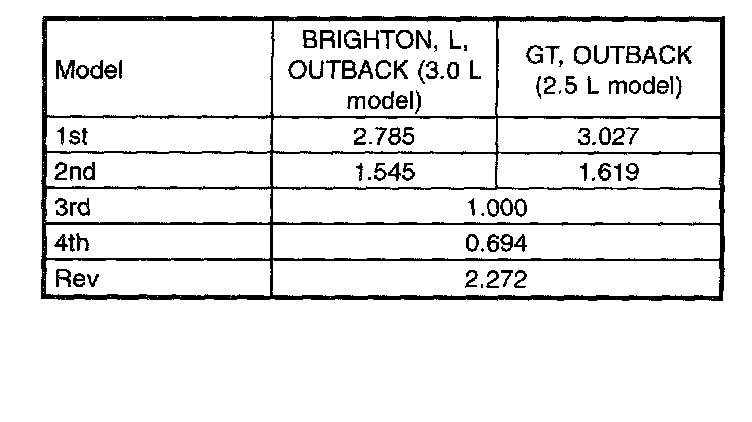

Transmission Gear Ratio

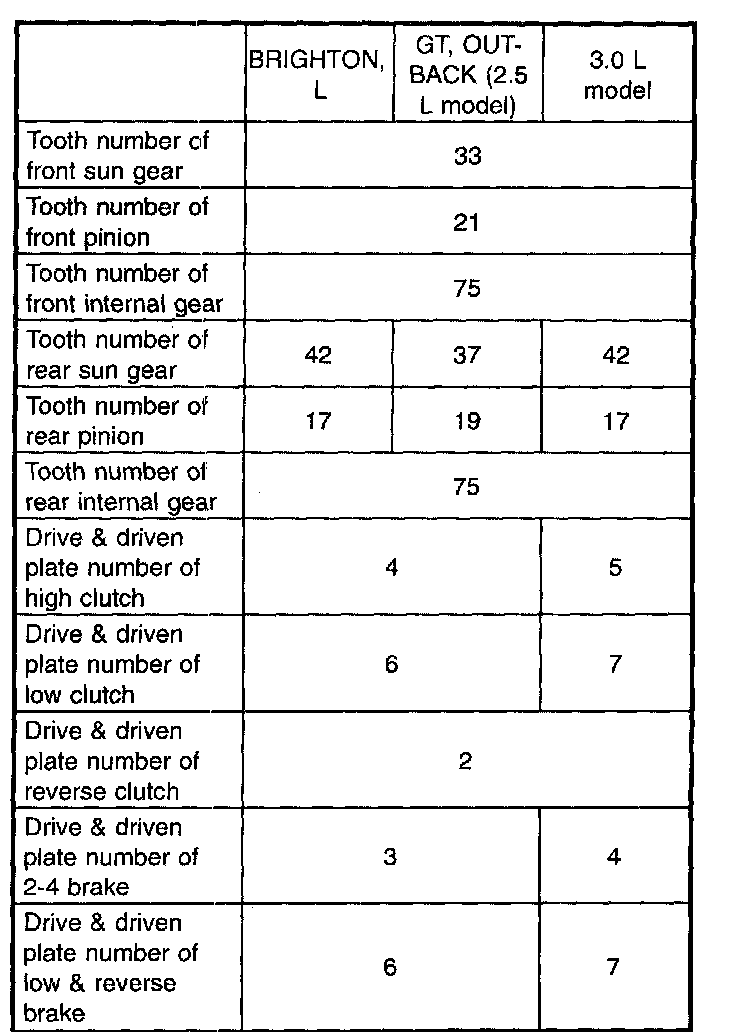

Planetary Gear and Plate

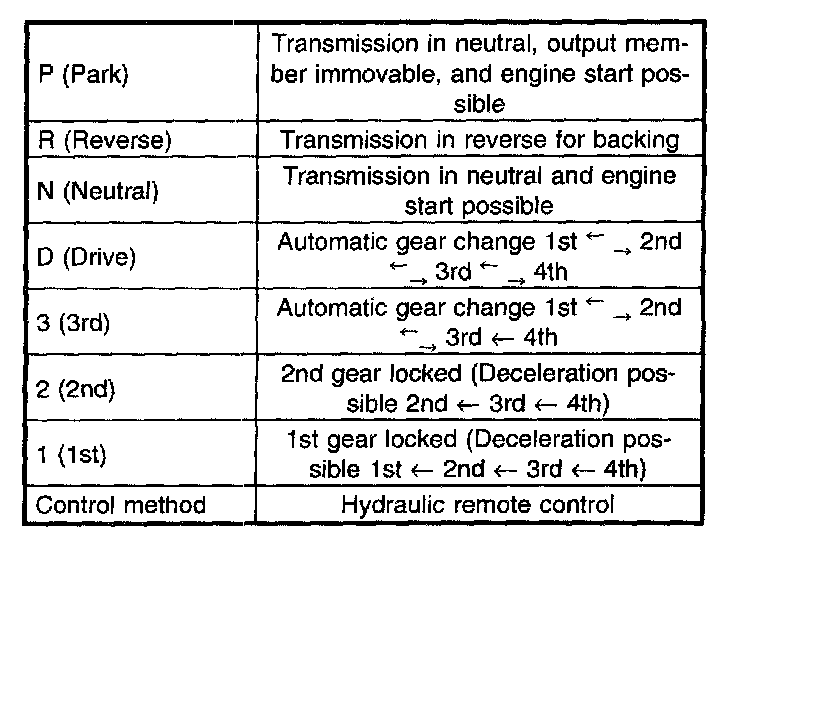

Selector Position

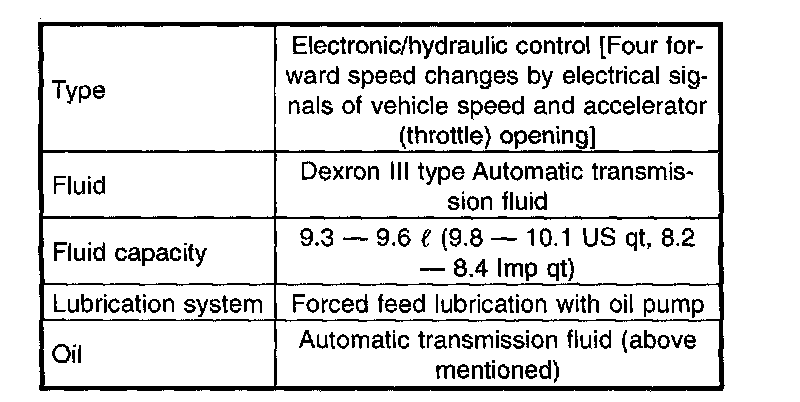

Hydraulic Control and Lubrication

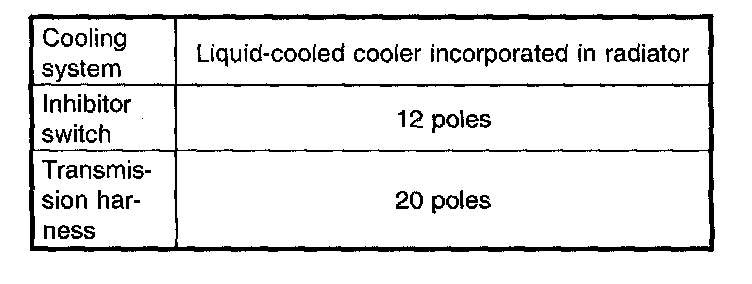

Cooling and Harness

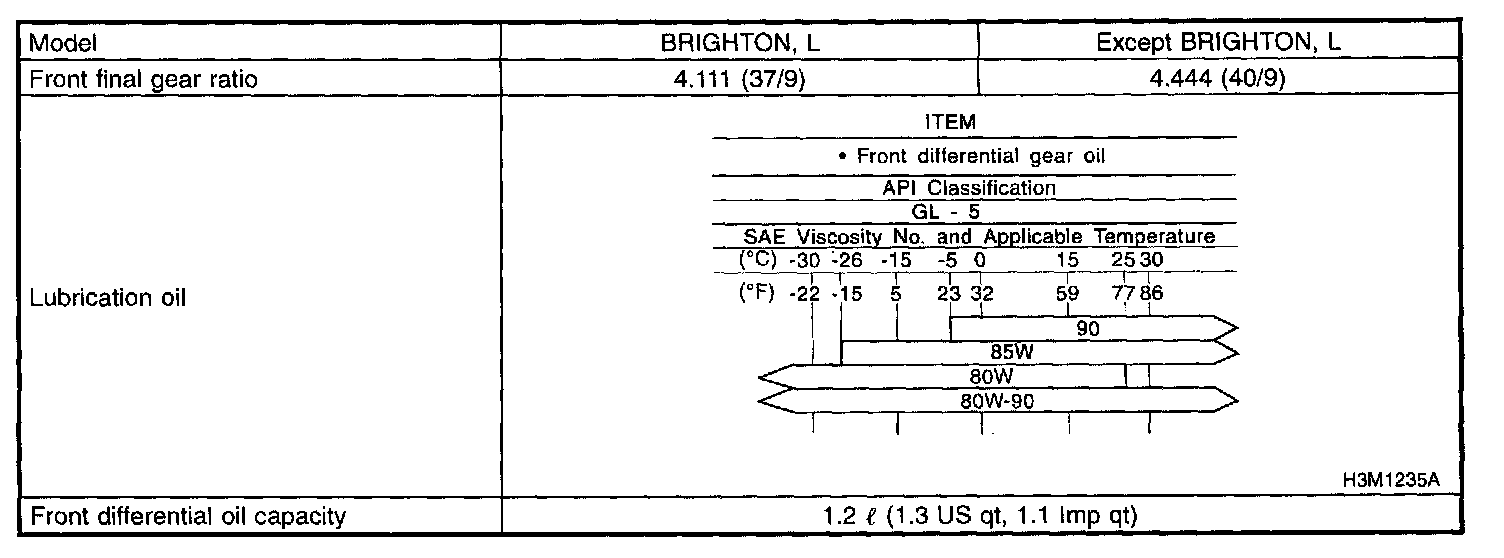

Final Reduction

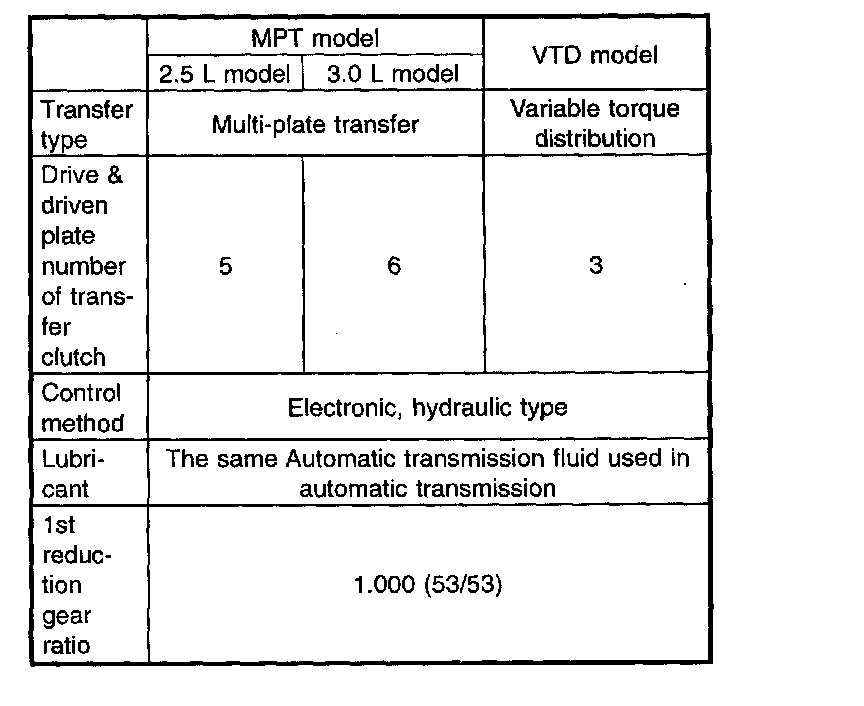

Transfer
