INSPECTION

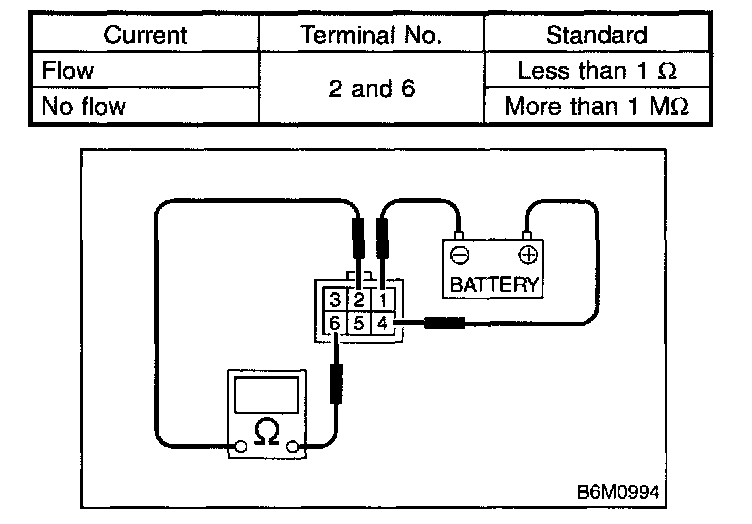

Measure the interrupt relay resistance between terminals (indicated in the table) while connecting terminal No.4 to battery positive terminal and terminal No.1 to battery ground terminal.
If NG, replace the interrupt relay.
Ignition Shut Down Relay (For Antitheft): Testing and Inspection
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.
INSPECTION
Measure the interrupt relay resistance between terminals (indicated in the table) while connecting terminal No.4 to battery positive terminal and terminal No.1 to battery ground terminal.
If NG, replace the interrupt relay.
