STARTER MOTOR CIRCUIT

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

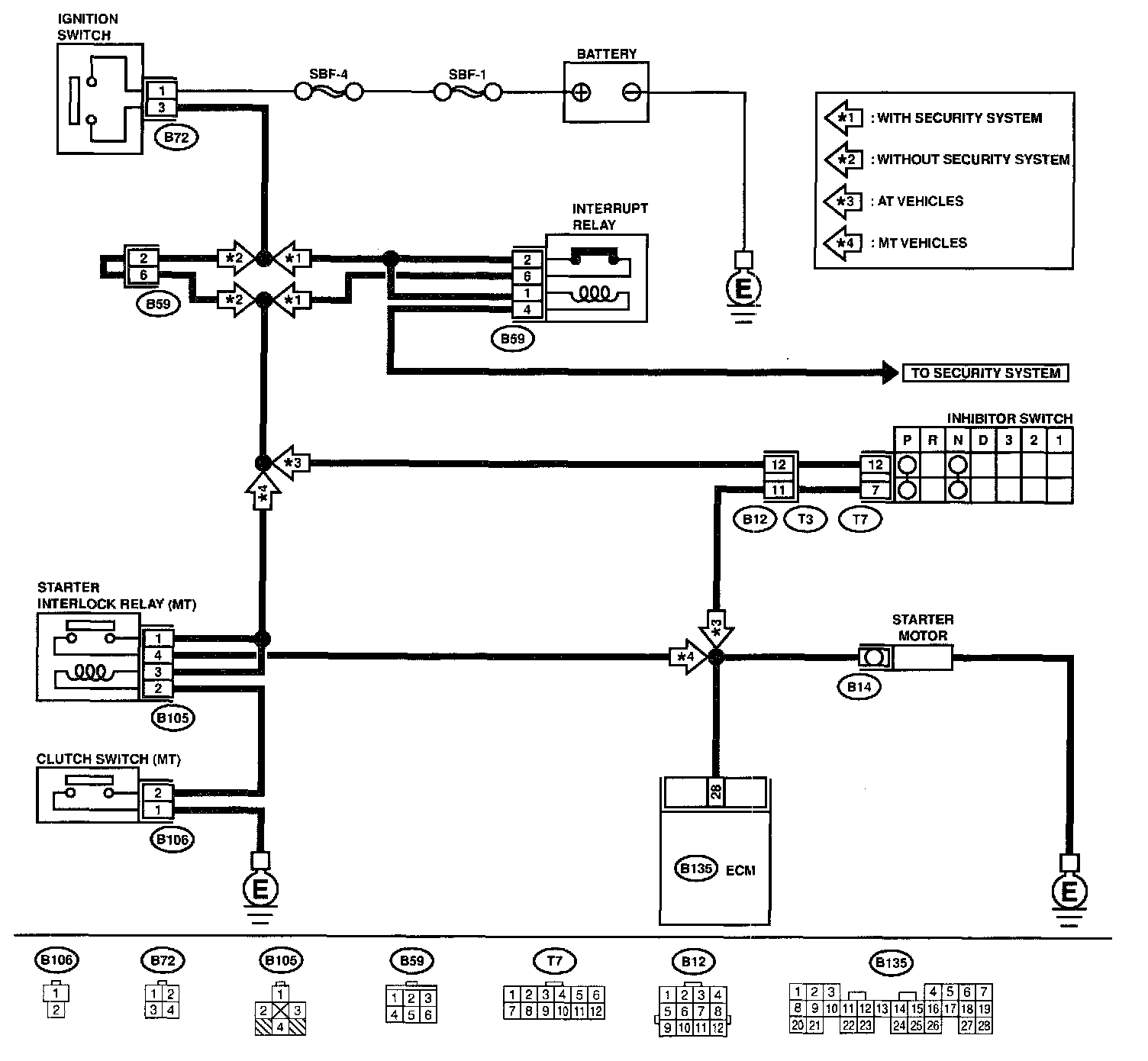

Wiring Diagram:




WIRING DIAGRAM

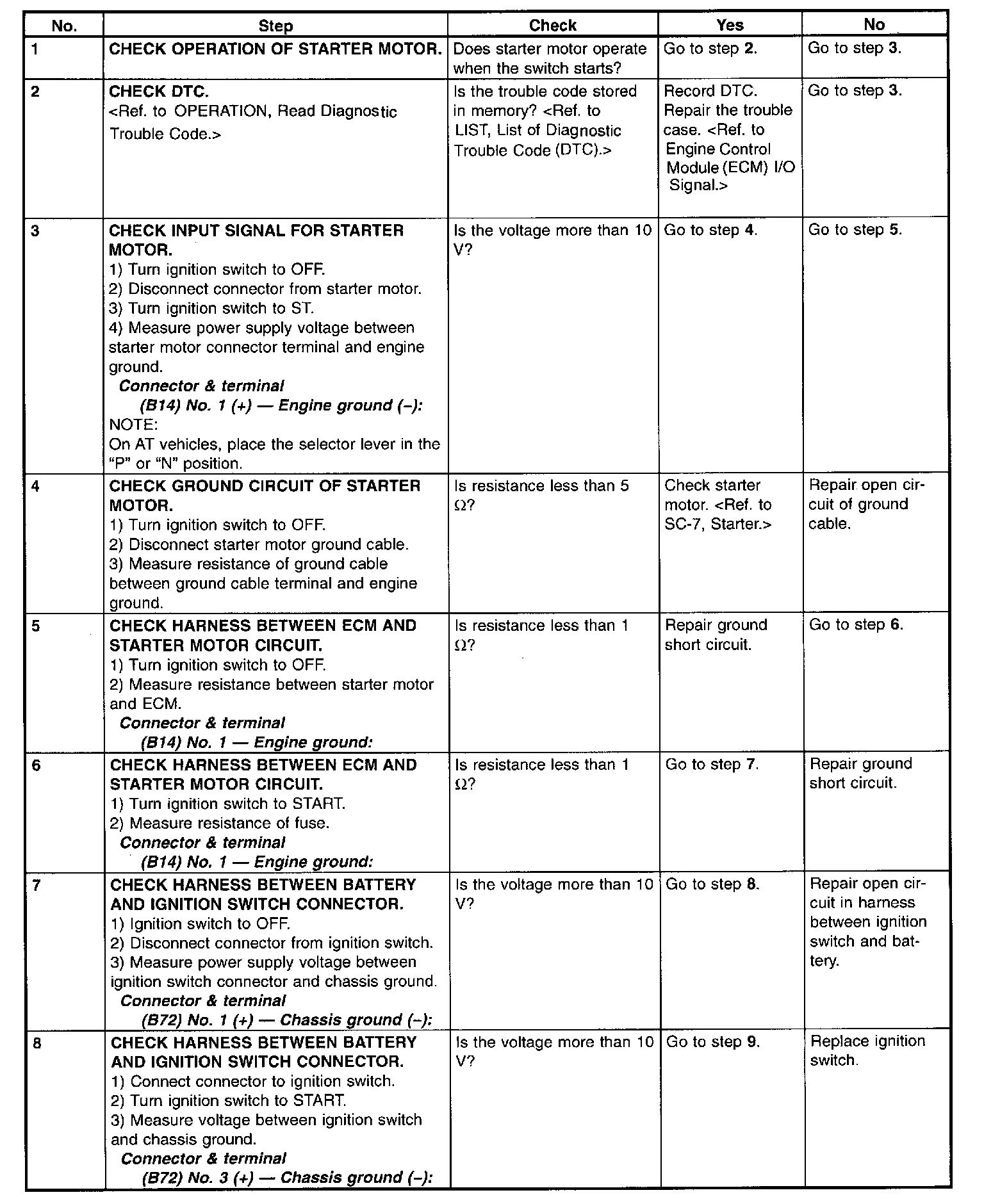

Step 1 - 8:

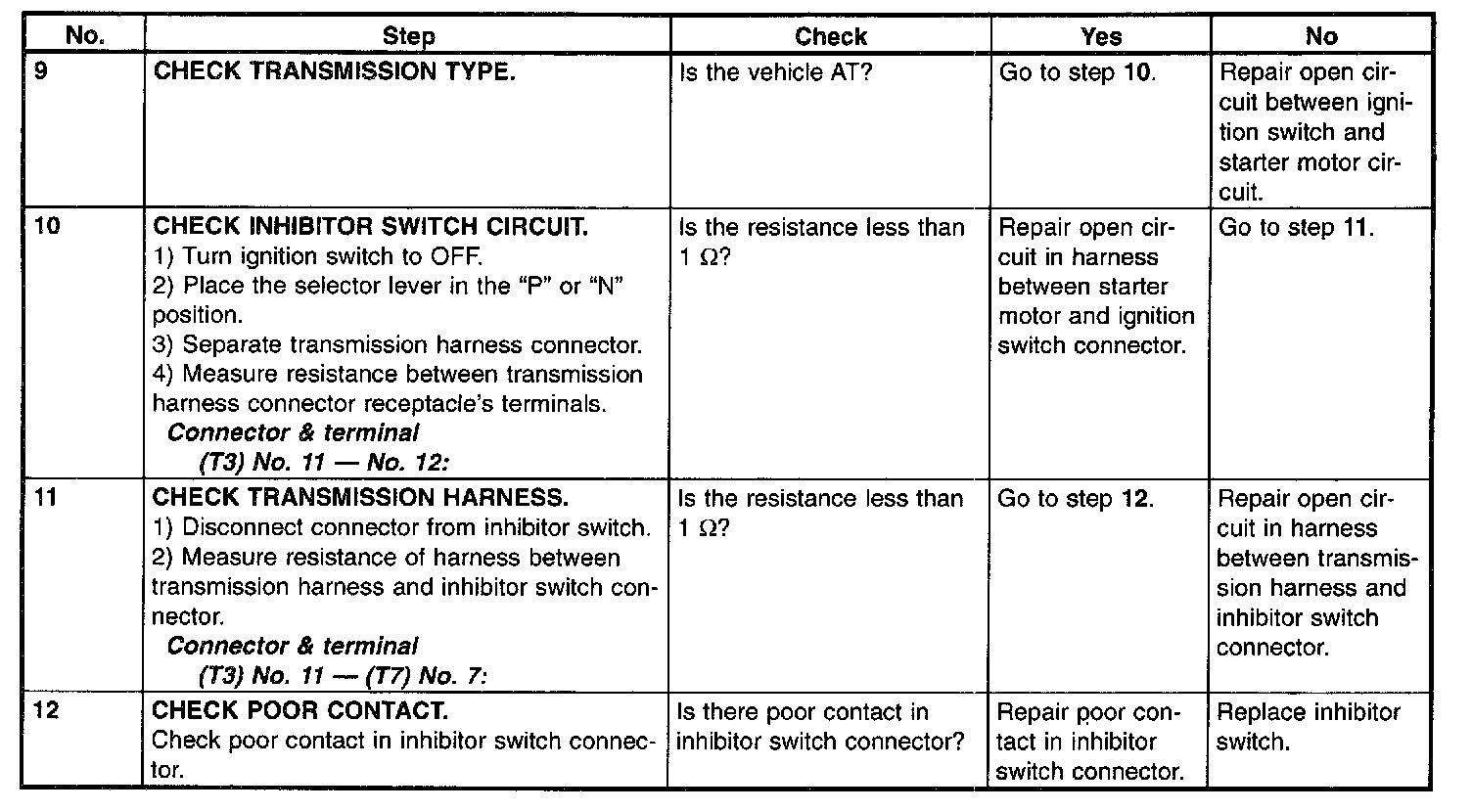

Step 9 - 12:
