CONTROL MODULE POWER SUPPLY AND GROUND LINE

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

Wiring Diagram:

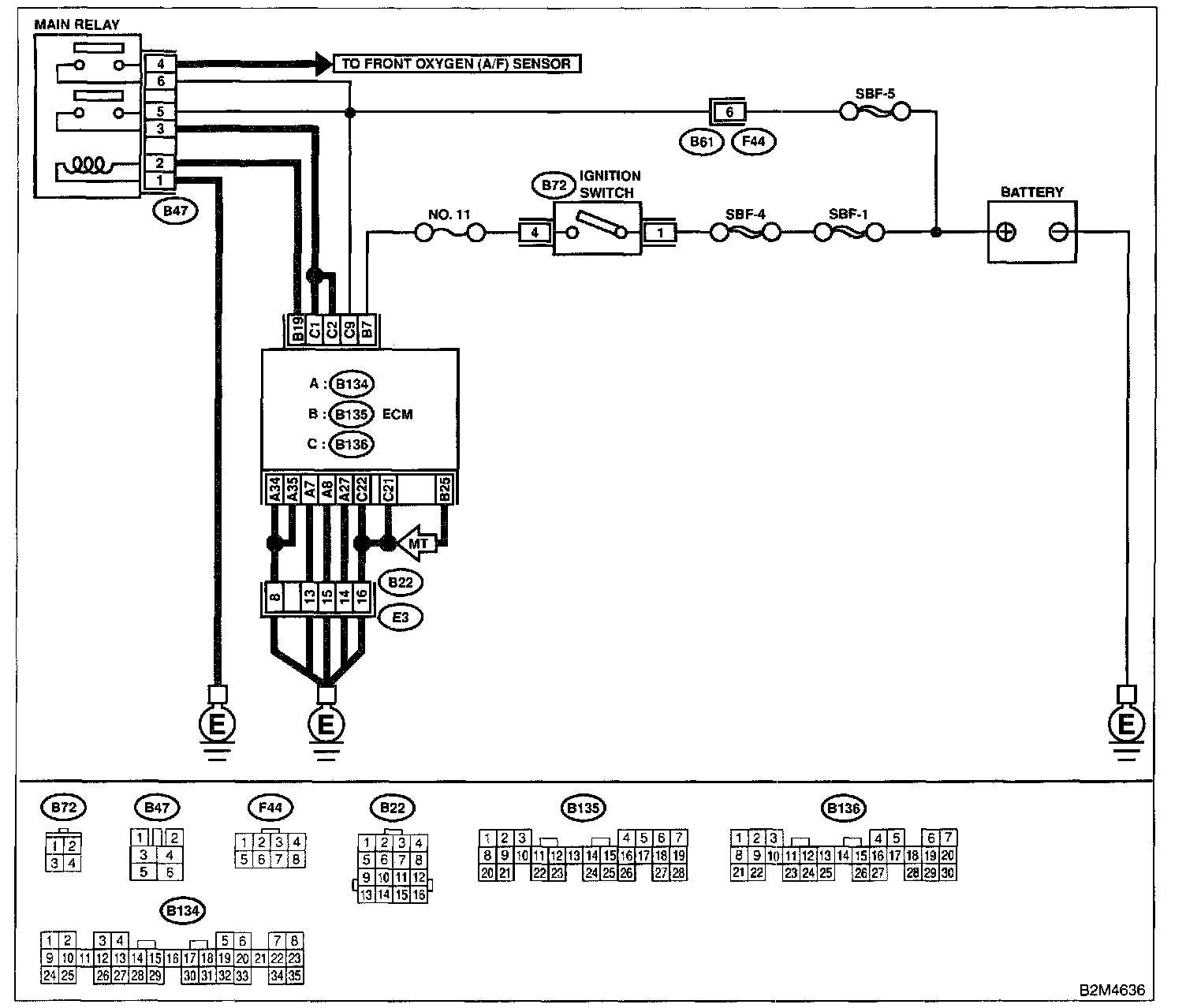

WIRING DIAGRAM

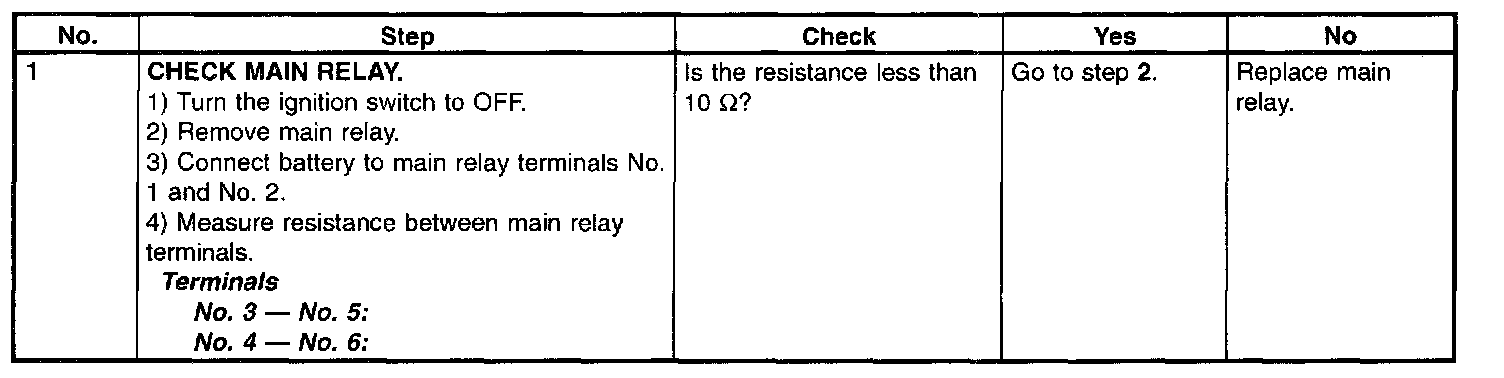

Step 1:

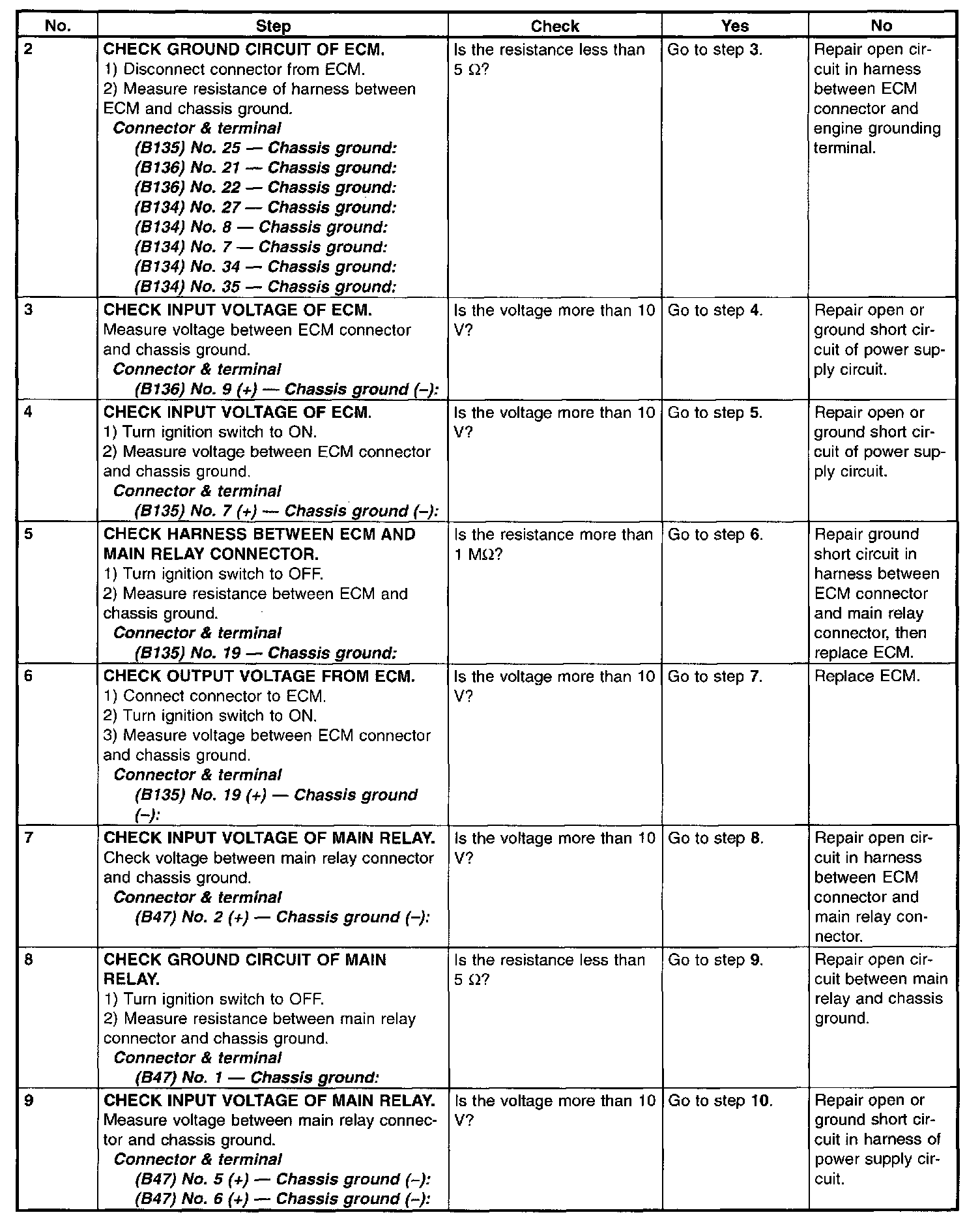

Step 2 - 9:

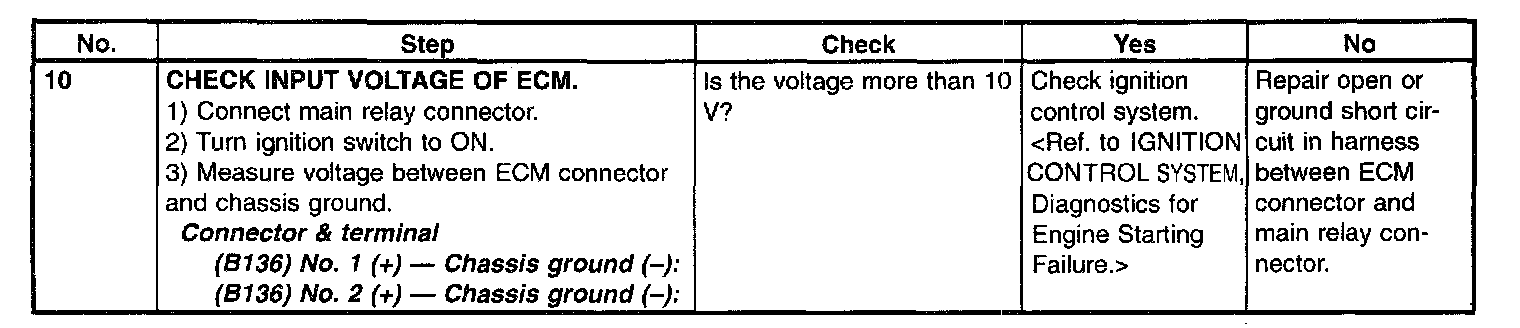

Step 10:
