Data Link Connector: Diagrams

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2002 Subaru.

NOTE

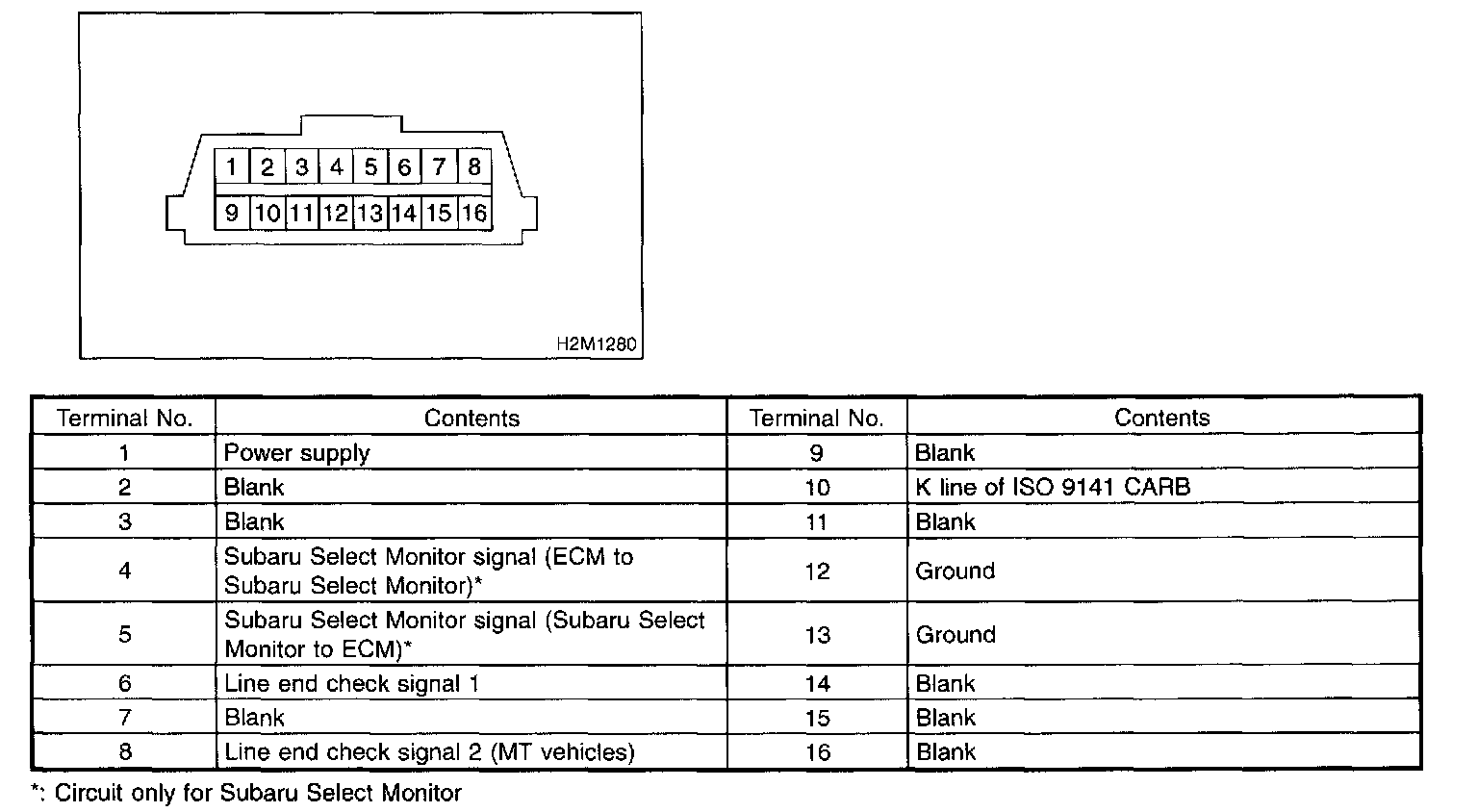

1. This connector is used both for OBD-II general scan tools and the Subaru Select Monitor.
2. Terminal No.4 to No.6 of the data link connector is used for the Subaru Select Monitor signal.

CAUTION: Do not connect any scan tools other than the OBD-II general scan tools and the Subaru Select Monitor, because the circuit for the Subaru Select Monitor may be damaged.
