Rear Combination Light Assembly

REMOVAL
1. Disconnect ground cable from battery.

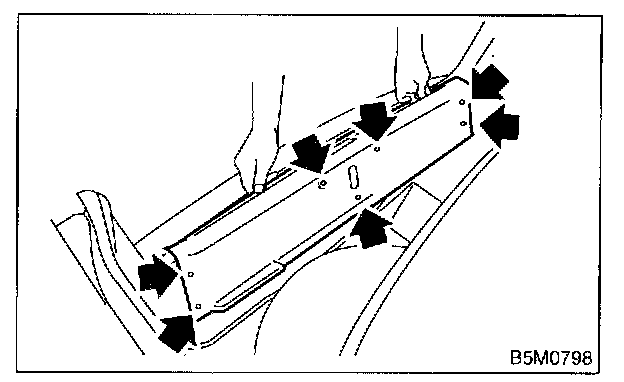

2. Remove clips and then detach trunk rear trim.

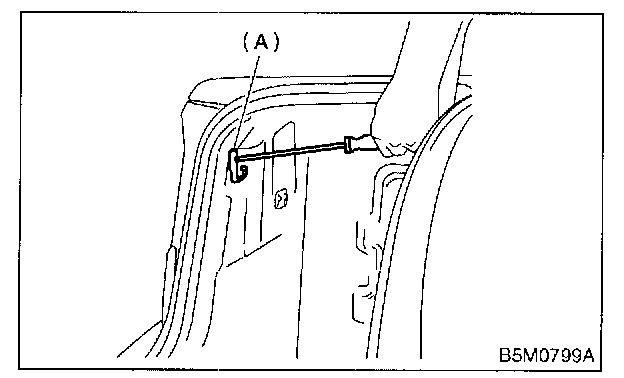

3. Remove hook (A) and then turn over rear portion of trunk side trim.

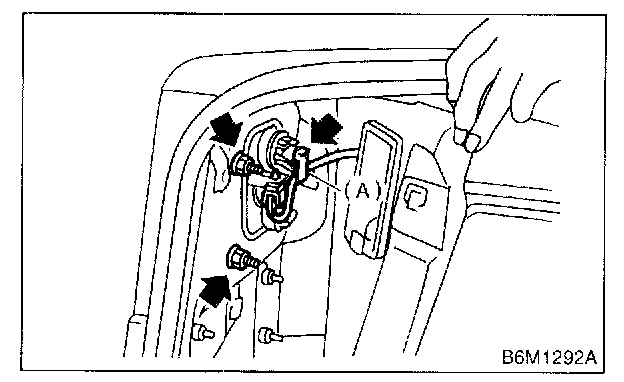

4. Remove harness clip (A).
5. Remove three nuts and then detach rear combination light white disconnecting connector.

INSTALLATION
Install in the reverse order of removal.
